506 (590-506-100) - Cub Cadet 48" Mulching Kit for 3000 Series Mowers Mulching Attachment - 48" Series 3000 Deck Parts Diagram

48" Mulching Kit for 3000 Series Mowers

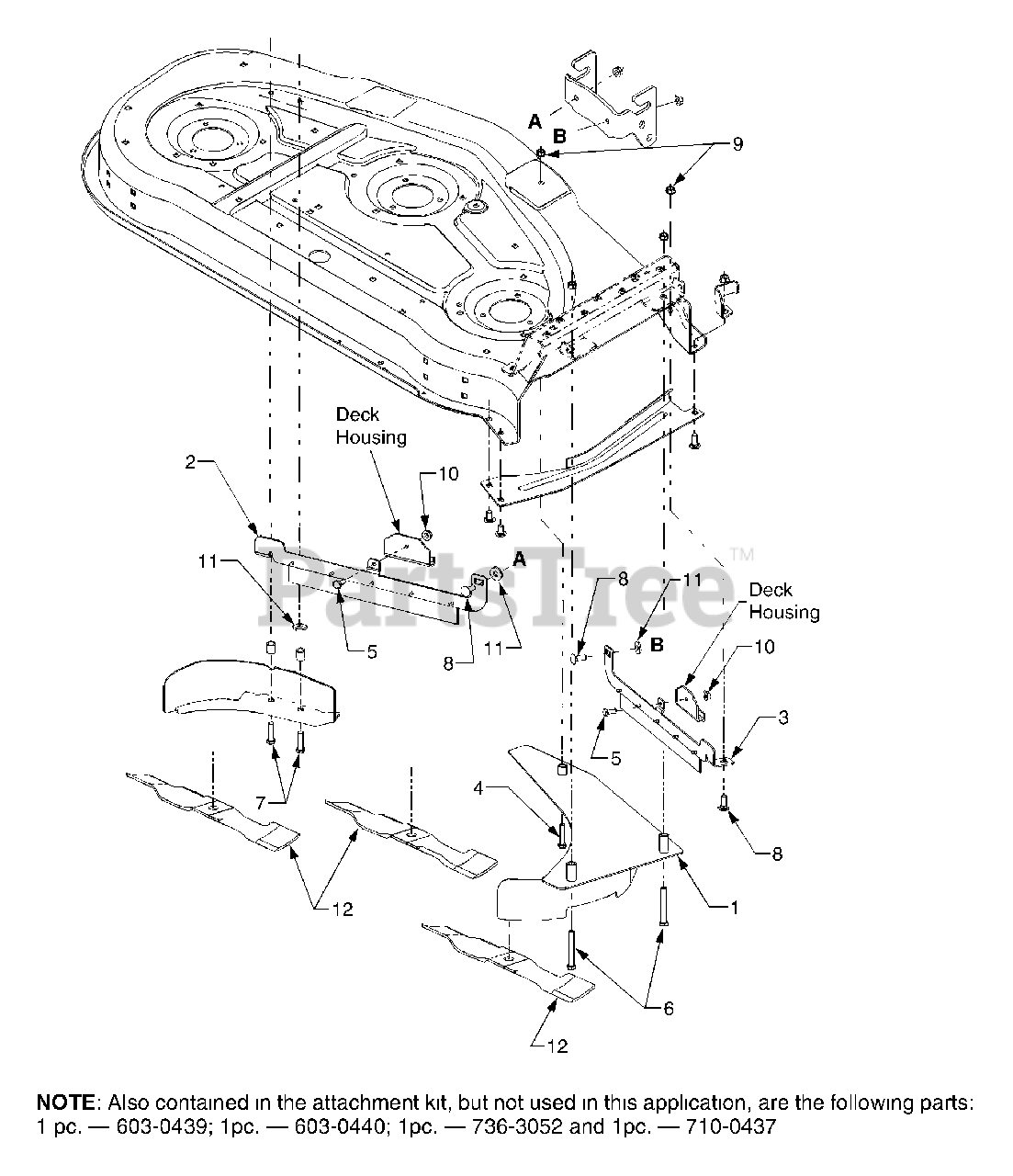

Mulching Attachment - 48" Series 3000 Deck Parts Diagram

  • Title
1

Cub Cadet 603-0395

Baffle Ass'y, 48" Mulching
(Superseded to 603-0395-0637)

Variations

Cub Cadet 603-0395-0498

USE 603-0395-0637 BAFFLE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0395-0637

BAFFLE ASSY-48 MUL - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0625

Bracket Ass'y, Rubber Flap/Mtg LH

Note: Ordered separately from kit

$

$

Not available

3

Cub Cadet 603-0624

Bracket Ass'y, Rubber Flap/Mtg RH

Note: Ordered separately from kit

$

$

Not available

4

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 x 2-1/4 GR5

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1-3/4 GR5

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

Note: Ordered separately from kit

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 736-3052

Washer, Flat, .406 X 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 742-3028

Blade, Mulching, 16.5 Lg
(Superseded to 759-3856)

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0439

Bracket Ass'y, Flap LH

Note: Contained in the attachment kit but not used in this application.

Variations

Cub Cadet 603-0439-0498

USE 603-0439 BRACKET ASSY-W/F - OLD CUB YELLOW (0498)

$186.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0439-0637

USE 603-0439 BRACKET ASSY-W/F - POWDER BLACK (0637)

$186.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0440

Bracket Ass'y, Flap RH

Note: Contained in the attachment kit but not used in this application.

Variations

Cub Cadet 603-0440-0637

USE 603-0440 BRACKET ASSY-W/F - POWDER BLACK (0637)

$183.99

$

Usually ships in 3-6 days

0

$183.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-3052

Washer Flap

Note: Contained in the attachment kit but not used in this application.

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0437

Link Chain Adj

Note: Contained in the attachment kit but not used in this application.

$

$

Not available
