50578 - Gravely 50" Deck for GEM Tractor MOWER DRIVE ASSEMBLY 50" Parts Diagram

50" Deck for GEM Tractor

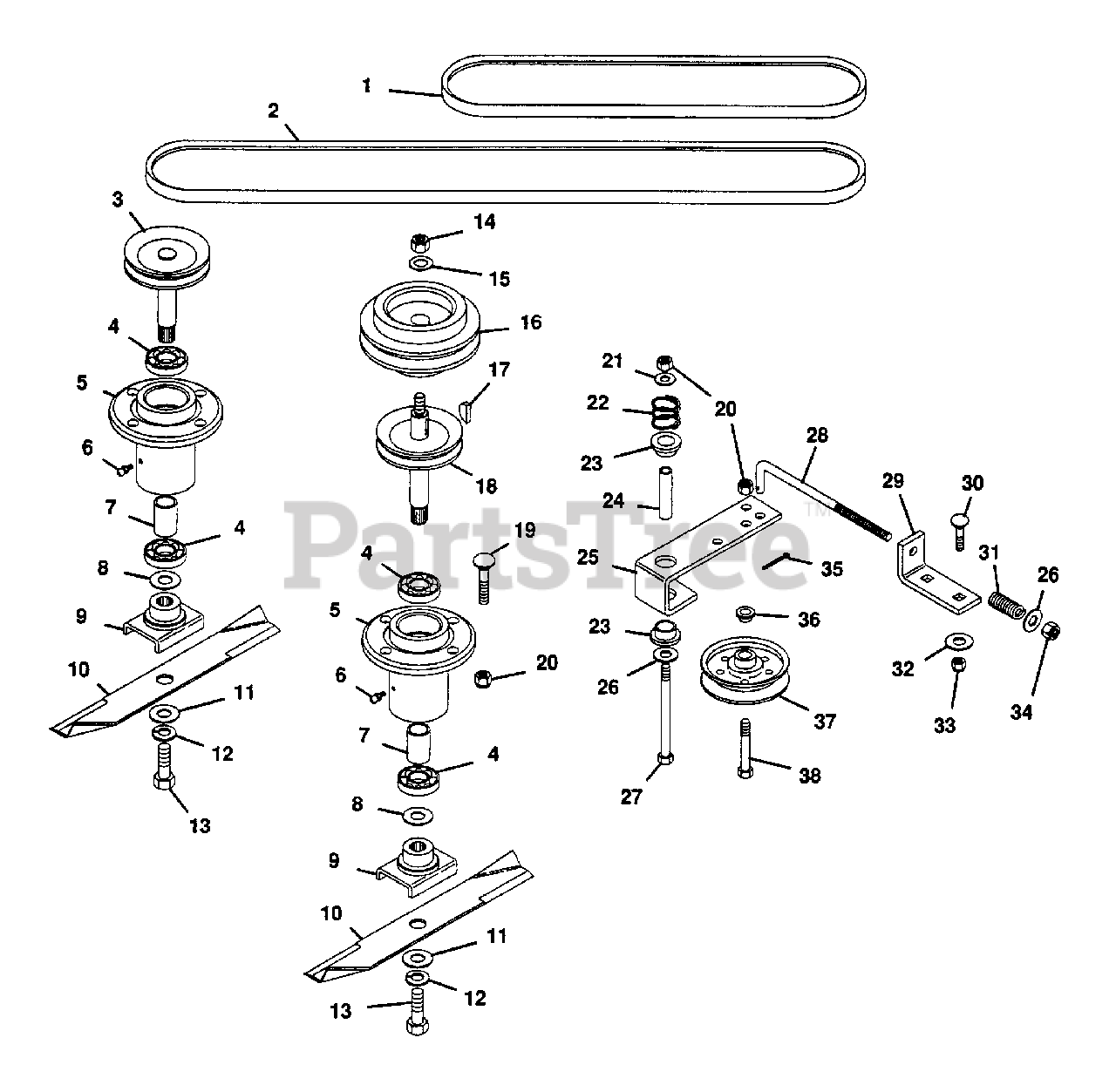

MOWER DRIVE ASSEMBLY 50" Parts Diagram

  • Title

1

Gravely 051261

Belt, Mower Drive
(Superseded to 07209600)

$33.99

$

Usually ships in 4-12 days

0

2

Gravely 051259

Belt, Mower
(Superseded to 07223300)

$

$

Not available

3

Gravely 051254

Weldment, Spindle
(Superseded to 03344300)

$

$

Not available

4

Gravely 019072

Bearing, Ball .984x2.047x.590
(Superseded to 05421500)

$13.99

$

In Stock, only 3 left!

0

5

Gravely 049091

Housing, Spindle
(Superseded to 03340500)

$

$

Not available

6

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 048699

Bush., St. 1.00x1.25x1.58 Stl.
(Superseded to 03487100)

$

$

Not available

8

Gravely 020743

Washer, Flat .975x1.970x.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 9

0

9

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

10

Gravely 011234

Blade
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

11

Gravely 033845

Wshr, Flat .687x1.312x.122/.146
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 121574

Washer, Lock 5/8 SP
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 271715

Bolt, Hex 5/8-11x1.25
(Superseded to 05971600)

$

$

Not available

14

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 051258

Sheave, Driven
(Superseded to 03344700)

$

$

Not available

17

Gravely 218211

Key, Woodruff .250x.75 Hard
(Superseded to 06601200)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 051256

Weldment, Driver Shaft
(Superseded to 03344500)

$

$

Not available

19

Gravely 126411

Bolt, 3/8-16x1.50 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

21

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 020444

Spring, Comp. 1x.80x36Lb/In
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

23

Gravely 010174

Bush., Flg. .764x1.47x.560 Ny.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 034938

Bush., St. .437x.750x2.44 Stl.
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 191249

Bolt, Hex 3/8-16x3.75
(Superseded to 05959500)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 021112

Rod, Idler
(Superseded to 03351200)

$

$

Not available

29

Gravely 051367

Bracket, Idler Rod
(Superseded to 03345600)

$

$

Not available

30

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 011779

Spring, Comp. 1x.78x338 Lb/In
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

32

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 192481

Nut, Lock 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

35

Gravely 121224

Pin, Cotter 3/32x1.00

$0.99

$

Usually ships in 4-12 days

0

36

Gravely 014672

Bush., St. .406x.750x.188 Stl.
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

37

Gravely 021060

Sheave, Idler
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

38

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0
