50578 - Gravely 50" Deck for GEM Tractor MOWER DECK ASSEMBLY 50" Parts Diagram

50" Deck for GEM Tractor

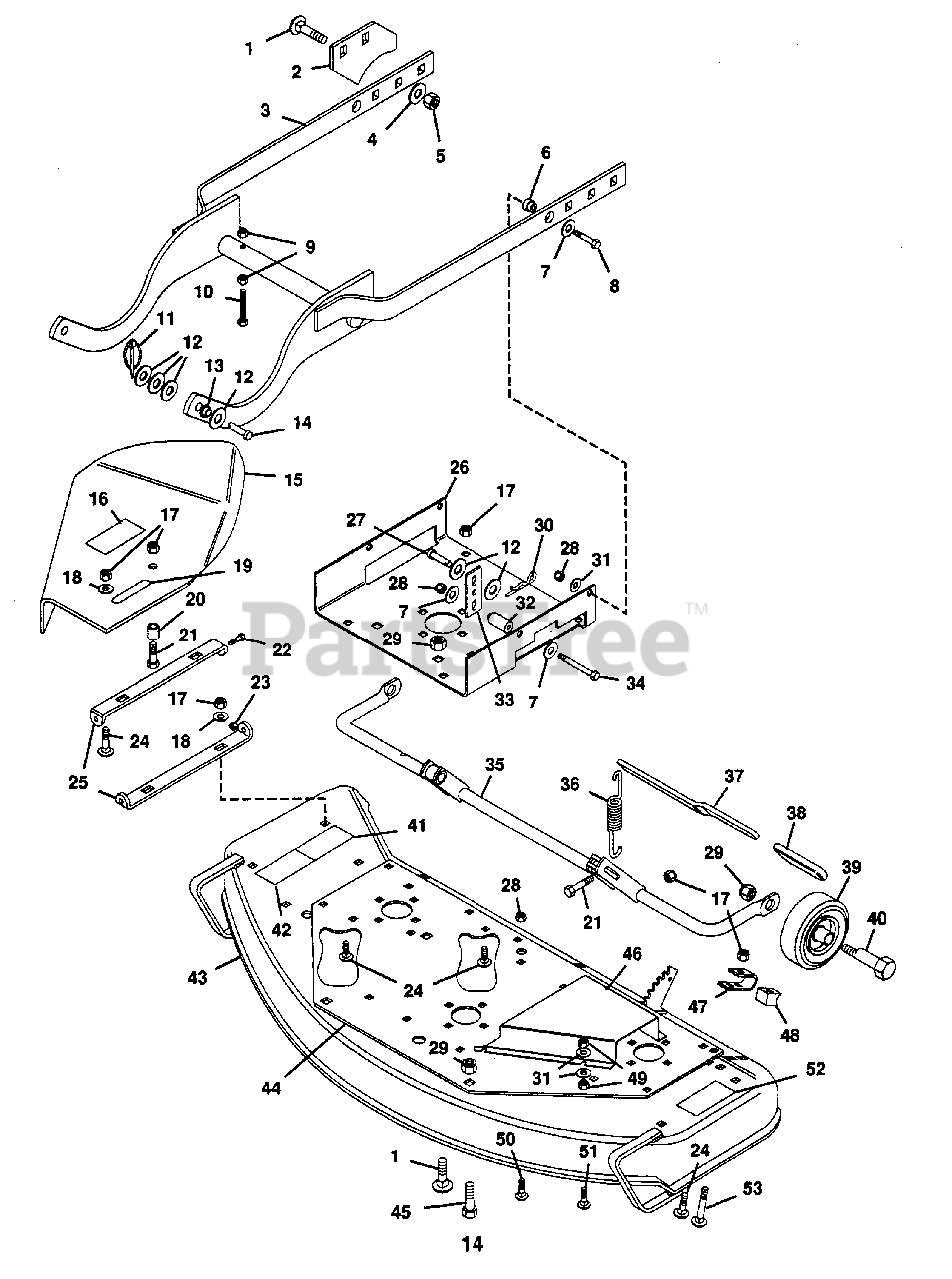

MOWER DECK ASSEMBLY 50" Parts Diagram

  • Title
1

Gravely 126485

Bolt, Carriage 1/2-13x1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 051252

Plate, Cam
(Superseded to 03344100)

$

$

Not available

3

Gravely 051295

Weldment, Drag Arm
(Superseded to 03345200)

$

$

Not available

4

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

5

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 050404

Bush., Flg. .344x1.00x.670 Stl.
(Superseded to 03342600)

$

$

Not available

7

Gravely 446470

Washer, Flat .375x1.125x.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 180082

Bolt, Hex 5/16-18x1.375
(Superseded to 05934500)

$

$

Not available

9

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 049167

Bolt, 5/16-18x2.50 All Thread
(Superseded to 05934700)

$

$

Not available

11

Gravely 023468

Pin, Klik
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 103343

Washer, Flat .531x1.063x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 050144

Bush., Flg. .512x.750x.459 Ny.
(Superseded to 05518000)

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 023682

Pin, Clevis .50x1.330
(Superseded to 06814700)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 038675

Shield, Safety Ext. 50" Mower

$

$

Not available

16

Gravely 035127

Decal, Caution
(Superseded to 07893700)

$17.99

$

Usually ships in 4-12 days

0

17

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 049720

Decal, Width of Cut
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

21

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

22

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 120915

Bolt, 3/8-16x1 Rd Hd Sq Nk

$

$

Not available

25

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

26

Gravely 051359

Channel
(Superseded to 03345500)

$

$

Not available

27

Gravely 049663

Pin, Clevis .50x.875
(Superseded to 06809400)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 015691

Pin, Cotter Hair
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 050405

Bushing, Link
(Superseded to 03342700)

$

$

Not available

33

Gravely 049150

Link
(Superseded to 03340800)

$

$

Not available

34

Gravely 180091

Bolt, Hex 5/16-18x2.50
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 051253

Weldment, Axle
(Superseded to 03344200)

$

$

Not available

36

Gravely 021471

Spring, 40 and 50 Inch Mower
(Superseded to 08329500)

$14.99

$

In Stock, only 2 left!

0

37

Gravely 038990

Lever, Height of Cut
(Superseded to 03499300)

$

$

Not available

38

Gravely 034067

Grip, Handle
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 034426

Wheel, Gauge
(Superseded to 07128800)

$102.99

$

In Stock, only 2 left!

0

40

Gravely 038985

Bolt, Eccentric
(Superseded to 03499200)

$

$

Not available

41

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

42

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

43

Gravely 051302

Weldment, 50" Deck
(Superseded to 03345400)

$

$

Not available

44

Gravely 040201

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

45

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

46

Gravely 051262

Cover, Belt L.H.
(Superseded to 03344800)

$

$

Not available

46

Gravely 051263

Cover, Belt R.H.
(Superseded to 03344900)

$

$

Not available

47

Gravely 011264

Bracket, Axle Support
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

48

Gravely 011260

Stop, Nylon
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

49

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 126216

Bolt, Carriage 5/16-18x.75

$

$

Not available

51

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

53

Gravely 126419

Bolt, 3/8-16x2 Rd Hd Sq Nk
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0
