5054-81 R (218-355-000) - MTD Tiller (1988) Transmission Assembly Parts Diagram

Tiller

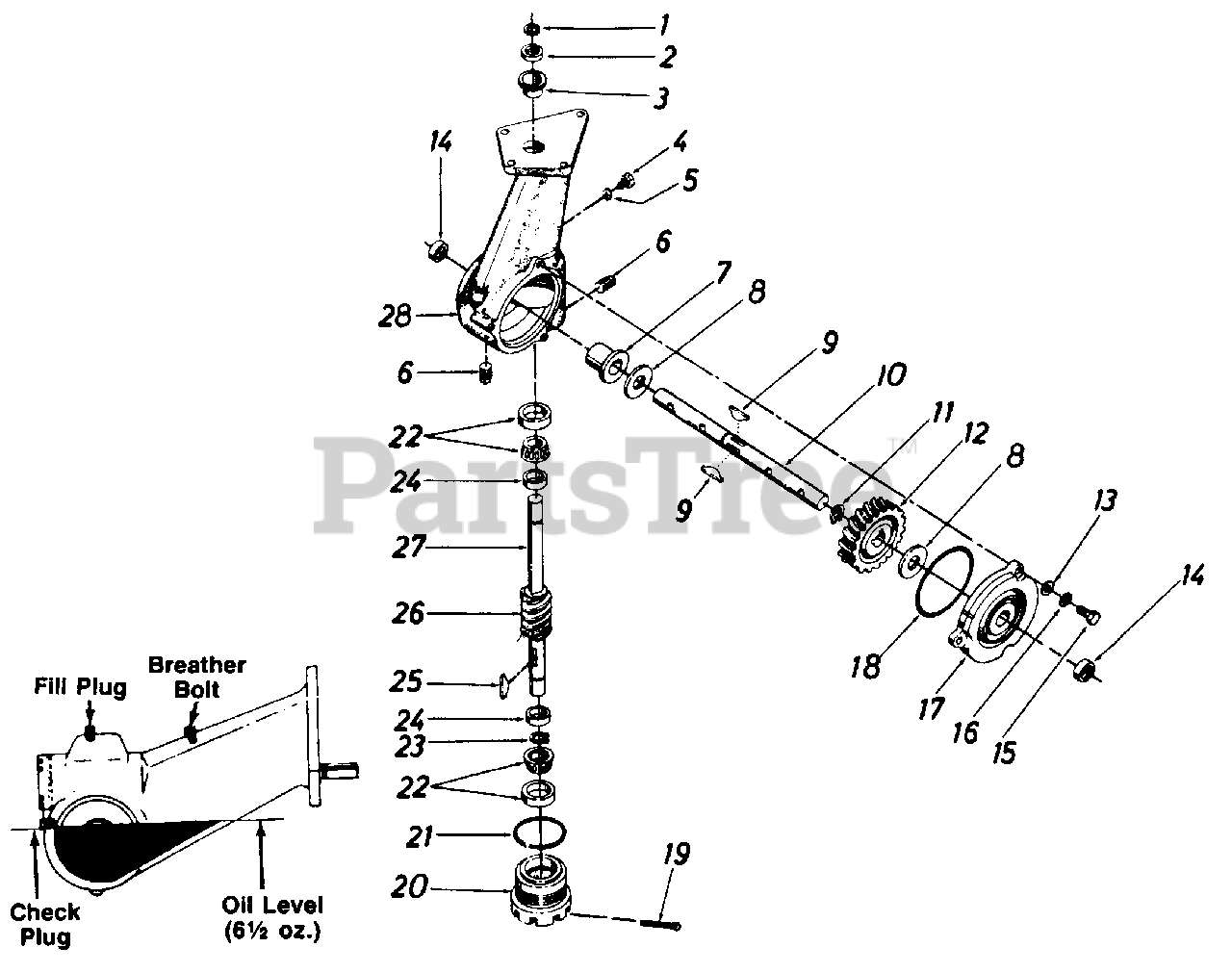

Transmission Assembly Parts Diagram

  • Title
1

MTD 716-0119

Snap Ring .75" Dia. Shaft
(Superseded to 716-3001)

$4.99

$

In Stock, only 1 left!

0

2

MTD 721-0100

Oil Seal .75" Dia. Shaft

$

$

Not available

3

MTD 741-0197

Sleeve Brg. .752" x .878" x 1.0"

$

$

Not available

4

MTD 710-0599

Hex Wash. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0222

External L-Wash. 1/4" l.D.

$5.99

$

In Stock, only 3 left!

0

6

MTD 737-0103

Sq. Hd. Pipe Plug 3/8" Thd.
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

7

MTD 741-0189

Flange Brg. 1.0" l.D.

$

$

Currently unavailable

8

MTD 736-0259

Fl-Wash. 1.0" x 1.62" x .095
(Superseded to 936-0259)

$

$

Not available

9

7140103

#91 Woodruff Key 1/4 x 3/4" Dia.

$

$

Not available

10

MTD 711-0622

Tine Shaft 1.0" Dia.

$

$

Not available

11

MTD 716-0102

Snap Ring-1.0" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

12

MTD 717-0311

Worm Wheel

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 721-0102

Oil Seal Double Lip 1.0" Shaft
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

15

MTD 710-0371

Hex Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

Note: (Plastic Insert)

$4.99

$

In Stock, Qty 11

0

16

MTD 736-0261

Wash.Flat Toothed
(Superseded to 736-0607)

Note: (Special)

$3.99

$

In Stock, Qty 20+

0

17

MTD 741-0188

Bearing Cap with Bearing

$

$

Not available

18

MTD 735-0101

O-Ring 3.62" x 3.88n

$

$

Not available

19

7140474

Coter Pin 1/8" Dia. x ,75n

$

$

Not available

20

MTD 10583

Bearing Adjustment Cap

$

$

Not available

21

MTD 735-0100

O-Ring 2.12" x 2.28"

$

$

Not available

22

MTD 741-0107

Roller Bearing Ass'y. .75 I.D.
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

23

MTD 716-0101

Snap Ring .755" Dia. Shaft

$3.99

$

In Stock, Qty 20+

0

24

MTD 711-0469

Spacer .755 I.D. x 1.265 O.D.

$7.99

$

Usually ships in 3-6 days

0

25

7140126

#9 Hi-Pro Key 3/16 x .75" Dia.

$

$

Not available

26

$

$

Not available

27

MTD 738-0170

Worm Shaft

$

$

Not available

28

MTD 719-0223

Transmission Case

$

$

Not available

MTD 737-0136

E.P. Oil #35000

$

$

Currently unavailable
