505 - Husqvarna Automower Robotic Lawn Mower (2021-01) COVER Parts Diagram

Automower Robotic Lawn Mower

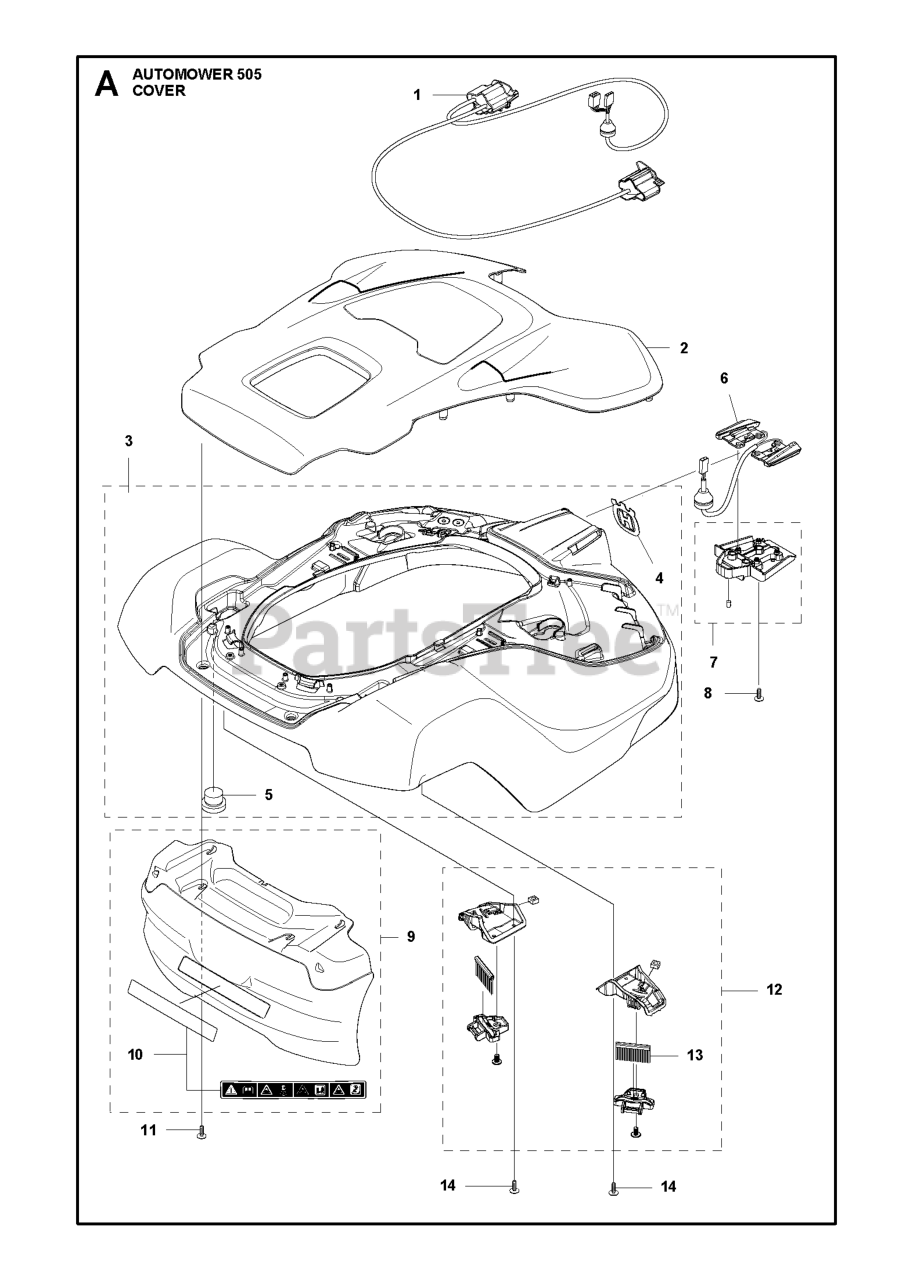

COVER Parts Diagram

  • Title

2

Husqvarna 591496102

NEEDS DESCRIPTION

Note: Cover KIT Top Orange 550

$

$

Currently unavailable

3

Husqvarna 501061102

BODY ASSY

Note: Body KIT

$205.99

$

In Stock, only 1 left!

0

4

Husqvarna 587423501

DECAL HUSQVARNA CROWN HEIGHT 5

Note: Decal Crown

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581982002

WHEEL BRUSH REFILL KIT

Note: Brush, 6 pcs

$

$

Not available

14

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 581903102

BRUSH KIT 430/450

Note: Brush KIT (brackets and brushes, 6 pcs)

$

$

Not available

9

Husqvarna 501065001

BUMPER ASSY

Note: Bumper ASSY

$

$

Not available

7

Husqvarna 501065602

HOLDER ASSY MAGNET

Note: Holder KIT

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 580526801

CAP SNAPLOC

Note: Cap Snaploc

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 591496101

NEEDS DESCRIPTION

Note: Cover KIT Top Robotic Grey 550

$

$

Currently unavailable

10

Husqvarna 586359701

LABEL WARNING P15

Note: Label Warning

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585539204

CABLE ASSY CHARGING PLATE

Note: Charging Plate Wiring

$

$

Not available

1

Husqvarna 588596701

WIRING ASSY ULTRA SONIC SENSOR

Note: Wiring Assy Ultra Sonic 550

$

$

Not available
