505 - Husqvarna Automower Robotic Lawn Mower (2021-01) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

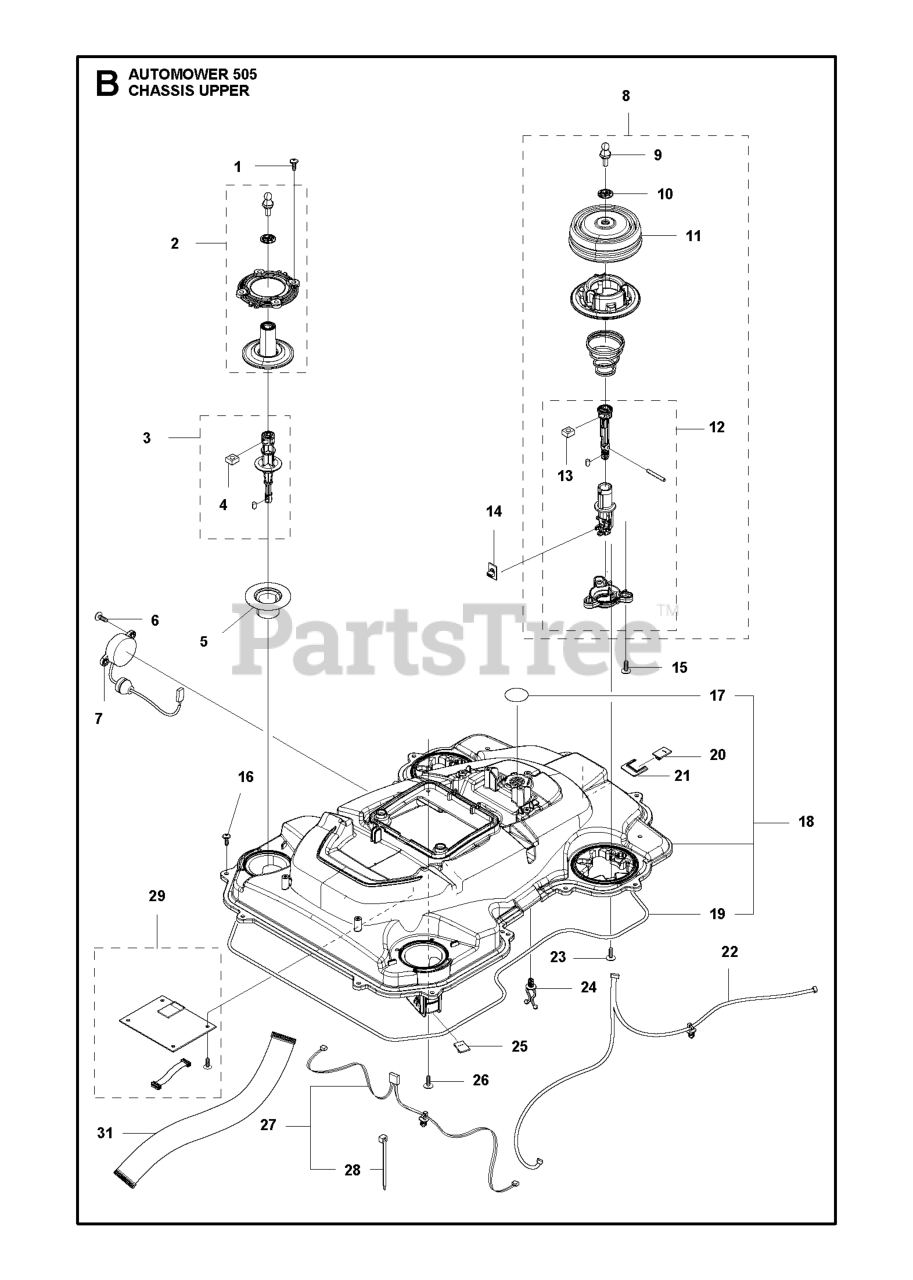

CHASSIS UPPER Parts Diagram

  • Title

23

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579525701

WASHER JOYSTICK

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 587834901

CLIP COLLISION BOARD

Note: Clip

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 579706302

BUZZER ASSY

Note: Buzzer

$26.99

$

Usually ships in 3-10 days

0

29

Husqvarna 586662305

CONNECT MODULE 2G / 3G
(Superseded to 586662311)

Note: Automower Connect KIT

$368.99

$

Usually ships in 3-10 days

0

6

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

17

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter 10 pcs

$51.99

$

Usually ships in 3-10 days

0

5

Husqvarna 535143201

MOVEMENT LIMITER

Note: Deflection Limiter

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, Ø5 mm)

$9.49

$

In Stock, Qty 6

0

18

Husqvarna 581620802

CHASSIS KIT UPPER

Note: Chassis KIT

$62.99

$

Usually ships in 3-10 days

0

31

Husqvarna 579706201

LOOM MMI

Note: Wiring

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501122602

JOYSTICK KIT REAR

Note: Column KIT

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 592852401

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592852401

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 579474601

BELLOWS LIFT-COLLISION

Note: Bellows

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581620903

JOYSTICK KIT

Note: Joystick KIT Front

$68.99

$

Usually ships in 3-10 days

0

24

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 592852301

PRINTED CIRCUIT ASSY PCBA LIFT

Note: PCBA Lift Sensor

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448802

JOYSTICK KIT

Note: Joystick KIT

$22.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501061301

JOYSTICK KIT REAR

Note: Joystick KIT Rear

$26.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581621101

LOOM KIT LIFT SENSOR

Note: Wiring KIT

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 900238708

BAND

Note: Tie Wrap

$

$

Not available

22

Husqvarna 581660901

1OOM KIT COLLISION SENSOR

Note: Wiring

$

$

Not available

9

Husqvarna 580526701

STUD SNAPLOC

Note: Stud

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0
