505 H - Husqvarna Automower Robotic Lawn Mower (2021-01) INSTALLATION ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

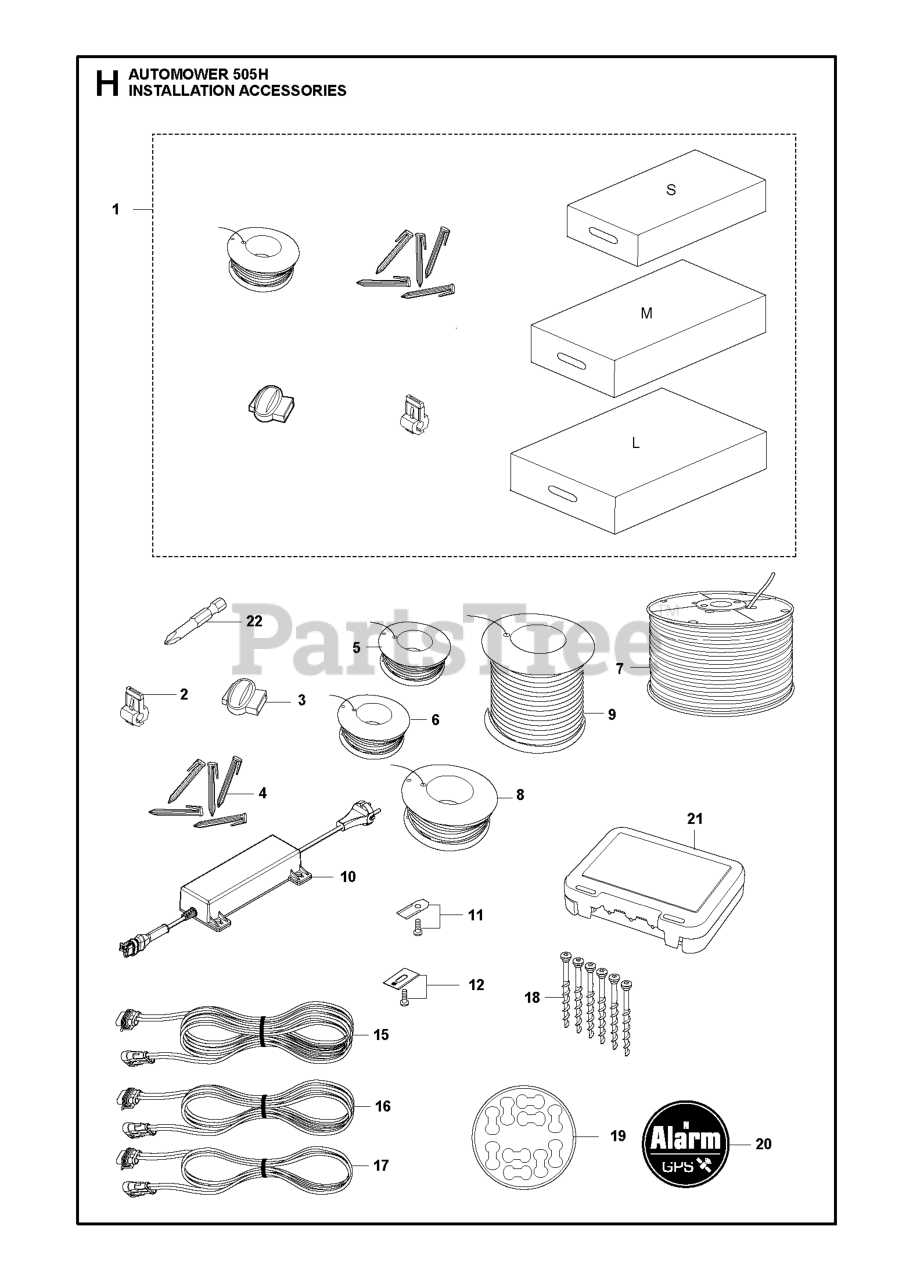

INSTALLATION ACCESSORIES Parts Diagram

  • Title

16

Husqvarna 588765005

CABLE LOW VOLTAGE CABLE P2 5-7

Note: Low Voltage Cable, 10 m

$45.99

$

In Stock, only 2 left!

0

11

Husqvarna 577606604

HUS BLADE SET 300 PCS
(Superseded to 596287302)

Note: Long Life Safety Blade, 300 pcs

$

$

Not available

20

Husqvarna 594054801

Decals

Note: Label Alarm

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588765006

CABLE LOW VOLTAGE CABLE P2 5-7

Note: Low Voltage Cable, 3 m

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 577864901

SCREW 3 PCS, BLISTER PACK
(Superseded to 597435801)

Note: Blister Pack, 3 pcs

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 967623603

LARGE AUTOMOWER INSTALL KIT
(Superseded to 967972302)

Note: S Wire 400 m, Staples 600 pc, Connectors 5 pcs, Couplers 5 pcs

$283.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577606505

HUS BLADE SET 45 PCS
(Superseded to 596287301)

Note: Long Life Safety Blade, 45 pcs

$

$

Not available

7

Husqvarna 593297701

NEEDS DESCRIPTION

Note: Wire Pro, 300 m

$

$

Currently unavailable

2

Husqvarna 535129001

BRAKER
(Superseded to 596290401)

Note: Loop Wire Connector

$10.99

$

In Stock, only 2 left!

0

2

Husqvarna 535129002

CONNECTOR 100 PCS

Note: Loop Wire Connector, Blister Pack 100 pcs

$

$

Not available

9

Husqvarna 580662004

WIRE (800M)
(Superseded to 596286601)

Note: Wire, 800 m

$283.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577864302

WIRE 50M STANDARD Ø2.7MM,BLIST

Note: Wire, Blister Pack 50 m

$

$

Not available

12

Husqvarna 595084402

NEEDS DESCRIPTION
(Superseded to 595084412)

Note: Endurance Blade, 45 pcs

$148.99

$

In Stock, only 1 left!

0

3

Husqvarna 577864701

COUPLER SPLICER, 5 PCS,
(Superseded to 596287101)

Note: Coupler, Blister Pack 5 pcs

$11.99

$

In Stock, only 2 left!

0

2

Husqvarna 577864801

CONNECTOR 5 PCS, BLISTER
(Superseded to 596290401)

Note: Loop Wire Connector, Blister Pack 5 pcs

$10.99

$

In Stock, only 2 left!

0

6

Husqvarna 580662001

WIRE 250M

Note: Wire, 250 m

$

$

Not available

21

Husqvarna 590855001

CONNECTOR PROTECTION BOX

Note: Cable Connector Protection

$

$

Not available

12

Husqvarna 595084403

NEEDS DESCRIPTION
(Superseded to 595084413)

Note: Endurance Blade, 300 pcs

$682.99

$

Usually ships in 3-10 days

0

1

Husqvarna 967623602

MED AUTOMOWER INSTALL KIT
(Superseded to 967944602)

Note: M Wire 250 m, Staples 400 pc, Connectors 3 pcs, Couplers 5 pcs

$193.99

$

In Stock, Qty 8

0

4

Husqvarna 583973401

STAPLE 100 PCS
(Superseded to 596281901)

Note: 100 pcs

$38.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577864301

WIRE 150M, BLISTER
(Superseded to 596286801)

Note: Wire, Blister Pack 150 m

$

$

Not available

5

Husqvarna 580662002

WIRE BOUNDARY 150M
(Superseded to 596286801)

Note: Wire, 150 m

$

$

Not available

8

Husqvarna 522914101

WIRE 500M
(Superseded to 596286701)

Note: Wire, 500 m, diam 3,4mm

$

$

Not available

22

Husqvarna 596339801

WRENCH BITS CHANGING ROBOTIC B

Note: Bit for Robotic Blades

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 575238601

SCREW KIT CS
(Superseded to 597435801)

Note: 6 pcs

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 595084401

NEEDS DESCRIPTION
(Superseded to 595084411)

Note: Endurance Blade, Blister Pack 6 pcs

$28.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590442504

Power Unit

Note: Power Supply Unit, US,MX

$

$

Not available

3

Husqvarna 501980201

SPLICE KIT
(Superseded to 596287101)

Note: Coupler

$11.99

$

In Stock, only 2 left!

0

19

Husqvarna 586277901

STICKER CABLE MARKERS KIT 10PC

Note: Cable Markers, 10 pcs

$

$

Not available

4

Husqvarna 577864201

STAPLE 100 PCS, BLISTER
(Superseded to 596281901)

Note: Staple Blister Pack 100 pcs

$38.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577864603

HUS BLADE SET 9 PCS
(Superseded to 596287201)

Note: Long Life Safety Blade, Blister Pack 9 pcs

$

$

Not available

3

Husqvarna 501980203

COUPLER SPLICER, 100 PCS
(Superseded to 596287001)

Note: Coupler, 100 pcs

$84.99

$

Usually ships in 3-10 days

0

1

Husqvarna 967623601

SMALL AUTOMOWER INSTALL KIT
(Superseded to 967944601)

Note: S Wire 150 m, Staples 300 pc, Connectors 3 pcs, Couplers 5 pcs

$

$

Not available

15

Husqvarna 588765004

CABLE LOW VOLTAGE CABLE P2 5-7

Note: Low Voltage Cable, 20 m

$74.99

$

Usually ships in 3-10 days

0
