5049604 - Simplicity Headlight Kit Headlight Kit - 5049604 Parts Diagram

Headlight Kit

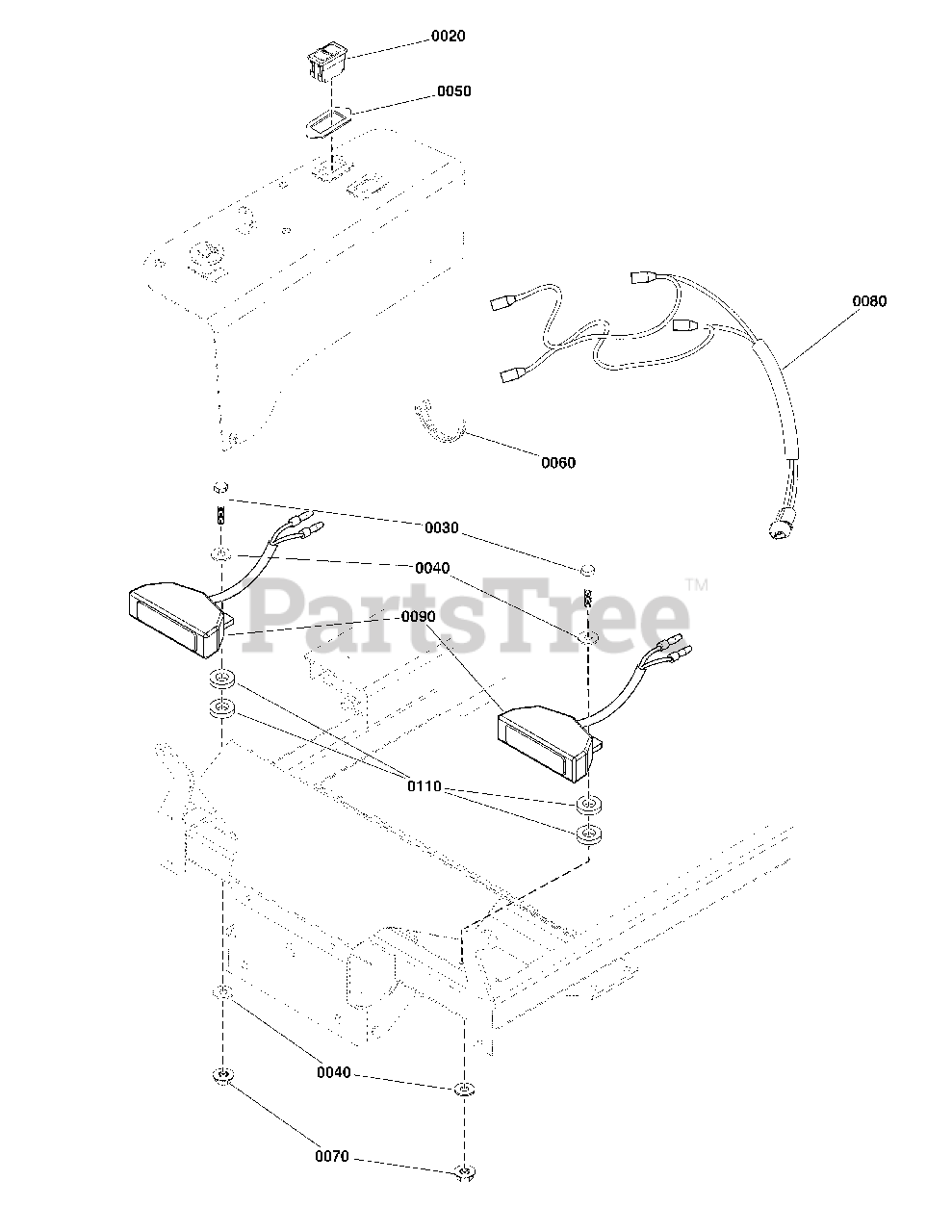

Headlight Kit - 5049604 Parts Diagram

  • Title
0020

Simplicity 1703799

SWITCH, HEADLIGHT
(Superseded to 1703799SM)

$31.99

$

In Stock, only 1 left!

0

0030

Simplicity 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

0040

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

0060

Simplicity 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0070

Simplicity 5025095

HUT, HEX NYLON LOCK, 1/4x20"
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

0080

Simplicity 5061793

HEADLIGHT HARNESS
(Superseded to 5061793SM)

$56.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5023482

HEADLIGHT-4 RECT.
(Superseded to 5023482SM)

$47.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5417573

HEADLIGHT
(Superseded to 5417573FS)

$210.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0
