5049330 - Simplicity Mulch Kit for 61" Non iCD Mower (SN: 2013383848 & Below) Mulch Kit (5049330) Parts Diagram

Mulch Kit for 61" Non iCD Mower

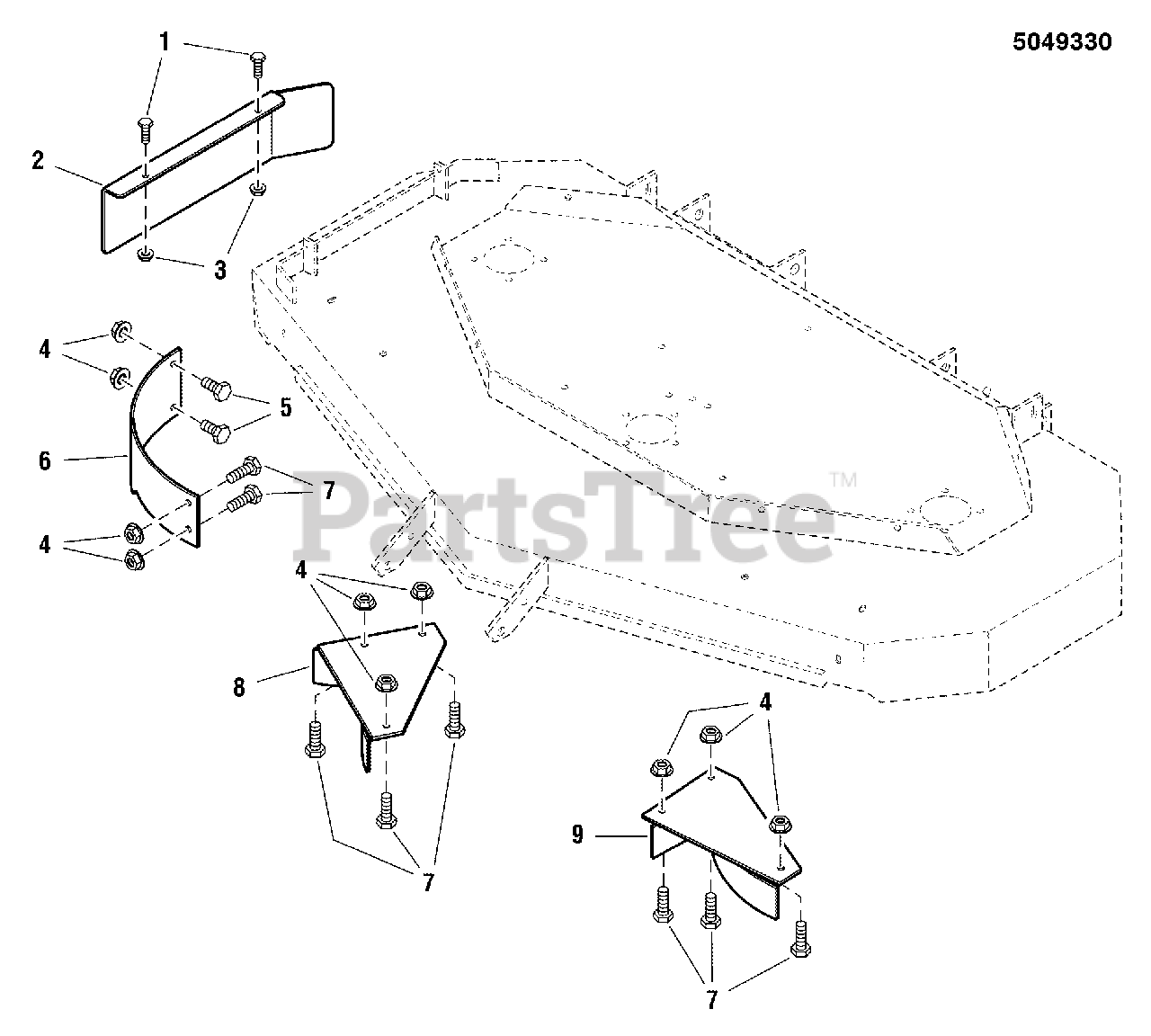

Mulch Kit (5049330) Parts Diagram

  • Title
1

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4, GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5049295A

PLATE, Block Off
(Superseded to 5049295ASM)

$60.99

$

Usually ships in 2-12 days

0

3

Simplicity 703463

NUT, Hex Nylock Flange, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5025392

NUT, Hex Nylock Flange, 5/16-18
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025011X5

BOLT, 5/16-18 X 5/8, GD5
(Superseded to 5025011X5YP)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5049304AYP

RING, Mulching, RH

$31.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8

BOLT, 5/16-18 X 1, GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 5049296AYP

Plate, Mulch, RH

$63.99

$

Usually ships in 2-12 days

0

9

Simplicity 5049300AYP

Plate, Mulch, LH

$63.99

$

Usually ships in 2-12 days

0

--

Simplicity 5049330SM

KIT, Grass Mulcher

$186.99

$

Usually ships in 2-12 days

0
