5048266 - Ferris 61" E-Z Dump Grass Collection System E-Z Dump Box Handle, Latch & Pivot Group Parts Diagram

61" E-Z Dump Grass Collection System

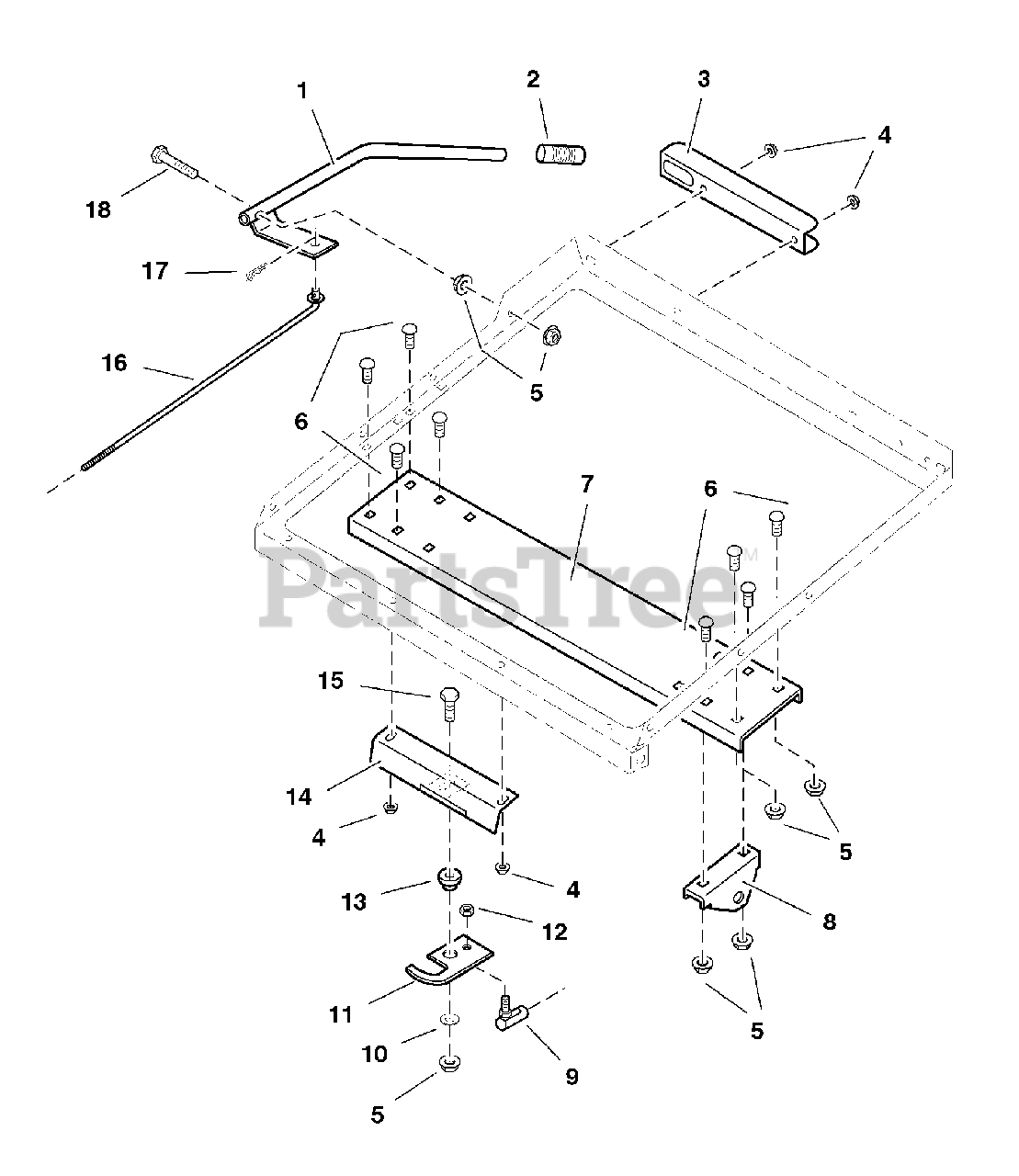

E-Z Dump Box Handle, Latch & Pivot Group Parts Diagram

  • Title

1

Ferris 5800094

BOX HANDLE

$

$

Currently unavailable

2

Ferris J0522

GRIP

$

$

Currently unavailable

3

Ferris 5800101

HANDLE MOUNT BRACKET

$

$

Currently unavailable

4

Ferris K1126

NUT, Hex, Flange, 1/4-20

$

$

Currently unavailable

5

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

6

Ferris K1182

CARRIAGE BOLT, 3/8-16 x 1-1/2

$

$

Currently unavailable

7

Ferris 5800100

BASE FRAME PIVOT MOUNT

$

$

Currently unavailable

8

Ferris 5800098

PIVOT BRACKET

$

$

Currently unavailable

9

Ferris K1442

BALL JOINT

$

$

Currently unavailable

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5800097

LATCH HOOK

$

$

Currently unavailable

12

Ferris K1215

NUT, Hex

$

$

Currently unavailable

13

Ferris 5800115

LATCH HOOK HUB

$

$

Currently unavailable

14

Ferris 5800092

LATCH HOOK PIVOT PLATE

$

$

Currently unavailable

15

Ferris K1191

CAPSCREW, Hex Hd, 3/8-16 x 1

$

$

Currently unavailable

16

Ferris 5800093

LATCH ROD

$

$

Currently unavailable

17

Ferris K0094

HAIRPIN CLIP

$

$

Currently unavailable

18

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0
