5041 - Troy-Bilt Pony V Rear-Tine Tiller (SN: S0186072 - S0204132) ENGINE, PULLEYS & BELTS Parts Diagram

Pony V Rear-Tine Tiller

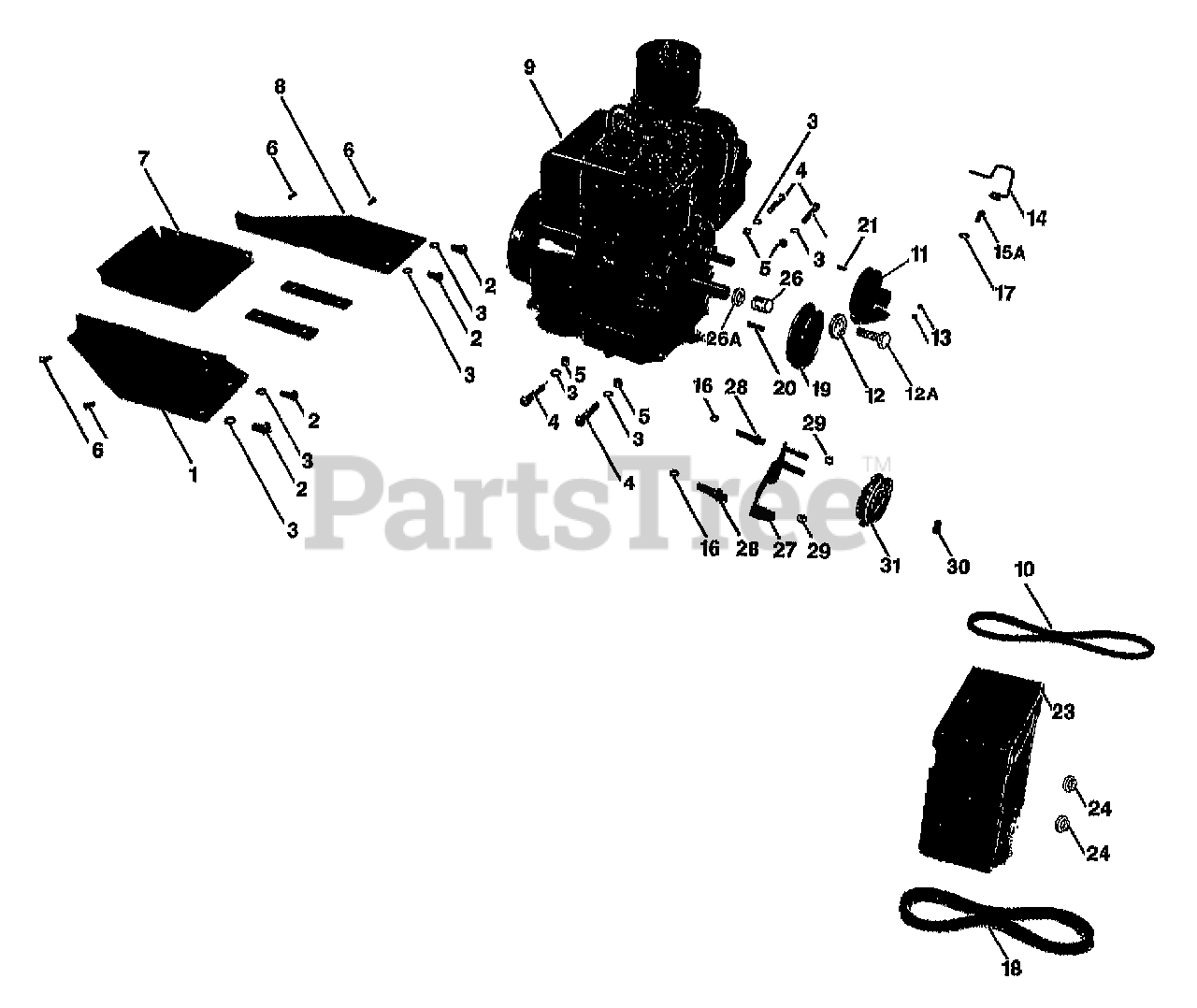

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

3

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

4

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

5

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

6

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 ZP (SEMS - WITH PERMANENT WASHER)

$

$

Currently unavailable

7

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

8

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

9

0

ENGINE B&S STANDARD RECOIL START.

$

$

Not available

9

0

ENGINE B&S ELECTRIC START.

$

$

Not available

10

Troy-Bilt 50134

BELT-V (SEE V-BELT SET BELOW)
(Superseded to GW-50134)

$30.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 20503

PULLEY-ENG MACH

$

$

Currently unavailable

12

Troy-Bilt 9944

WASHER-.827X.331X.098 (CONCAVE SURFACE FACES FORWARD PULLEY)
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

12A

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5 ZP (ATTACHES FORWARD PULLEY)
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

13

MTD 9561

SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY)

$

$

Not available

14

MTD 20555

GUIDE-BELT FWD

$

$

Not available

15A

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

17

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

18

Troy-Bilt 20565

BELT-V GROOVE FWD SMFRAME (SEE V-BELT SET BELOW)

$

$

Currently unavailable

19

MTD 20765

PULLEY-ENGINE MACH

$

$

Not available

20

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

21

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

23

Troy-Bilt 20655

SHROUD-BELT PNT

$

$

Currently unavailable

24

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

26

Troy-Bilt 9089

SPACER-ENGINE PULLEY (ON FORWARD PTO SHAFT BETWEEN ENGINE & FORWARD PULLEY)

$

$

Currently unavailable

26A

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031 (ON FORWARD PTO SHAFT BETWEEN ENGINE & SPACER)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 4922

KIT-BELT PONY III (INCL. #20565 & #50134)

$

$

Currently unavailable

27

Troy-Bilt 20648

BRKT-IDLER WELD PNT

$

$

Currently unavailable

28

Troy-Bilt EB94067

STUD-5HP (B&S PART)

$

$

Currently unavailable

29

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

30

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

31

Troy-Bilt 9017

IDLER-"V" GROOVE (INTERNAL BUSHING TYPE)

$

$

Currently unavailable
