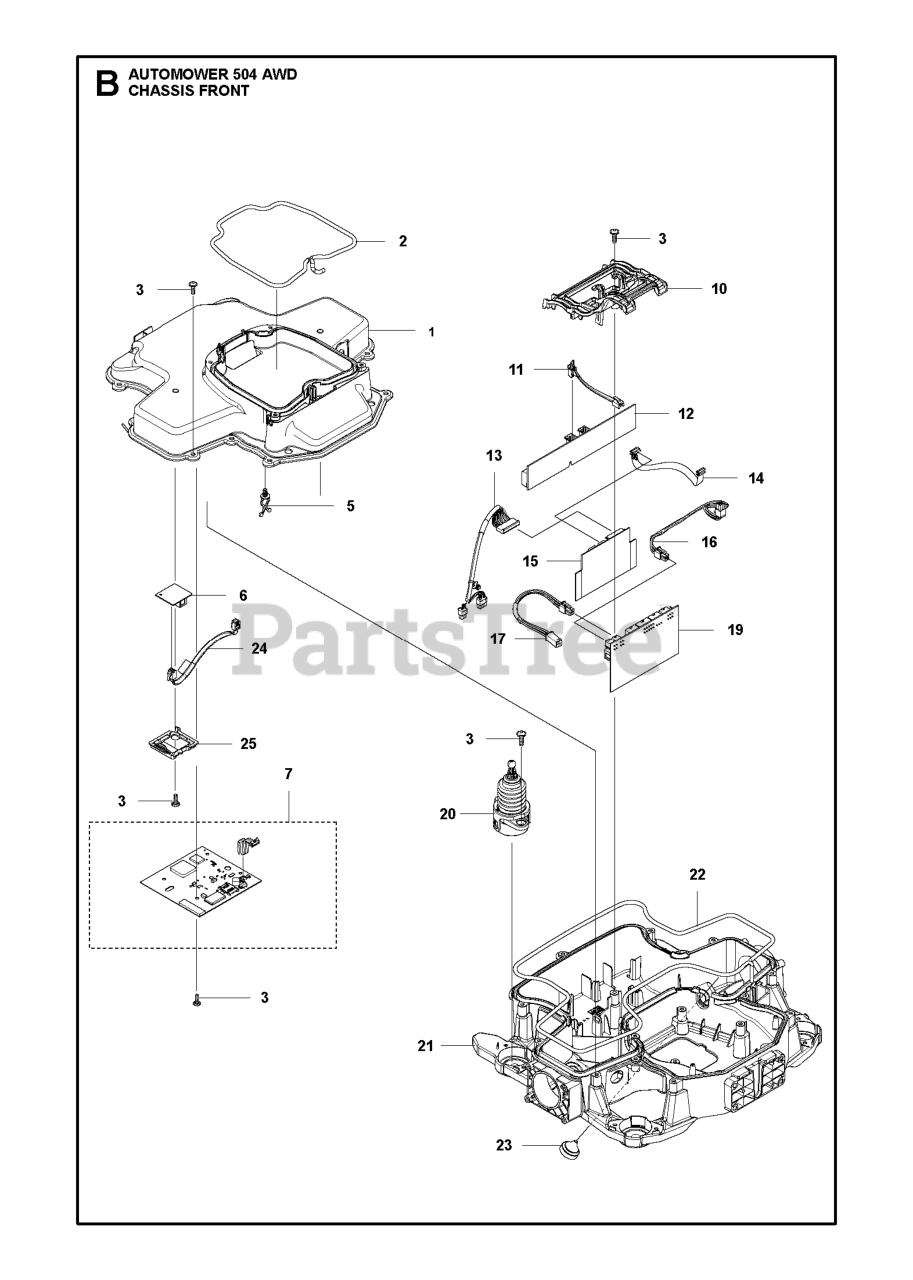

504 AWD - Husqvarna Automower Robotic Lawn Mower (2021-01) CHASSIS Parts Diagram

Automower Robotic Lawn Mower

CHASSIS Parts Diagram

  • Title
12

Husqvarna 591125702

Circuits

Note: Loop Receiver Board

$

$

Not available

16

Husqvarna 591203101

Wires

Note: HMI cable 4P

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Twist lock

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574874714

Seals

Note: Chassis Upper Front

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 584897501

GROMMET M16

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 579708602

Wires

Note: AUX

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 592743601

Chassis

Note: Lower front

$74.99

$

Usually ships in 3-10 days

0

1

Husqvarna 592743401

Chassis

Note: Upper front

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 592743701

Holders

Note: PCB front

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 574874712

Seals

Note: Chassis Lower Front

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 586662306

NEEDS DESCRIPTION
(Superseded to 586662311)

Note: Automower Connect

$368.99

$

Usually ships in 3-10 days

0

6

Husqvarna 591125501

Circuits

Note: Magnetic Sensor

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 578285701

PRINTED CIRCUIT ASSY ULTRASONI

Note: Ultra Sonic Board

$148.99

$

Usually ships in 3-10 days

0

25

Husqvarna 591494301

Holders

Note: Magnetic Sensor Board

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 591125601

Circuits

Note: Motor Controler Board

$284.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580614402

Wires

Note: Ultra Sonic Extension

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 589350803

Wires

Note: Modular Jack

$

$

Not available

17

Husqvarna 591203301

Wires

Note: Main Cable Adapter 4P

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592736301

Joystick

Note: Assy

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna 589350803

Wires

Note: Modular Jack

$

$

Not available
