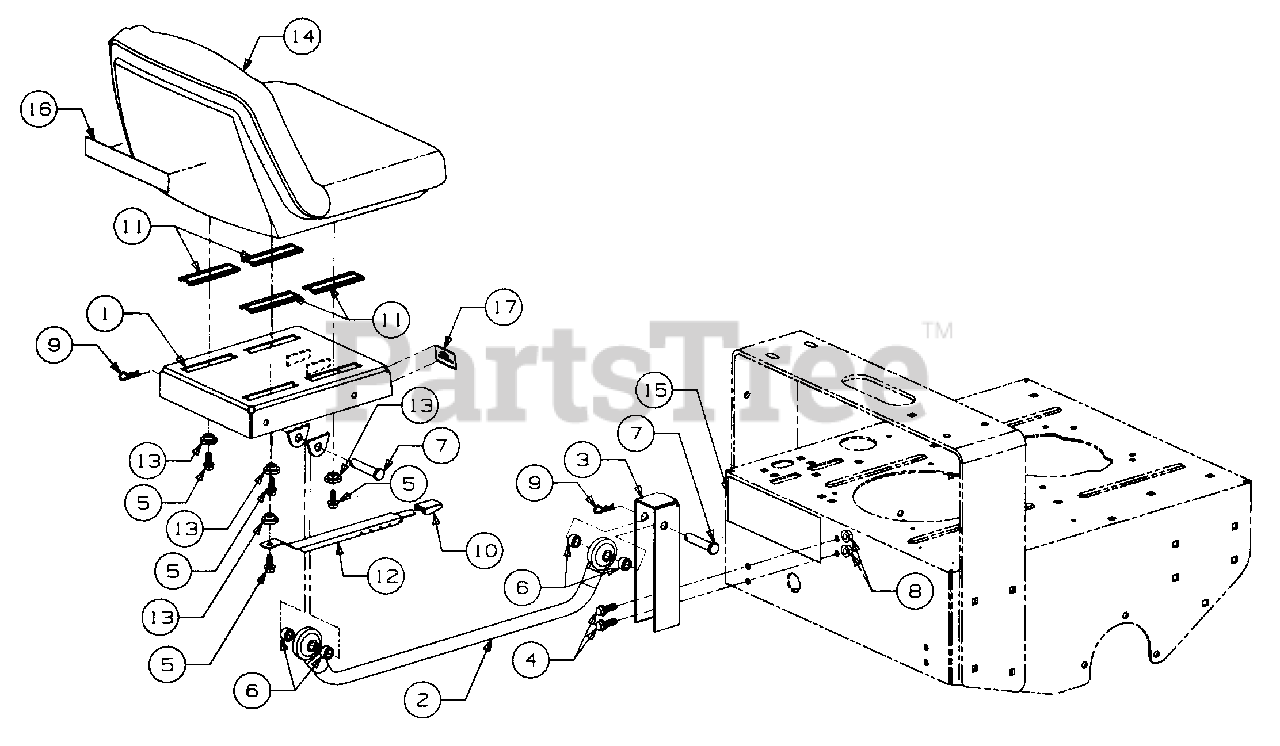

504 (590-504-100) - Cub Cadet Sit Down Sulky Seat And Seatpan Parts Diagram

Sit Down Sulky

Seat And Seatpan Parts Diagram

  • Title

1

Cub Cadet 603-0276

Seatpan

$

$

Currently unavailable

2

Cub Cadet 603-0277

Tube Assy, Link

$

$

Currently unavailable

3

Cub Cadet 703-2706

Bracket, Ball Joint Mtg

Variations

Cub Cadet 703-2706-0498

BRACKET-BALL JOINT(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 710-0654A

Screw, Hex Wash TT Tapp, 3/8-16 X 1.00 Lg

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-1260

Screw, Hex Wash TPTT, 5/16-18 X .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 711-0494

Spacer, .53 ID X .75 OD X .38 Lg

$

$

Not available

7

Cub Cadet 711-0761

Pin, Clevis, 1/2 Dia X 2.50 Lg

$19.99

$

In Stock, only 4 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 720-0190

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

11

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

12

Cub Cadet 732-3098

Adjuster, Seat

$

$

Not available

13

Cub Cadet 738-0372

Spacer, Shoulder
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

14

Cub Cadet 757-3004

Seat, Highback
(Superseded to 759-04299)

$

$

Not available

15

Cub Cadet 777-1585A

Graphic, Warning

$

$

Not available

16

Cub Cadet 777-1713

Graphic, Seat Back Script

$

$

Not available

17

Cub Cadet 777-1716

Graphic, Seat Adjuster

$

$

Not available
