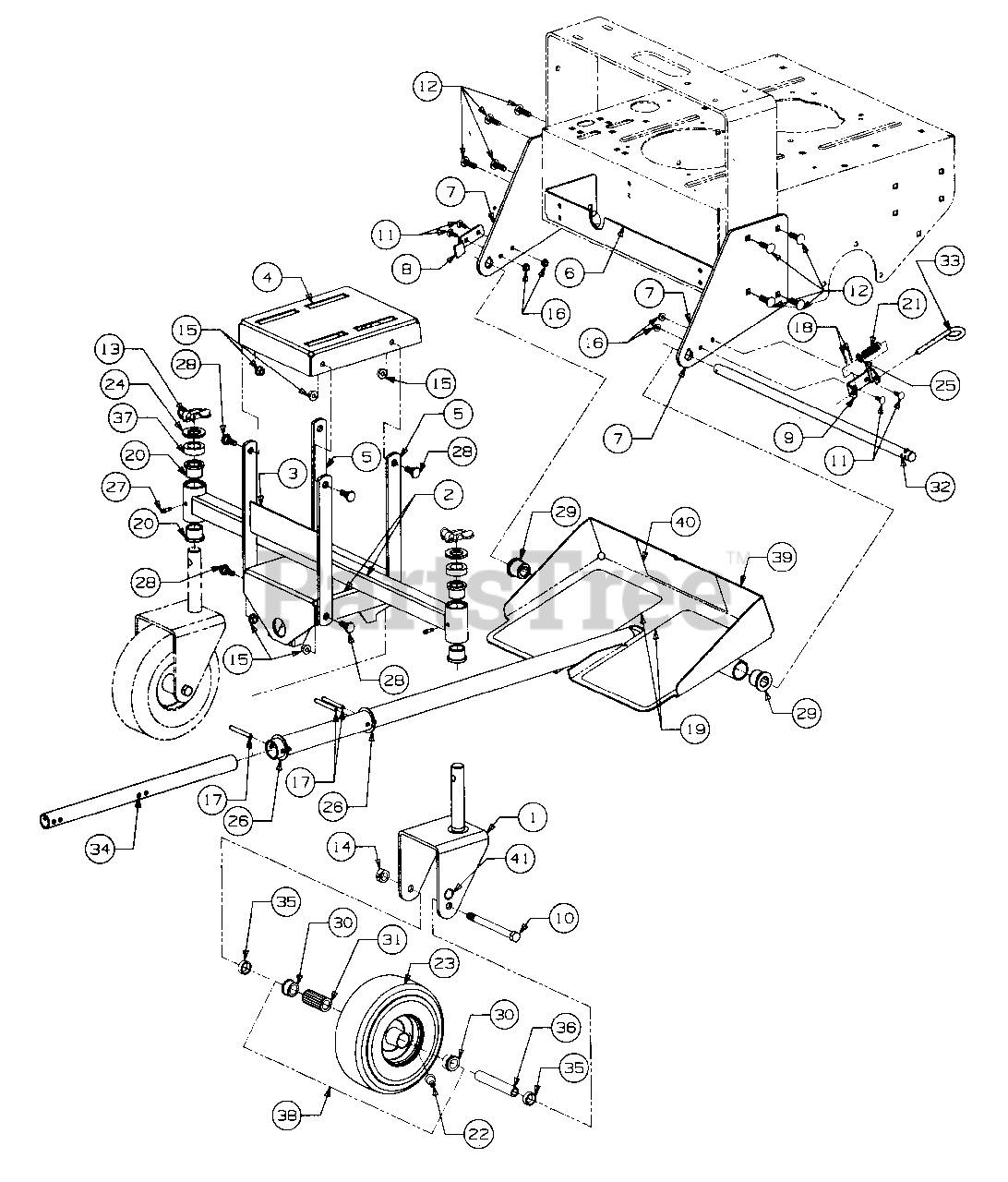

504 (590-504-100) - Cub Cadet Sit Down Sulky Footrest And Axle Parts Diagram

Sit Down Sulky

Footrest And Axle Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0260

Axle, Seat Sulky

$

$

Currently unavailable

3

Cub Cadet 603-0275

Link Asy, Rear Parallel

$

$

Not available

4

Cub Cadet 603-0276

Seatpan

$

$

Currently unavailable

5

Cub Cadet 703-2707

Link, Parallel

$

$

Not available

6

Cub Cadet 703-2747

Bracket, Engine Deck Support

$

$

Not available

7

Cub Cadet 703-2755

Plate, Seat Sulky Mtg

$

$

Not available

8

Cub Cadet 703-2820

Bracket, Pivot Pin Stop

$

$

Not available

9

Cub Cadet 703-2821

Bracket, Locating Rod

$

$

Not available

10

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 X 5.50 Lg

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0703

Bolt, Carriage, 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 711-3345

Pin, Klik

$

$

Not available

14

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0431

Nut, Hex Flanged, Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 715-0113

Pin, Spiral Spring, 5/16 Dia X 2.50 Lg Hd

$

$

Not available

18

Cub Cadet 715-0138

Pin, Roll, 1/8 Dia X .63 Lg
(Superseded to 915-0138)

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 723-3069

Pad, Abrasive Foot
(Superseded to 00023817)

$

$

Not available

20

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

21

Cub Cadet 732-0757

Spring, Compression

$

$

Not available

22

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 734-3098

Tire, Smooth, 9.0 X 3.50 X 4

$

$

Not available

24

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 14

0

25

Cub Cadet 736-0275

Washer, Flat, 5/16

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-3133

Washer, Flat, 1.53 X 2.00 X .089 Thk

$

$

Not available

27

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

28

Cub Cadet 738-0380

Bolt, Shoulder, .50 Dia X .267 Lg

$7.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 741-0312

Bearing, Flange, .75 ID X 1.25 OD
(Superseded to 941-0312)

$8.99

$

In Stock, only 1 left!

0

30

Cub Cadet 741-3060

Bearing, Graf Oil Flange

$

$

Not available

31

Cub Cadet 741-3061

Bearing, Roller
(Superseded to 941-3061)

$

$

Not available

32

Cub Cadet 747-3249

Pin, Sulky Pivot

$

$

Currently unavailable

33

Cub Cadet 747-3265

Rod, Pivot Pin Locating
(Superseded to 947-3265)

$

$

Not available

34

Cub Cadet 749-3050

Tube, Reinforcement

$

$

Currently unavailable

35

Cub Cadet 750-0456

Spacer, .790 ID X .347 Lg

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 750-3080

Spacer, Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

37

Cub Cadet 750-3118

Spacer, 1.015 X 1.62 X .50 Lg

$

$

Not available

38

Cub Cadet 759-3729

Wheel Assy, Caster
(Superseded to 634-3026)

$238.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 759-3770

Tube, Footrest Pivot

Note: [Includes Ref No. 19 (Qty 2) & 40]

$

$

Not available

40

Cub Cadet 777-2733

Graphic, Riding Sulky Warning

$

$

Not available

41

Cub Cadet 777-3334

Label, Inflation

$

$

Not available
