50333 - Troy-Bilt 33" Tiller Attachment General Assembly Parts Diagram

33" Tiller Attachment

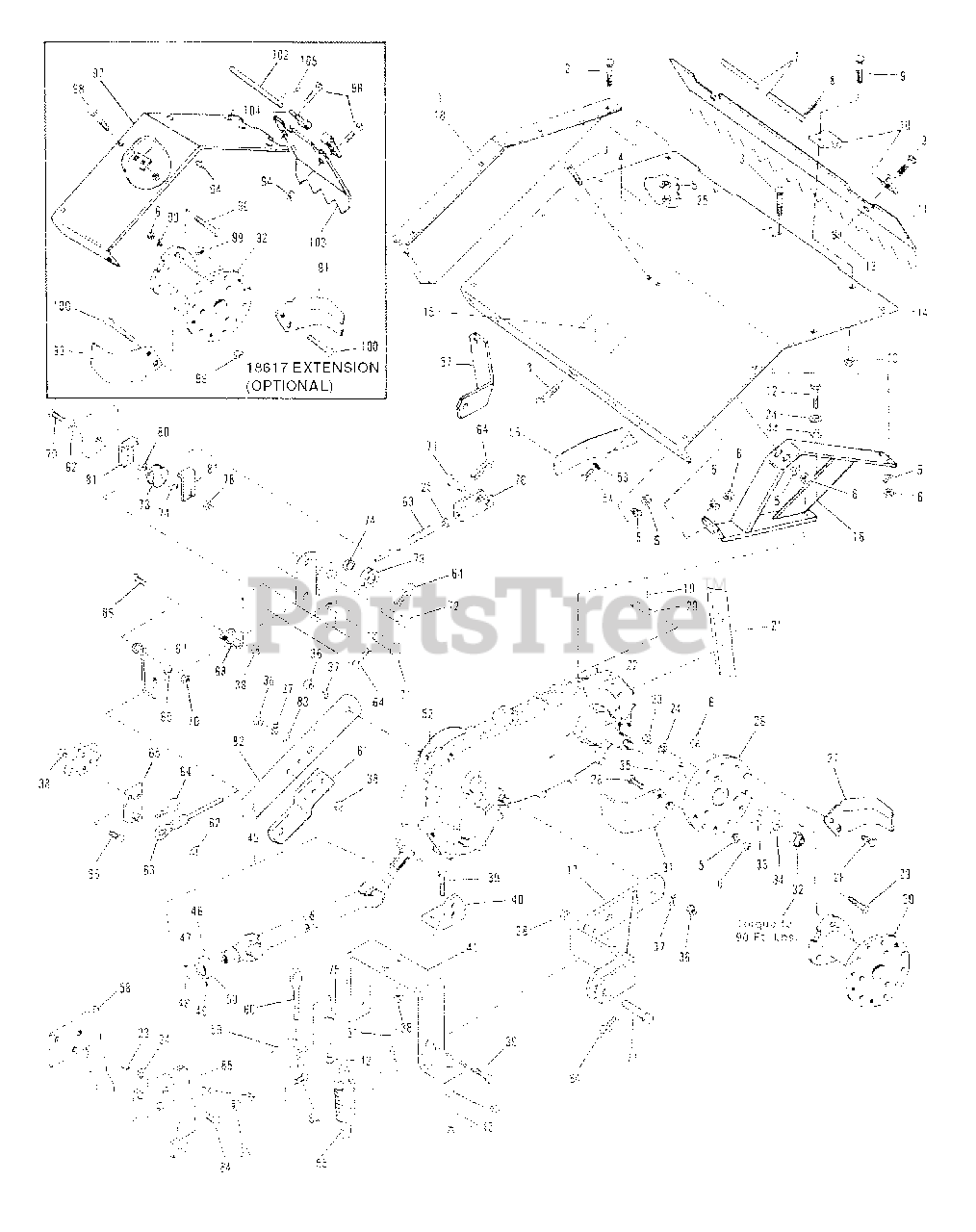

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 1723035

Hood, Right Side

$

$

Currently unavailable

2

MTD 1739656

Carriage Bolt, 3/8-16 x 314 Sh. Neck

$

$

Not available

3

Troy-Bilt 1186128

Carriage Bolt, 3/8-16 x 1
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

4

MTD 1745889

Decal (Logo)

$

$

Not available

5

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1733398

Lock Nut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

7

MTD 1723031

Hinge Pin

$

$

Not available

8

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

9

Troy-Bilt 1186469

Carriage Bolt, 5/16-16 x 3/4
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

10

MTD 1718196

Hinge

$

$

Not available

11

Troy-Bilt 1723504

Leveling Board

$

$

Currently unavailable

12

Troy-Bilt 1100055

Hex Screw 1/2-13 x 1-1/4
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1186391

Nut, Flange 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

14

MTD 1729229

Hood

$

$

Not available

15

Troy-Bilt 1742798

Decal (Caution)
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1729222

Support Assembly

$

$

Currently unavailable

17

Troy-Bilt 1744960

Hitch Arm Assembly

$

$

Currently unavailable

18

Troy-Bilt 1723034

Hood, Left Side

$

$

Currently unavailable

19

Troy-Bilt 1100350

Cotter Pin, 1/8 x 1
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

20

MTD 1186431

Clevis Pin

$

$

Not available

21

Troy-Bilt 1718189

Shoe Center

$

$

Currently unavailable

22

Troy-Bilt 1717897

Woodruff Key, 5/16 x 1

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1186233

Nut, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100245

Lockwasher, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

25

MTD 1186259

Nut, 3/8-16

$

$

Not available

26

Troy-Bilt 1727907

Tiller Hub

$

$

Currently unavailable

27

MTD 1709388

Bend Tire, Left Hand

$

$

Not available

28

Troy-Bilt 1100043

Capscrew, 3/8-16 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

29

MTD 1100065

Capscrew, 1/2-13 x 1-3/4

$

$

Not available

30

Troy-Bilt 1718138

Spacer

$

$

Currently unavailable

31

Troy-Bilt 1709387

Send Tine, Right Hand
(Superseded to 1709387001)

$

$

Not available

32

MTD 1186435

Lock Nut, 5/8-18

$

$

Not available

33

MTD 1718765

Spacer Washer

$

$

Not available

34

MTD 1800041

Special Washer

$

$

Not available

35

MTD 1718170

Sleeve

$

$

Not available

36

Troy-Bilt 1186235

Nut, 5/8-11
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

37

MTD 1100247

Lockwasher, 5/8

$

$

Not available

38

Troy-Bilt 1186393

Flange Nut 3/8-16

$3.49

$

In Stock, only 2 left!

0

39

MTD 1186350

Flange Screw 3/8-16 x 1-3/4

$

$

Not available

40

Troy-Bilt 1744953

Cable Anchor Bracket

$

$

Currently unavailable

41

Troy-Bilt 1744954

Lift, Bracket

$

$

Currently unavailable

42

Troy-Bilt 1186230

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

44

Troy-Bilt 1107385

Flat Washer, 1/2
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

45

Troy-Bilt 1744925

Drive Shaft Assembly

Note: (Included with Ref. Nos. 46 thru 50)

$

$

Currently unavailable

46

MTD 1118922

Groove Pin, 3/16 x 1/2

$

$

Not available

47

MTD 1725334

Thrust Washer

$

$

Not available

48

MTD 1862341

Return Spring

$

$

Not available

49

Troy-Bilt 1187762

Groove Pin, 3/16 x 3/8

$

$

Not available

50

Troy-Bilt 1862340

Locking Collar

$

$

Currently unavailable

51

MTD 1725199

Eye Bolt

$

$

Not available

52

MTD 1105678

Pipe Plug

$

$

Not available

53

MTD 1104008

Shakeproof Washer, 3/8

$

$

Not available

54

Troy-Bilt 1100046

Capscrew, 3/8-16 x 1
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 1714844

Extension Spring

$

$

Currently unavailable

56

Troy-Bilt 1723029

Support Bracket L.H.

$

$

Currently unavailable

57

Troy-Bilt 1729239

Support Bracket R.H.

$

$

Currently unavailable

58

MTD 1733855

Hitch Arm Assembly R.H.

$

$

Not available

59

Troy-Bilt 1744928

Spring support

$

$

Currently unavailable

60

Troy-Bilt 1744929

Eye Bolt

$

$

Currently unavailable

61

Troy-Bilt 1744961

Plate

$

$

Currently unavailable

62

Troy-Bilt 1107385

Flat Washer 1/2
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

63

Troy-Bilt 1744967

Lift Cable

$

$

Currently unavailable

64

MTD 1723478

Spring Pin

$

$

Not available

65

Troy-Bilt 1744936

Lift Arm Assembly

$

$

Currently unavailable

66

Troy-Bilt 1186347

Flange Screw 3/8-16 x 1
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

67

MTD 1731956

Cable Guide (Hydra Models)

$

$

Not available

68

Troy-Bilt 1746225

Cable Guide (Gear Models)

$

$

Currently unavailable

69

Troy-Bilt 1100256

Flat Washer 3/8 (Hydra Models)
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 1110108

Lock Nut 3/8-16 (Hydra Models)
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

71

Troy-Bilt 1730851

Clevis Pin

$

$

Not available

72

Troy-Bilt 1890227

Clevis Pin

$

$

Not available

73

Troy-Bilt 1734508

Roller

$

$

Currently unavailable

74

MTD 1734509

Spacer

$

$

Not available

75

Troy-Bilt 1730596

Spring Bracket

$

$

Currently unavailable

76

MTD 1734192

Yoke Assembly

$

$

Not available

77

Troy-Bilt 1744962

Clevis Pin
(Superseded to 711-0174)

$10.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 1186397

Flange Nut 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

79

MTD 1100056

Hex Screw 1/2-13 x 2-1/2

$

$

Not available

80

MTD 1744899

Spacer (Hydra Models)

$

$

Not available

81

MTD 1744952

Cable Retainer (Hydra Models)

$

$

Not available

82

Troy-Bilt 1744955

Arm Support

$

$

Currently unavailable

83

MTD 1185847

Flat Washer

$

$

Not available

84

Troy-Bilt 1100055

Hex Screw 1/2-13 x 1-1/4
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 1733854

Hitch Arm Assembly L.H.

$

$

Currently unavailable

90

Troy-Bilt 1100245

Lockwasher, 1/2
(Superseded to 936-0921)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$4.49

$

In Stock, Qty 6

0

?91

MTD 1709388

L.H. Bend Tine

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

92

Troy-Bilt 1718138

Spacer

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Currently unavailable

93

Troy-Bilt 1709387

R.H. Bend Tine
(Superseded to 1709387001)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

94

Troy-Bilt 1186391

Hex Nut, 5/16-18
(Superseded to 712-04054)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$4.99

$

In Stock, Qty 20+

0

?95

Troy-Bilt 1186233

Hex Nut, 1/2-13
(Superseded to 912-0206)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$4.49

$

In Stock, Qty 20+

0

96

MTD 1100065

Hex Head Capscrew, 1/2-13 x 1-3/4

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

97

Troy-Bilt 1729028

Hood Extension

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Currently unavailable

98

Troy-Bilt 1186098

Carriage Bolt, 5/16-18 x 3/4

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

99

Troy-Bilt 1110108

Lock Nut, 3/6-16
(Superseded to 712-0375)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$4.49

$

In Stock, Qty 6

0

100

Troy-Bilt 1100043

Hex Head Capscrew, 3/8-16 x 1-1/4 H.T.
(Superseded to 710-3005)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$3.99

$

In Stock, Qty 20+

0

?101

MTD 1718207

Connector

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

102

MTD 1718199

Hinge Pin

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

103

Troy-Bilt 1729030

Leveling Board Extension

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Currently unavailable

104

MTD 1718197

Hinge

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Not available

105

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

Note: MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$4.49

$

In Stock, Qty 17

0

Troy-Bilt 160305

Spray Paint, Dark Green

Note: NI; MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING

$

$

Currently unavailable
