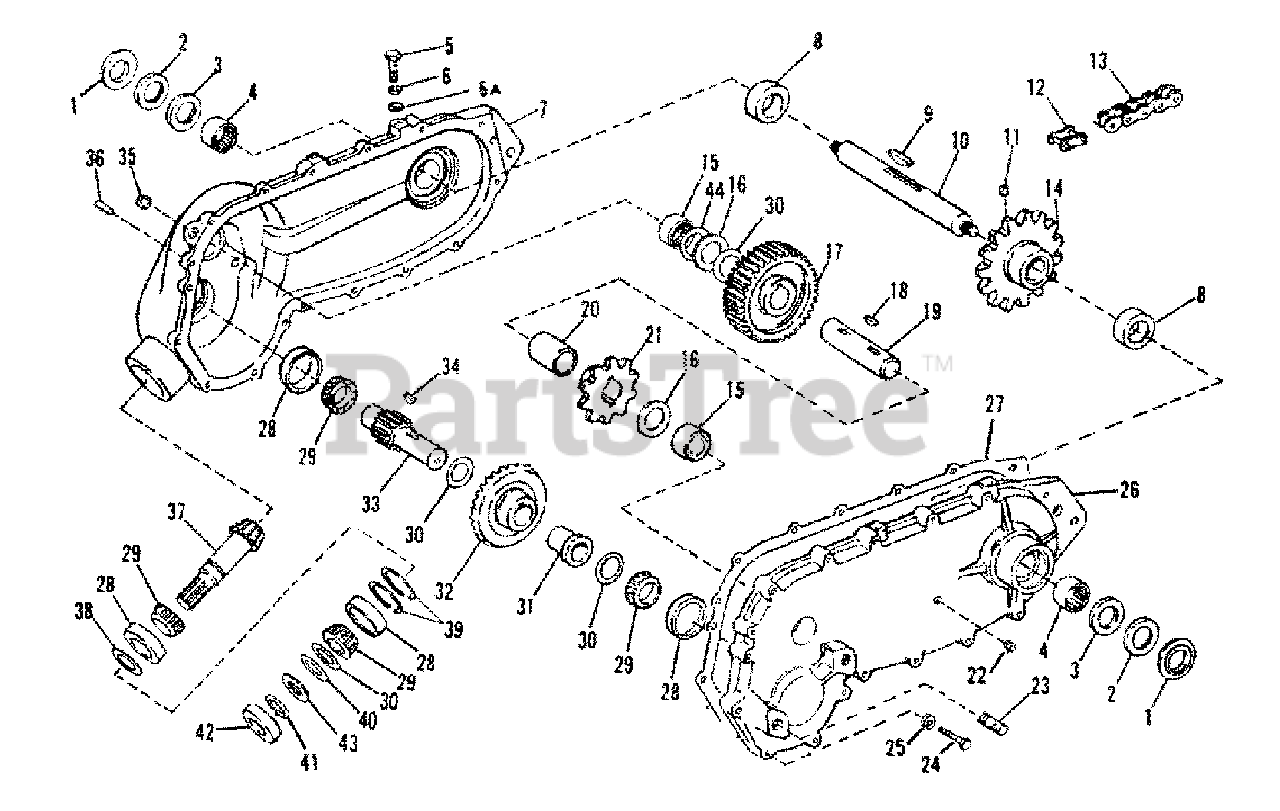

50333 - Troy-Bilt 33" Tiller Attachment Gear Case Assembly Parts Diagram

33" Tiller Attachment

Gear Case Assembly Parts Diagram

  • Title

1

Troy-Bilt 1718153

Seal Washer

$

$

Currently unavailable

2

Troy-Bilt 1185630

Oil Seal
(Superseded to GW-9618099)

$20.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1185629

Oil Seal
(Superseded to 721-0110)

$

$

Not available

4

Troy-Bilt 1185721

Needle Bearing

$

$

Currently unavailable

5

Troy-Bilt 1100055

Hex Head Capscrew, 1/2-13 x 1-1/4
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1100245

Lockwasher, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

6A

UNKNOWN

$

$

Not available

7

Troy-Bilt 1729249

Tiller Case

Note: (Included with Ref#. No. 28)

$

$

Currently unavailable

8

MTD 1723961

Thrust Washer

$

$

Not available

9

MTD 1723622

Hi-Pro Key, 5/16 x 2

$

$

Not available

10

Troy-Bilt 1727908

Tine Shaft

$

$

Currently unavailable

11

MTD 1103494

Set Screw, 3/8-16 x 1/2

$

$

Not available

12

MTD 1718152

Connector, Roller Chain

$

$

Not available

13

MTD 1718151

Roller Chain, 1 Pitch

$

$

Not available

14

MTD 1721591

Sprocket, 15 Tooth 1" Pitch

$

$

Not available

15

Troy-Bilt 1185720

Needle Bearing

$

$

Currently unavailable

16

MTD 1723960

Thrust Washer

$

$

Not available

17

MTD 1718393

Gear, 39 Tooth

$

$

Not available

18

MTD 1723959

Key, 5/16 x 1-1/16

$

$

Not available

19

MTD 1723955

Shaft

$

$

Not available

20

MTD 1723956

Spacer

$

$

Not available

21

MTD 1718147

Sprocket, 10 Tooth 1" Pitch

$

$

Not available

22

Troy-Bilt 1185741

Pipe Plug, 1/8 NPT
(Superseded to 737-04178)

$4.49

$

Usually ships in 3-6 days

0

23

MTD 1113755

Stud

$

$

Not available

24

Troy-Bilt 1111607

Capscrew, 5/16-18 x 2-1/4
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 1729283

Gear Case Cover

Note: (included with Ref. No. 28)

$

$

Not available

27

MTD 1718389

Gasket

$

$

Not available

28

MTD 1177343

Bearing Cup

$

$

Not available

29

Troy-Bilt 1177262

Bearing Cone

$

$

Currently unavailable

30

MTD 1718781

Shim, .005

$

$

Not available

31

MTD 1723954

Spacer

$

$

Not available

32

MTD 1718391

Bevel Gear, 40 Tooth

$

$

Not available

33

Troy-Bilt 1723953

Pinion and Shaft

$

$

Currently unavailable

34

MTD 1708382

Woodruff Key, 1/4 x 1

$

$

Not available

35

MTD 1105678

Pipe Plug

$

$

Not available

36

MTD 1185206

Drive Pin

$

$

Not available

37

MTD 1718390

Pinion, 13 Tooth

$

$

Not available

38

MTD 1719443

Shim, .005

$

$

Not available

39

MTD 1185733

Retaining Ring

$

$

Not available

40

Troy-Bilt 1720529

Thrust Race
(Superseded to 736-0246)

$

$

Not available

41

MTD 1185732

Retaining Ring

$

$

Not available

42

MTD 1185734

Oil Seal

$

$

Not available

43

MTD 1732288

Thrust Race

$

$

Not available

44

MTD 1719271

Shim, .020

$

$

Not available

?45

Troy-Bilt 1107385

Flat Washer 1/2
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

Troy-Bilt 1700182

Gear Lube EP90 16 oz. Tube

Note: NI

$

$

Currently unavailable

$

$

Not available
