503 (590-503-100) - Cub Cadet 54" Mulcher 503/54" Mulcher Attachment Parts Diagram

54" Mulcher

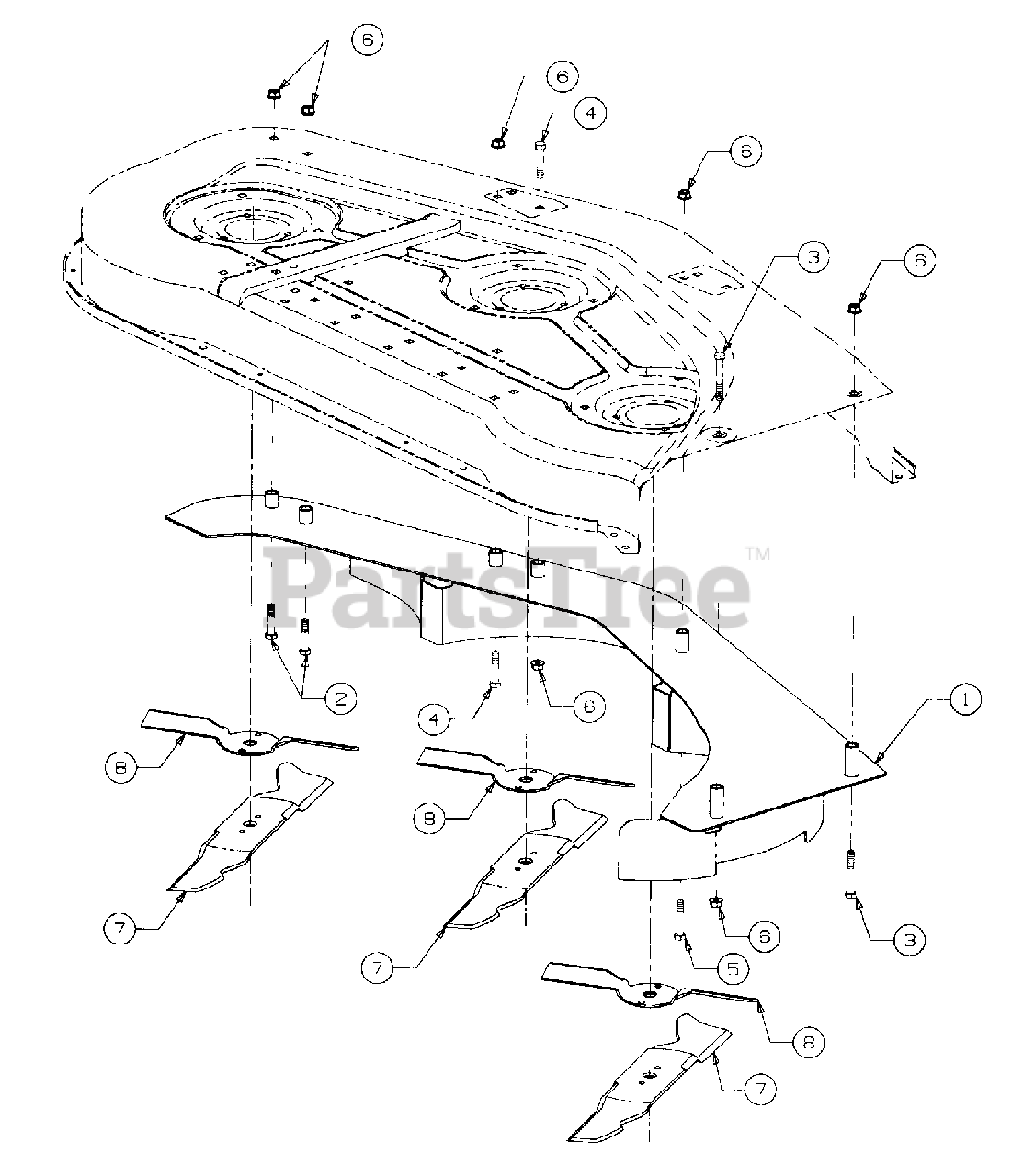

503/54" Mulcher Attachment Parts Diagram

  • Title

1

Cub Cadet 603-0221

Baffle Assy, 54" Mulching

Variations

Cub Cadet 603-0221-0498

BAFFLE,ASSEMBLY-54" (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 X 2.50 Lg GR5

$6.99

$

In Stock, Qty 16

0

4

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 742-3023

Blade, Mower, 18.5 Lg

$

$

Not available

8

Cub Cadet 742-3024

Blade, Mulching, 13.5 Lg

Variations

Cub Cadet 742-3024-0637

BLADE,MULCHING POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$
