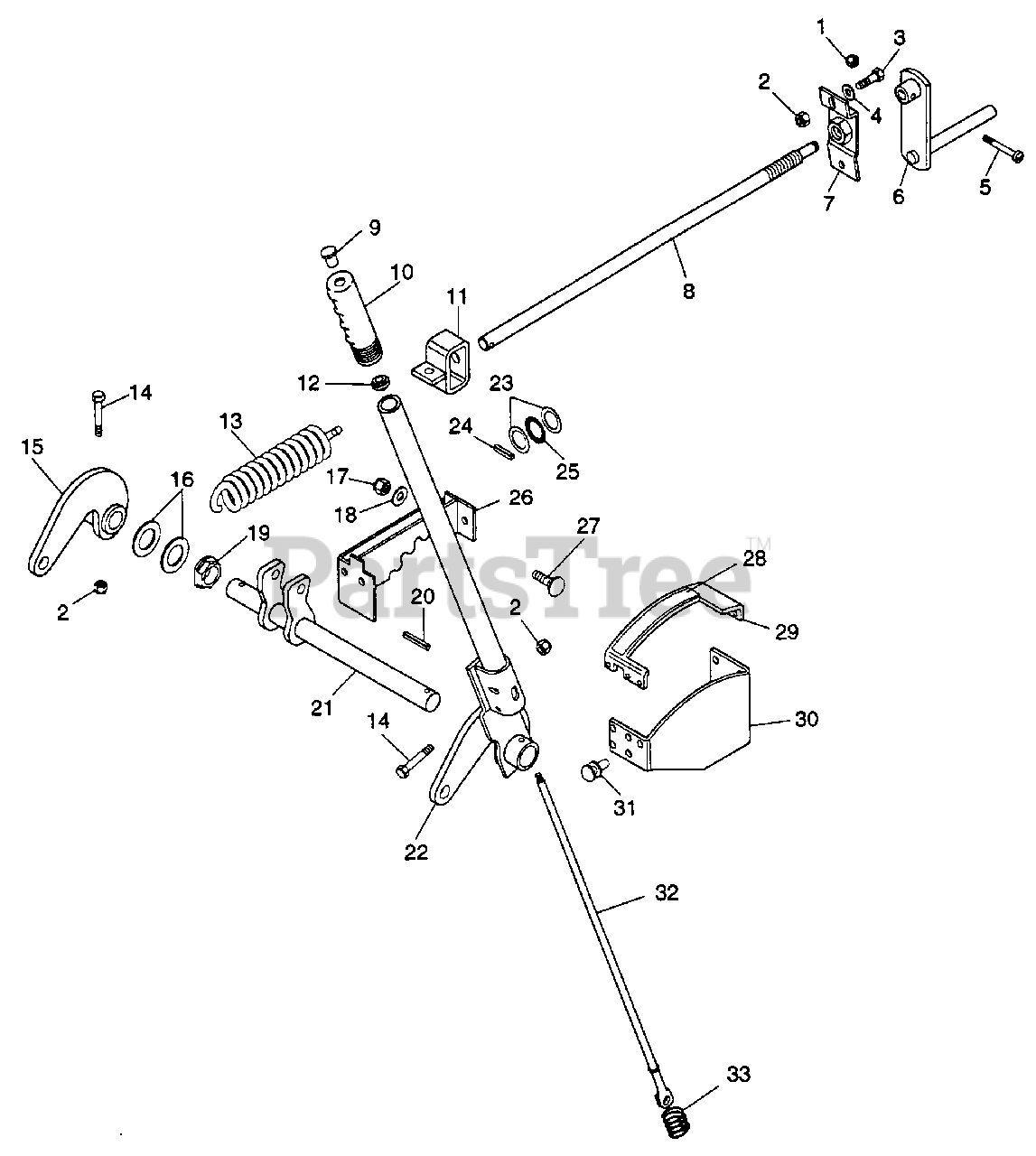

50271 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro LIFT SYSTEM Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro

LIFT SYSTEM Parts Diagram

  • Title

1

Gravely 190254

Nut-Lk 10-24 Ny Pl
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 180022

Blt-Hex .25-20 x 1.00 Pl Gr 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

4

Gravely 120392

Wshr-Fl-Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 159962

Scr-Mch 10-24 x 1.25 Phcr
(Superseded to 06111000)

$

$

Not available

6

Gravely 051723

Handle
(Superseded to 03489000)

$

$

Not available

7

Gravely 048981

Crank
(Superseded to 03489100)

$

$

Not available

8

Gravely 051724

Jackscrew
(Superseded to 03489200)

$

$

Not available

9

Gravely 049734

Knob
(Superseded to 07517800)

$

$

Not available

10

Gravely 011119

Grip, Flex
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 048946

Weldment Tube
(Superseded to 03491300)

$

$

Not available

12

Gravely 011117

Guide, Push Rod
(Superseded to 07517900)

$

$

Not available

13

Gravely 011272

Sg-Lift .244 x 1.75 x 7.6 Rate 70
(Superseded to 08334300)

$52.99

$

Usually ships in 4-12 days

0

14

Gravely 180042

Blt-Hex .25-20 x 1.75 Gr 2
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 049073

Weldment, Lift Hub
(Superseded to 03491200)

$

$

Not available

16

Gravely 017959

Wshr-Thrst 1.55 x 1.002 x .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

17

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 120393

Wshr-Fl-Stl .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 050259

Bshg-Flg 1.000 x 1.25 x .49 x 1.56 Hx
(Superseded to 05513800)

$

$

Not available

20

Gravely 273757

Pin-Sg .250 x 1.875
(Superseded to 05800100)

$

$

Not available

21

Gravely 048808

Lift Pivot
(Superseded to 03487700)

$

$

Not available

22

Gravely 052785

Lift Lever
(Superseded to 03491100)

$

$

Not available

23

Gravely 035344

Wshr-Thrst .507 x .917 x .031
(Superseded to 06426300)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 412281

Pin, Spring .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 048961

Brg-Thrst .502
(Superseded to 05405500)

$

$

Not available

26

Gravely 048977

Lift Quadrant
(Superseded to 03491000)

$

$

Not available

27

Gravely 126216

Blt-Carriage .31-18 x .75

$

$

Not available

28

Gravely 050669

Decal Lift
(Superseded to 07821800)

$

$

Not available

29

Gravely 049072

Cover, Top
(Superseded to 03491600)

$

$

Not available

30

Gravely 048978

Cover, Lift
(Superseded to 03491500)

$

$

Not available

31

Gravely 050089

Fastener
(Superseded to 07518900)

$

$

Not available

32

Gravely 052783

Rod, Push
(Superseded to 03491400)

$

$

Not available

33

Gravely 048970

Sg-Comp .055 x .845 x .750 Wld 10
(Superseded to 08326800)

$

$

Not available
