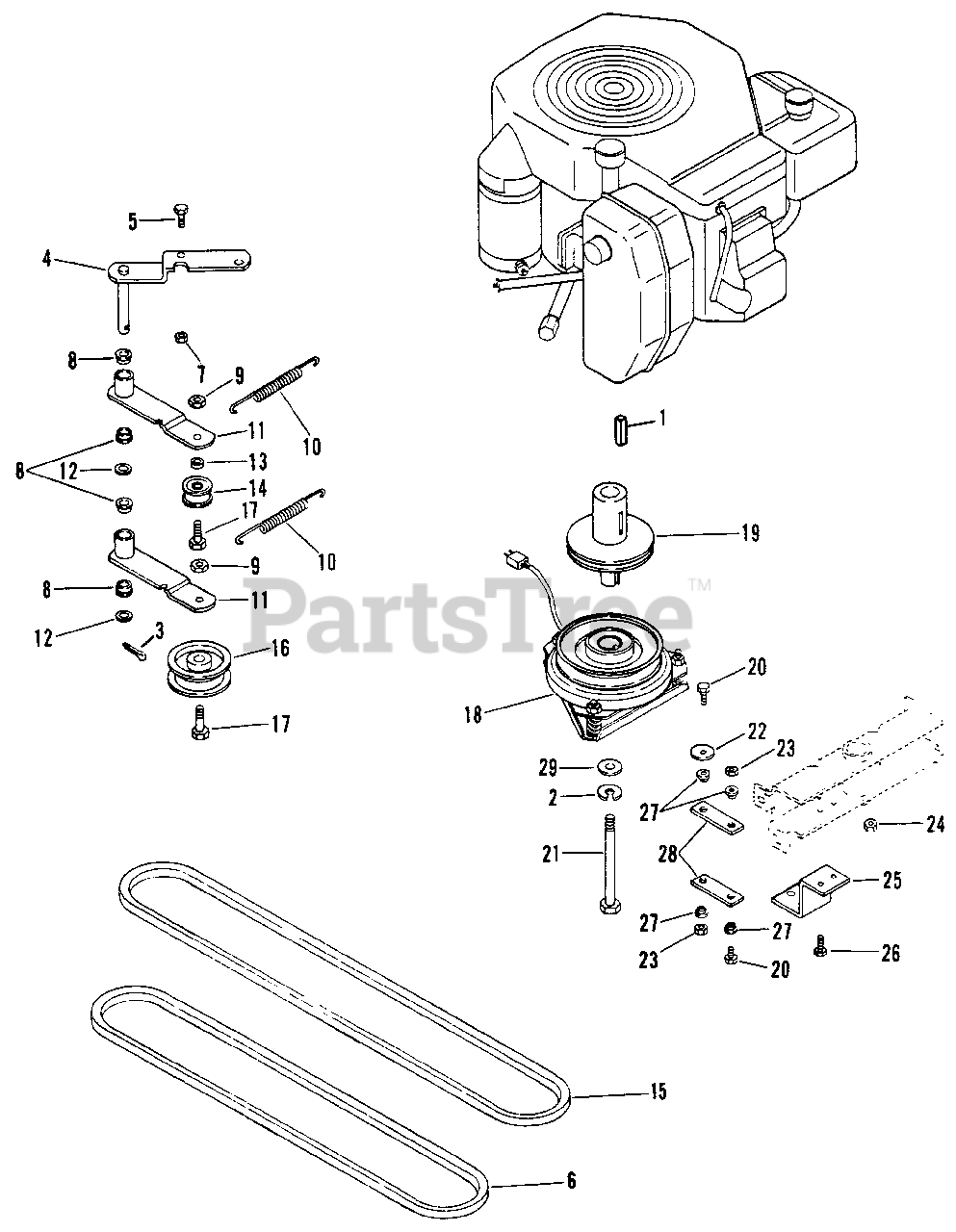

50267 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive MAIN DRIVE Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 044379

Washer, Special
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

2

Gravely 131100

Washer, Lock 7/16 SP Heavy
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 120123

Pin, Cotter .125 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 049673

Weldment, Idler Pivot

$

$

Not available

5

Gravely 180077

Bolt, Hex 5/16-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 049995

V-Belt, Jackshaft
(Superseded to 07214900)

$48.99

$

Usually ships in 4-12 days

0

7

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 036057

Bushing, Flange
(Superseded to 05503700)

$0.99

$

In Stock, Qty 17

0

9

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 050234

Extension Spring
(Superseded to 08320000)

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 050235

Belt, Idler Arm
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

12

Gravely 417098

Washer, Flat .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 039145

Bushing, .37 x .62 x .25
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

14

Gravely 045308

Idler
(Superseded to 07313200)

$

$

Not available

15

Gravely 049994

Belt, Transaxle
(Superseded to 07206400)

$69.99

$

Usually ships in 4-12 days

0

16

Gravely 035851

Idler
(Superseded to 07311100)

$39.99

$

In Stock, only 3 left!

0

17

Gravely 180126

Bolt, Hex 3/8-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

18

Gravely 050236

Clutch, Electric
(Superseded to 03450500)

$362.99

$

Usually ships in 4-12 days

0

19

Gravely 050237

Shaft, Extension
(Superseded to 21299000)

$

$

Not available

20

Gravely 159957

Screw, Mach. 10-24 x 1.00 PHCR
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 049232

Bolt, Hex M10-1.5 x 140 mm
(Superseded to 05943700)

$

$

Not available

22

Gravely 012694

Washer, Flat .265 x 1.250 x .063
(Superseded to 06403700)

$

$

Not available

23

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 050238

Bracket, Torque
(Superseded to 03452300)

$

$

Not available

26

Gravely 180020

Bolt, Hex 1/4-20 x .750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 050239

Special Washer
(Superseded to 03015600)

$25.99

$

Usually ships in 4-12 days

0

28

Gravely 050240

Link
(Superseded to 03036200)

$

$

Not available
