50267 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive HYDROSTATIC DRIVE Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

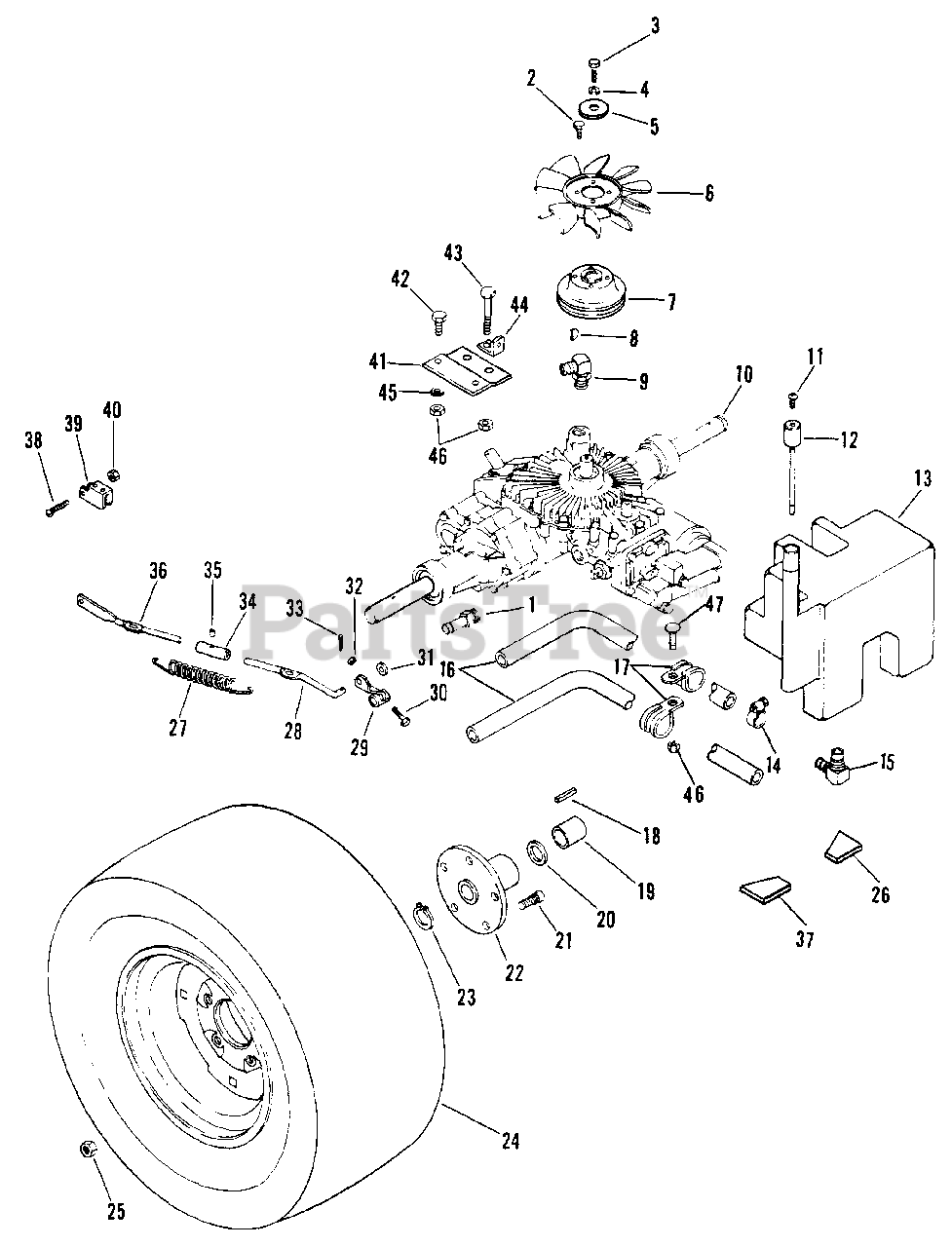

HYDROSTATIC DRIVE Parts Diagram

  • Title

1

Gravely 045226

Adapter, #4604-10-10
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 159920

Screw, Mach. 10-24 x .50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

3

Gravely 180020

Bolt, Hex 1/4-20 x .750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 050326

Washer, Special
(Superseded to 06425400)

$

$

Not available

6

Gravely 045321

Fan
(Superseded to 03570000)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 050190

Pulley, Transaxle
(Superseded to 03488700)

$

$

Not available

8

Gravely 431787

Key, Woodruff .187 x .625 Hrd. #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

9

Gravely 050192

Fitting
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

10

Gravely 050193

Transaxle
(Superseded to 20976500)

$

$

Not available

11

Gravely 051006

Screw, Vent
(Superseded to 07010700)

$

$

Not available

12

Gravely 050195

Dipstick
(Superseded to 03449800)

$

$

Not available

13

Gravely 047635

Tank, Hydraulic
(Superseded to 03494600)

$164.99

$

Usually ships in 4-12 days

0

14

Gravely 021247

Clamp, .88 DIA. Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

15

Gravely 049678

Fitting, O-Ring Barb S/A
(Superseded to 07022700)

$

$

Not available

16

Gravely 046379

Hose, Hydraulic
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 050395

Clamp, Steel 1.00
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 050199

Key, Straight
(Superseded to 06602100)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 050200

Bushing, St. 1.44 x 1.01 x 1.92 Stl.
(Superseded to 03447600)

$

$

Not available

20

Gravely 017959

Race, Bearing Thrust .095
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

21

Gravely 050201

Lug Bolt
(Superseded to 07008300)

$

$

Not available

22

Gravely 050202

Hub, Wheel
(Superseded to 03438600)

$176.99

$

Usually ships in 4-12 days

0

23

Gravely 050203

Snap Ring
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

24

Gravely 049308

Wheel, 23 x 10.50-12 2-Ply
(Superseded to 07133500)

$

$

Not available

25

Gravely 039687

Nut, Lug 7/16-20
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 050581

Pad, Tank L.H.
(Superseded to 03497800)

$

$

Not available

27

Gravely 050204

Spring, Extension
(Superseded to 08325300)

$

$

Not available

28

Gravely 050205

Front Dump Valve Rod
(Superseded to 03455400)

$

$

Not available

29

Gravely 050206

Dump Vavle Arm
(Superseded to 03453900)

$

$

Not available

30

Gravely 180022

Bolt, Hex 1/4-20 x 1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

31

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 121222

Pin, Cotter .094 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

34

Gravely 050207

Collar
(Superseded to 03456000)

$

$

Not available

35

Gravely 418634

Pin, Roll .125 x .625
(Superseded to 05808700)

$

$

Not available

36

Gravely 050208

Rear Dump Valve Rod
(Superseded to 03453700)

$

$

Not available

37

Gravely 050582

Pad, Tank R.H.
(Superseded to 03497900)

$

$

Not available

38

Gravely 159957

Screw, Mach. 10-24 x 1.0 PHCR
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

39

Gravely 050209

Latch
(Superseded to 03429700)

$

$

Not available

40

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 050210

Bracket, Transaxle Mounting
(Superseded to 03447500)

$22.99

$

Usually ships in 4-12 days

0

42

Gravely 180121

Bolt, Hex 3/8-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

43

Gravely 180137

Bolt, Hex 3/8-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

44

Gravely 050211

Spring Anchor
(Superseded to 03458100)

$

$

Not available

45

Gravely 446470

Washer, Flat .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

46

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

47

Gravely 120915

Bolt, 3/8-16 x 1.00 Rd Hd Sq Nk

$

$

Not available
