50267 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive FRONT AXLE Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

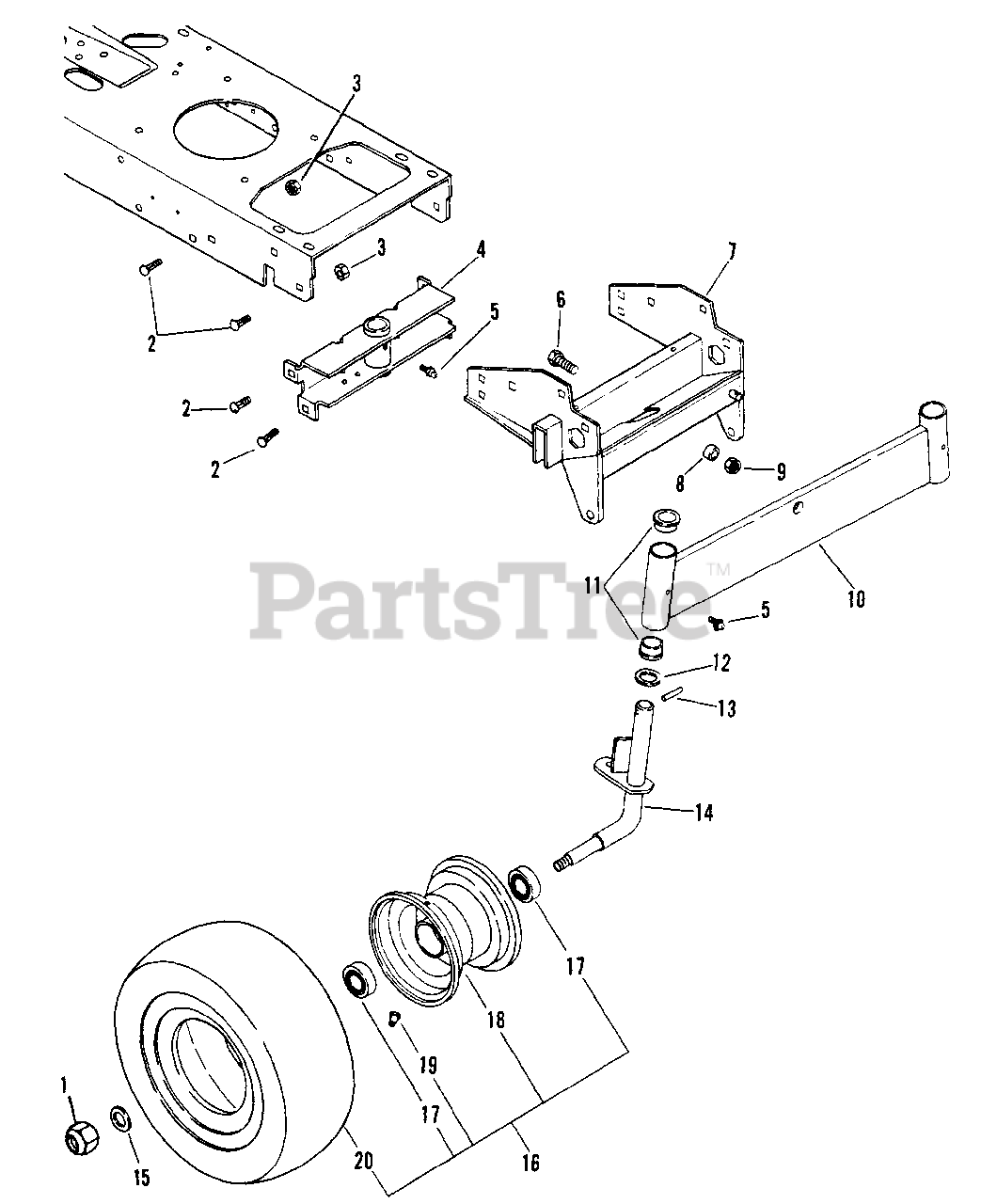

FRONT AXLE Parts Diagram

  • Title
1

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 120915

Bolt, 3/8-16 x 1.00 Rd Hd Sq Nk

$

$

Not available

3

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 050174

Channel, Pivot
(Superseded to 03450800)

$

$

Not available

5

Gravely 036160

Spin Drive Zerk Fitting
(Superseded to 07012600)

$

$

Not available

6

Gravely 180177

Bolt, Hex 1/2-13 x 1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 050175

Support, Front Axle
(Superseded to 03451300)

$

$

Not available

8

Gravely 036132

Spacer
(Superseded to 03503200)

$

$

Not available

9

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

10

Gravely 048564

Weldment, Front Axle
(Superseded to 03487800)

$

$

Not available

11

Gravely 050176

Bushing, Flange Steel
(Superseded to 05510600)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 017959

Bearing, Thrust Race
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

13

Gravely 413315

Pin, Spring .250 x 1.500
(Superseded to 05808500)

$

$

Not available

14

Gravely 048262

Weldment, Kingpin(R.H.)
(Superseded to 21285100)

Note: (R.H.)

$

$

Not available

14

Gravely 048263

Weldment, Kingpin(L.H.)
(Superseded to 21285200)

Note: (L.H.)

$

$

Not available

15

Gravely 131017

Washer, Flat .812 x 1.496 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 049133

Assembly, Front Wheel
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

17

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

18

Gravely 051005

Assembly, Rim
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

19

Gravely 011191

Assemby, Valve Stem
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

20

Gravely 048923

Tire, Front 16 x 6.50-8
(Superseded to 07122000)

$82.99

$

Usually ships in 4-12 days

0
