5024 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) INTERLOCK LEVER ASSEMBLY Parts Diagram

Walk-Behind Mower

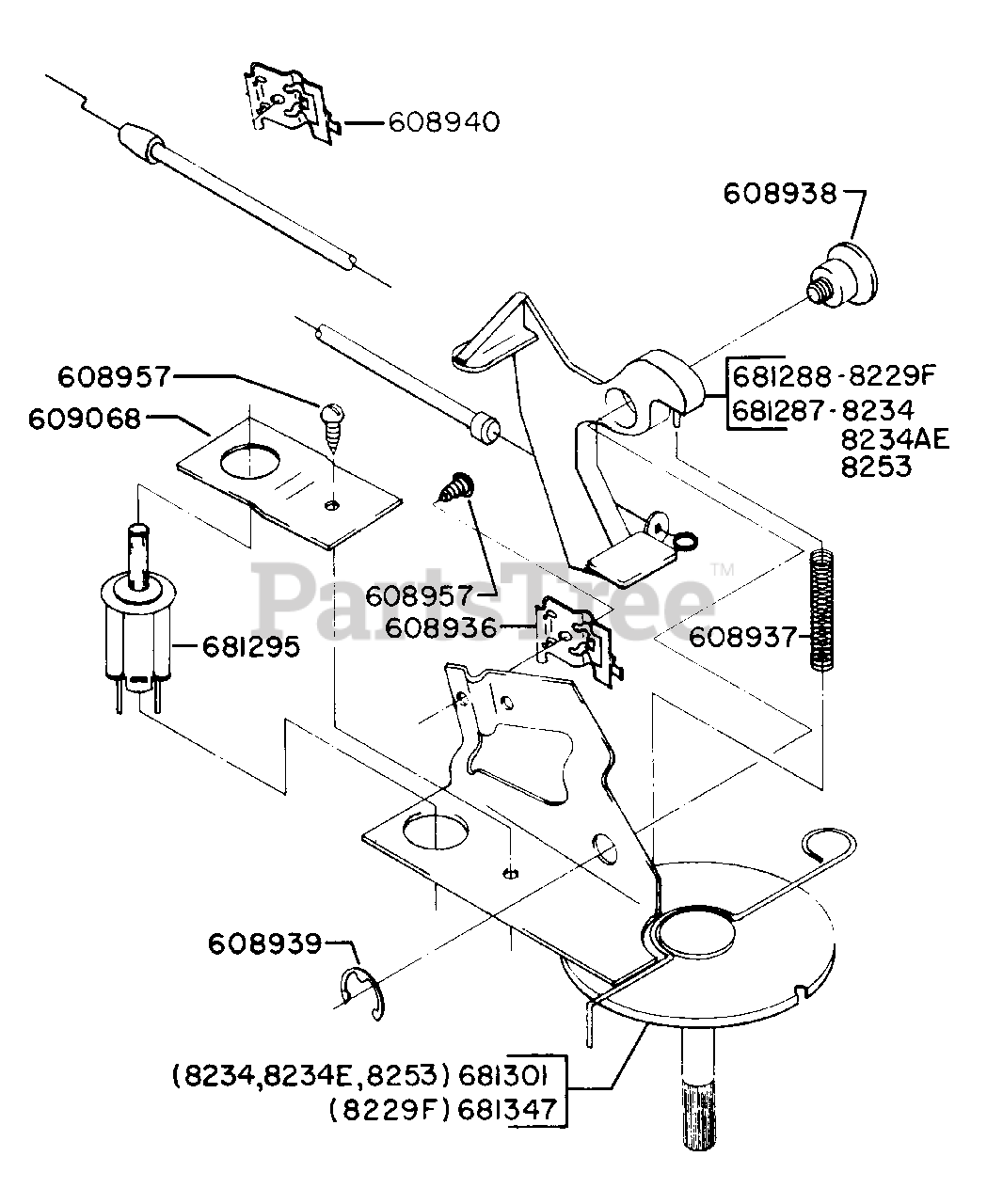

INTERLOCK LEVER ASSEMBLY Parts Diagram

  • Title

Lawn-Boy 681365

Cup & Pin Assy.

Note: Use on Models 8234, 8234AE & 8253 0nly

$

$

Not available

Lawn-Boy 681347

Cup & Pin Assy.

Note: Use on Model 8229F Only

$

$

Not available

Lawn-Boy 681287

Lever Assy.

Note: Use on Models 8234, 8234AE & 8253 0nly

$

$

Not available

Lawn-Boy 681288

Lever Assy.

Note: Use on Model 8229F Only

$

$

Not available

$

$

Not available

Lawn-Boy 608936

Clip
(Superseded to 682603)

$

$

Not available

Lawn-Boy 608939

Clip-Retaining

$

$

Not available

Lawn-Boy 681295

Switch

Note: Use on Model 8234 AE Only

$

$

Not available

$20.99

$

Usually ships in 3-6 days

0

Lawn-Boy 609068

Plate Switch

Note: Use on Model 8234 AE Only

$

$

Not available

Lawn-Boy 608957

Screw

Note: Two Req'd. on Elec Start Only

$

$

Not available

$6.99

$

In Stock, only 2 left!

0

Lawn-Boy 681328

Wire Harness (Not Shown)

Note: Use on Model 8234 AE Only

$

$

Not available

Lawn-Boy 608942

Insulation Pod (Not Shown)

Note: Use on Model 8234 AE Only

$

$

Not available
