5024 - Lawn-Boy Walk-Behind Mower (SN: 500000001 - 599999999) (1975) MODEL D-433 MAGNETO AND STARTER PARTS LIST MODEL USED ON: 5024 Parts Diagram

Walk-Behind Mower

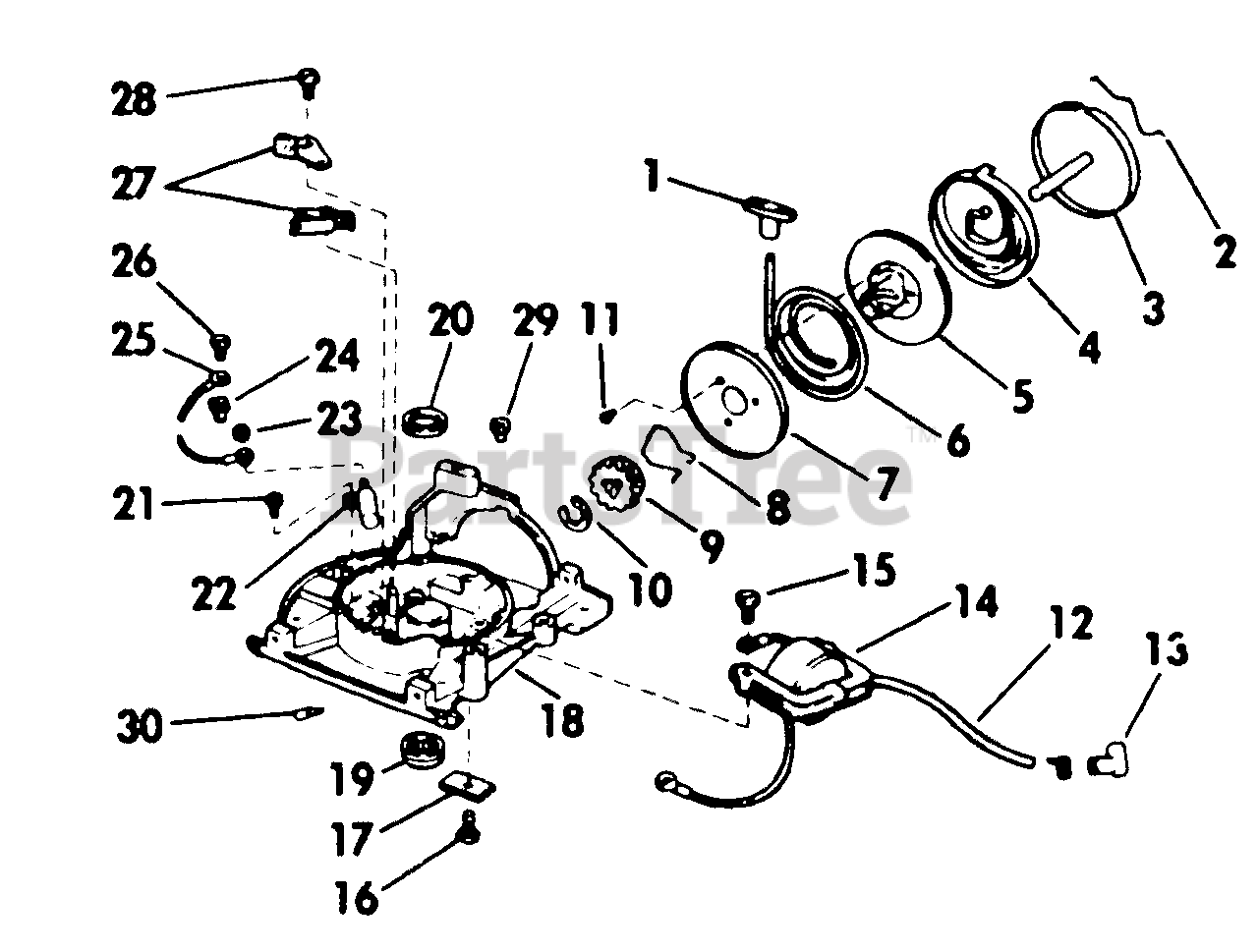

MODEL D-433 MAGNETO AND STARTER PARTS LIST MODEL USED ON: 5024 Parts Diagram

  • Title
1

Lawn-Boy 606863

Handle-Starter
(Superseded to 609477)

$

$

Not available

2

Lawn-Boy 604573

Spring-Starter Rope Retainer

$5.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 678112

Spring-Cup-Pin Assy.
(Superseded to 681353)

$

$

Not available

4

Lawn-Boy 604257

Spring-Starter

$40.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 604646

Pulley-Starter

$

$

Not available

6

Lawn-Boy 604279

Rope-Starter

$

$

Not available

7

Lawn-Boy 604244

Plate-Starter Pulley
(Superseded to 681896)

$

$

Not available

8

Lawn-Boy 604260

Spring-Starter Pinion

$14.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 607547

Pinion-Starter

$

$

Not available

10

Lawn-Boy 604259

Retainer-Push-On

$

$

Not available

11

Lawn-Boy 602821

Screw-Threaded Cutting Starter

$

$

Not available

12

Lawn-Boy 678117

High Tension Lead Assy.

$20.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 580339

Cover & Tertninal Assy.
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 678539

Coil & lamination Assy.

$

$

Not available

15

Lawn-Boy 604744

Scr.-Lamination Mtg.

$

$

Not available

16

Lawn-Boy 604857

Scr.-Starter Attach.

$7.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604261

Clamp-Starter Pin

$

$

Not available

18

Lawn-Boy 679365

Arm. Pl., Brg. & Oil Seal Assy.

$

$

Not available

19

$

$

Not available

20

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

21

Lawn-Boy 510193

Scr.-Cond. Mtg.

$

$

Currently unavailable

22

Lawn-Boy 677299

Cond. & Nut Assy.

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 604256

Grommet-Nylon

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 678116

Terminal & Lead Assy.

$

$

Not available

26

Lawn-Boy 604986

Scr.-Shut-Off Sw.

$

$

Not available

27

Lawn-Boy 677254

Brkr. Base & Arm Assy.

$54.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 303212

Scr.-Breaker Base

$

$

Not available

29

Lawn-Boy 607255

Grommet

$

$

Not available

30

$

$

Not available
