5024 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) MODEL D-433 CARBURETOR PARTS LIST MODELS USED ON: 5024-5064-7024-7084 Parts Diagram

Walk-Behind Mower

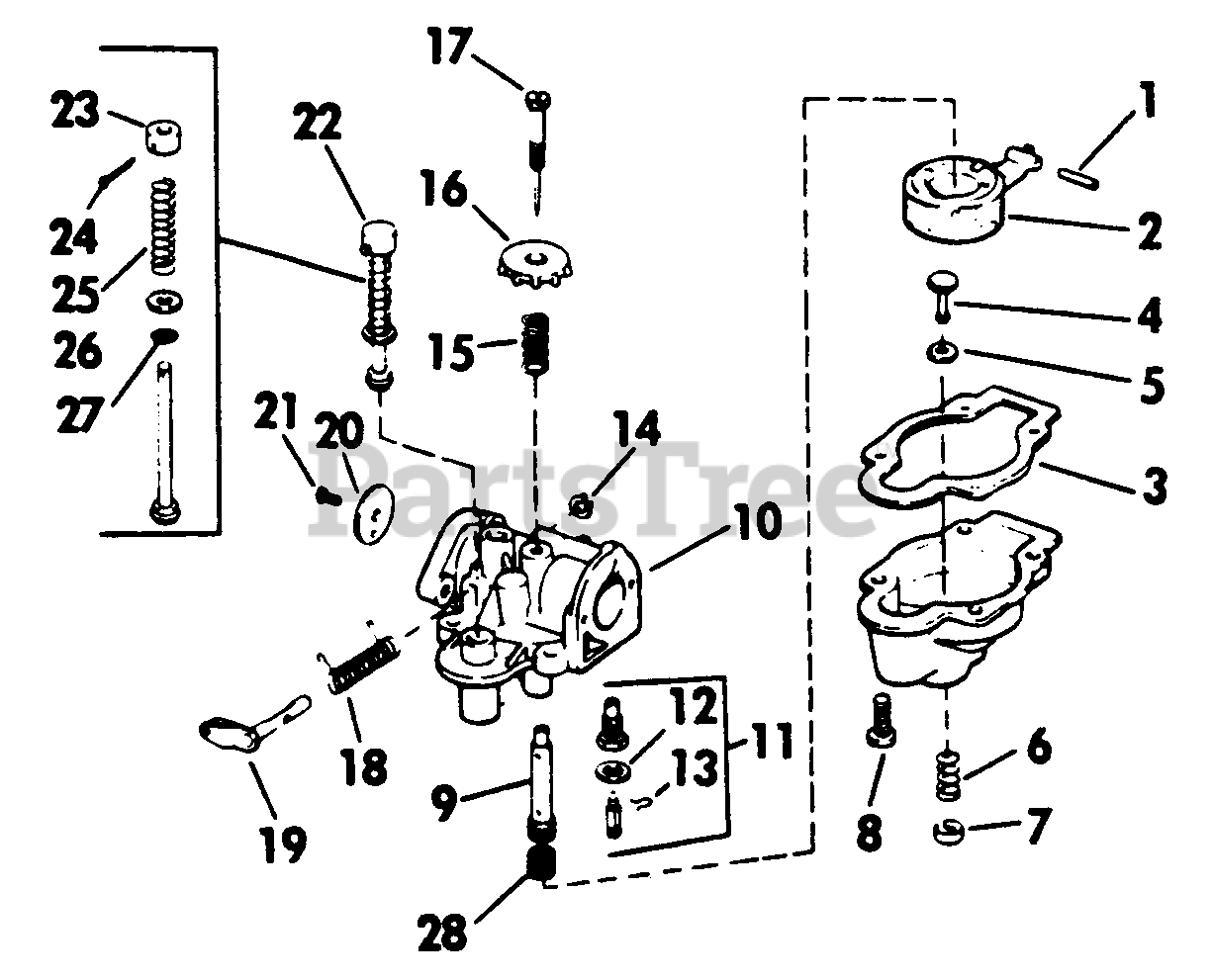

MODEL D-433 CARBURETOR PARTS LIST MODELS USED ON: 5024-5064-7024-7084 Parts Diagram

  • Title
+

Lawn-Boy 681069

Float Chamber & Dump Valve Assy.

$89.99

$

Usually ships in 3-6 days

0

+

Lawn-Boy 681071

Carburetor Assy.

$

$

Not available

1

Lawn-Boy 300096

Pin-Float Arm Hinge
(Superseded to 92-6389)

$5.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 678113

Float and Arm Assy.

$

$

Not available

3

Lawn-Boy 604283

Gasket-Float Chamber

$5.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 607570

Valve Stem

$29.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 607571

Valve Seat

$1.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 607573

Valve Spring

$

$

Not available

7

Lawn-Boy 607572

Valve Keeper

$4.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 306552

Screw-Float Chamber

$

$

Not available

9

Lawn-Boy 605140

Nozzle
(Superseded to 612214)

$82.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 681070

Carburetor Body Assy.

$

$

Not available

11

Lawn-Boy 678882

Float Valve & Seat
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 301996

Washer-Float Valve Seat

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 604286

Grip Ring

$3.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 607126

Spring-Needle Adj.

$

$

Not available

16

Lawn-Boy 602495

Knob-Needle Adj.

$7.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 677039

Needle Assy.

$

$

Not available

18

Lawn-Boy 604296

Spring-Throttle

$

$

Not available

19

Lawn-Boy 678119

Throttle Shaft & Lever Assy.

$

$

Not available

20

Lawn-Boy 604295

Disc-Throttle

$

$

Not available

21

Lawn-Boy 605522

Screw-Throttle Shaft Disc

$1.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 678414

Primer Assy.

$71.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 605031

Knob Primer

$

$

Not available

24

Lawn-Boy 304637

Cotter Pin

$

$

Not available

25

Lawn-Boy 605029

Spring Compression

$

$

Not available

26

Lawn-Boy 604300

Washer-Plain

$

$

Not available

27

Lawn-Boy 302329

"O" Ring

$

$

Not available

28

$21.99

$

Usually ships in 3-6 days

0
