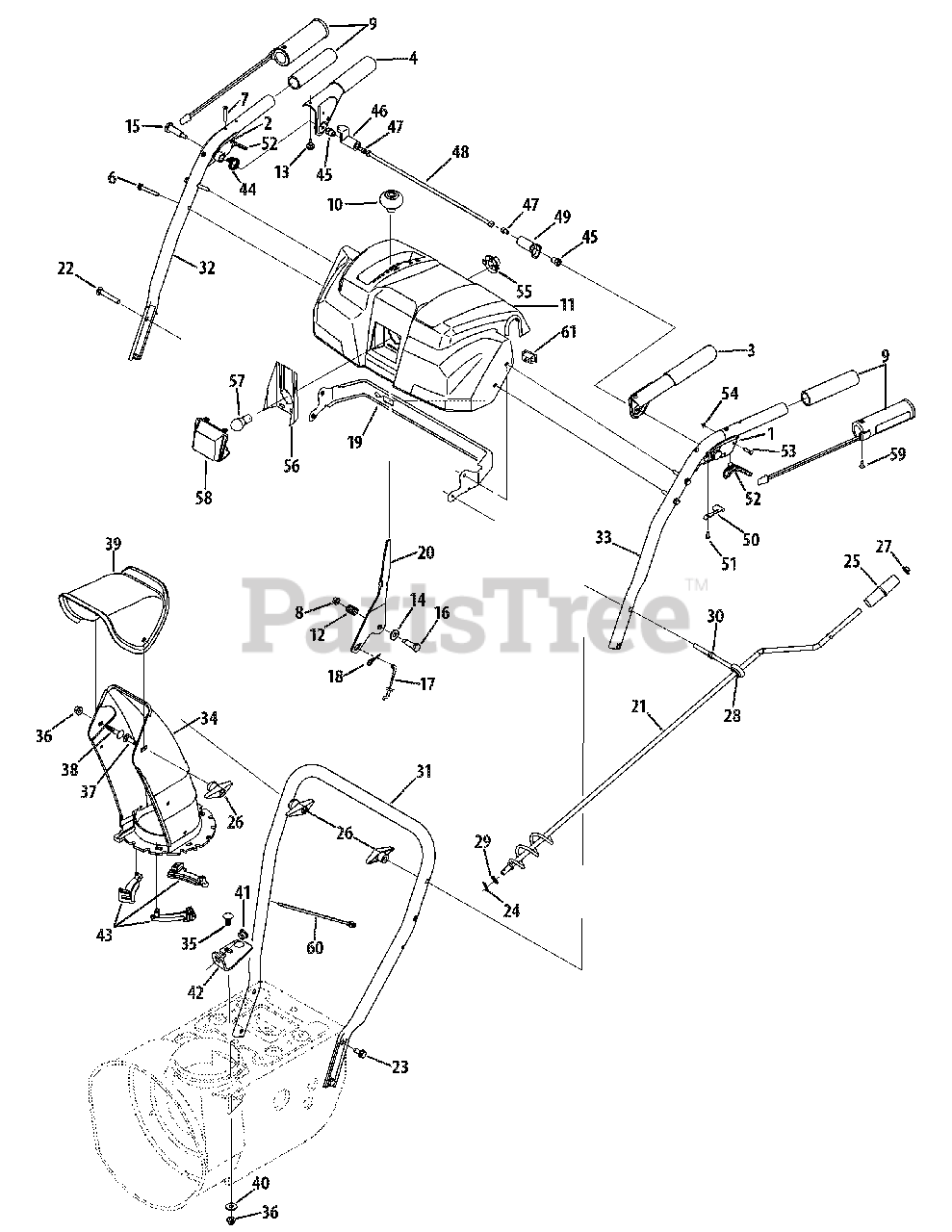

5024 (31AH63N2011) - Troy-Bilt Storm 24" Snow Thrower (2008) N-Style Handle, Frame & Discharge Chute Parts Diagram

Storm 24" Snow Thrower

N-Style Handle, Frame & Discharge Chute Parts Diagram

  • Title
1

Troy-Bilt 631-04133A

Handle Assembly Lock LH

$15.99

$

In Stock, Qty 7

0

2

Troy-Bilt 631-04134B

Handle Assembly Lock RH

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-04105B

Hande Assembly, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 684-04106B

Handle Assembly Engagement RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 625-04039

Wire Harness
(Superseded to 625-04039P)

Note: Not Shown

$

$

Not available

5

Troy-Bilt 725-04216A

Wire Harness w/ Htd Grips (NS)
(Superseded to 725-04216B)

$75.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-04586

Screw, 1/4-20, 1.625

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1233

Machine Screw, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 712-04064

Flange Lock Nut,, 1/4-20

$3.99

$

In Stock, Qty 20+

0

$11.99

$

In Stock, Qty 8

0

9

Troy-Bilt 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 731-05334

N-Style Panel (w/o cutout)
(Superseded to 731P05334C)

$72.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 731-05332

N-Style Panel (w.cutout)
(Superseded to 931-04181A)

$59.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 732-0193

Spring, .39 x .60 x.88

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 735-0199A

Rubber Bumper, .62 OD x .22

$7.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-0267

Flat Washer, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 738-04122

Shoulder Screw, .43 x 1.34, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-04125

Shoulder Screw, .374 Dia x 1.05

$4.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$20.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 790-00248A

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Troy-Bilt 790-00248A-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

20

Troy-Bilt 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

Troy-Bilt 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 5

0

$27.99

$

In Stock, Qty 5

0

21

Troy-Bilt 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

Troy-Bilt 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 710-0449

Carriage Screw, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-04484

Hex Scerw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 720-0201A

Crank Knob, 1.0 Dia x 3.2

$10.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 720-0284

Wing, Knob

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 726-0100

Push Cap, 3/8 Rod

$4.49

$

In Stock, Qty 17

0

28

Troy-Bilt 735-0234

Grommet, .44ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 747-04263

Chute Crank Eye Bolt

$9.49

$

In Stock, only 2 left!

0

31

Troy-Bilt 749-04138A

Lower Handle

Variations

Troy-Bilt 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 749-04141A

Upper Handle RH
(Superseded to 749-04190A)

Variations

Troy-Bilt 749-04141A-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141A-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 749-04142A

Upper Handle LH
(Superseded to 749-04191A)

Variations

Troy-Bilt 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 631-04131B

Lower Chute

$37.99

$

In Stock, Qty 7

0

35

Troy-Bilt 710-0276

Carriage Bolt, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18, 1.0

$4.49

$

In Stock, Qty 10

0

38

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-04426A

Upper Chute w/Label
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

40

Troy-Bilt 736-0159

Washer, .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 741-0475

Plastic Bushing, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

43

Troy-Bilt 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

45

Troy-Bilt 712-04081A

Shoulder Nut

$7.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 731-04894C

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 9

0

47

Troy-Bilt 710-04354

Cap Screw, 1/4-20 x .375

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

49

Troy-Bilt 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 731-04954

Steering Triggers

$5.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 19

0

55

Troy-Bilt 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 777X41805

Lens Reflector Label

$9.49

$

In Stock, only 4 left!

0

57

Troy-Bilt 725-04213

Bulb
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 10

0

58

Troy-Bilt 731-05319

Lens Reflector Label

$13.99

$

In Stock, only 2 left!

0

59

$4.49

$

In Stock, Qty 5

0

60

Troy-Bilt 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

Troy-Bilt TC-35062

Starter Key

Note: Not Shown

$3.99

$

In Stock, only 4 left!

0
