5022 EX (1695091) - Simplicity 22" Snow Thrower (2006) Electric Starter Group Parts Diagram

22" Snow Thrower

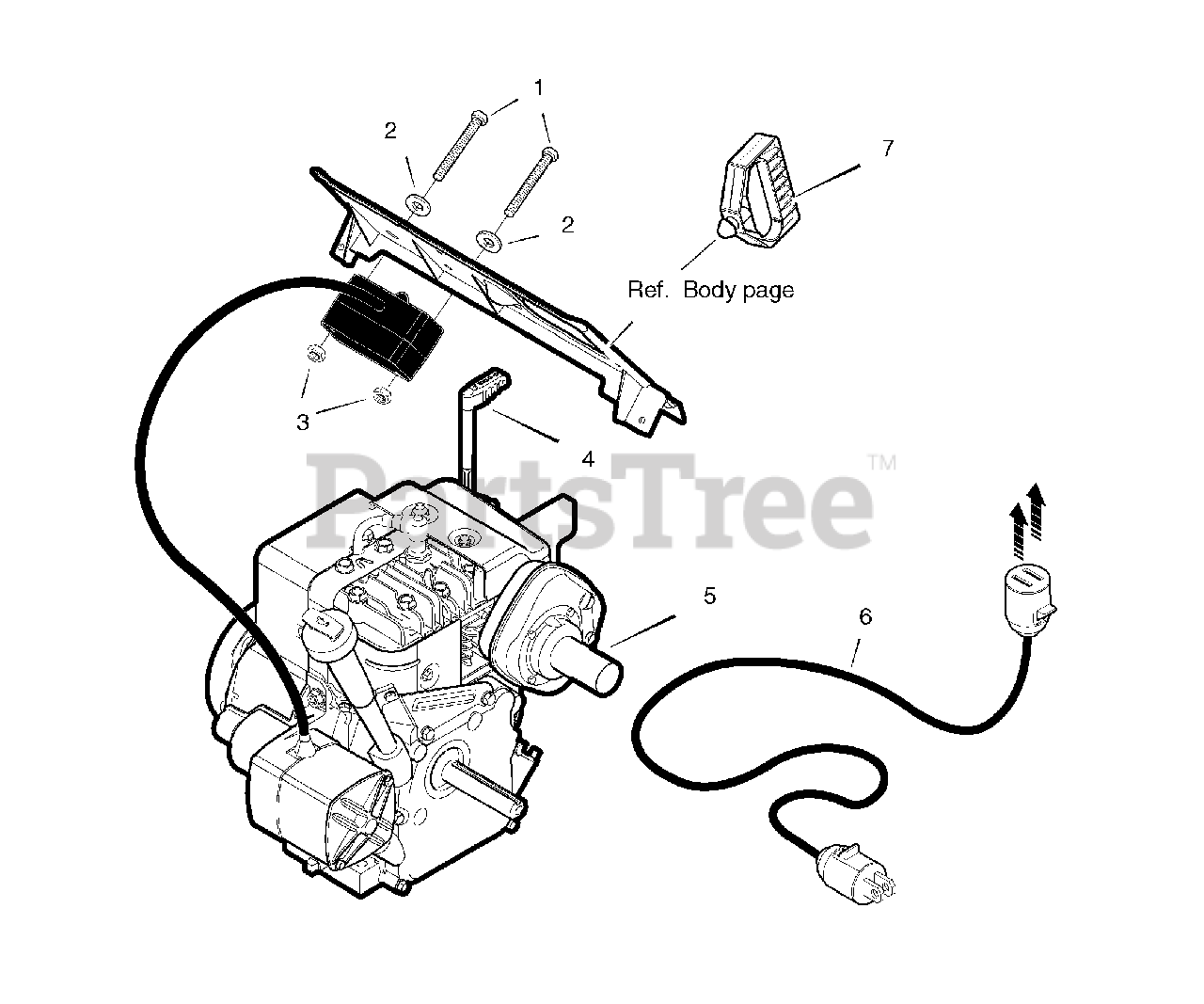

Electric Starter Group Parts Diagram

  • Title

1

Simplicity 311633MA

SCREW, No. 8-32 x 3.00

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 414106MA

WASHER, FLAT No. 8

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 271163MA

NUT, Keps No. 8

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1502179MA

* LEVER, Choke
(Superseded to 790553)

$19.99

$

In Stock, only 1 left!

0

5

Simplicity 699565

Kit, Muffler Assembly

$53.99

$

Usually ships in 2-12 days

0

5-1

Simplicity 1502002MA

* MUFFLER
(Superseded to 699565)

$53.99

$

Usually ships in 2-12 days

0

5-2

Simplicity 1502003MA

* GASKET, Muffler
(Superseded to 691880)

$5.49

$

In Stock, Qty 5

0

5-3

Simplicity 1502004MA

* BOLT, Muffler
(Superseded to 691665)

$7.99

$

In Stock, only 4 left!

0

5-4

Simplicity 71060MA

WASHER, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5-5

Simplicity 71037MA

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Simplicity 1X81MA

BOLT, Hex 5/16-18
(Superseded to 001X81MA)

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

6

Simplicity 761332MA

CORD, Electric 220V

$24.99

$

Usually ships in 2-12 days

0

7

Simplicity 1502022MA

GRIP, Mitten
(Superseded to 699334)

$13.99

$

In Stock, only 1 left!

0
