5022 EX (1695091) - Simplicity 22" Snow Thrower (2006) Chute System Group Parts Diagram

22" Snow Thrower

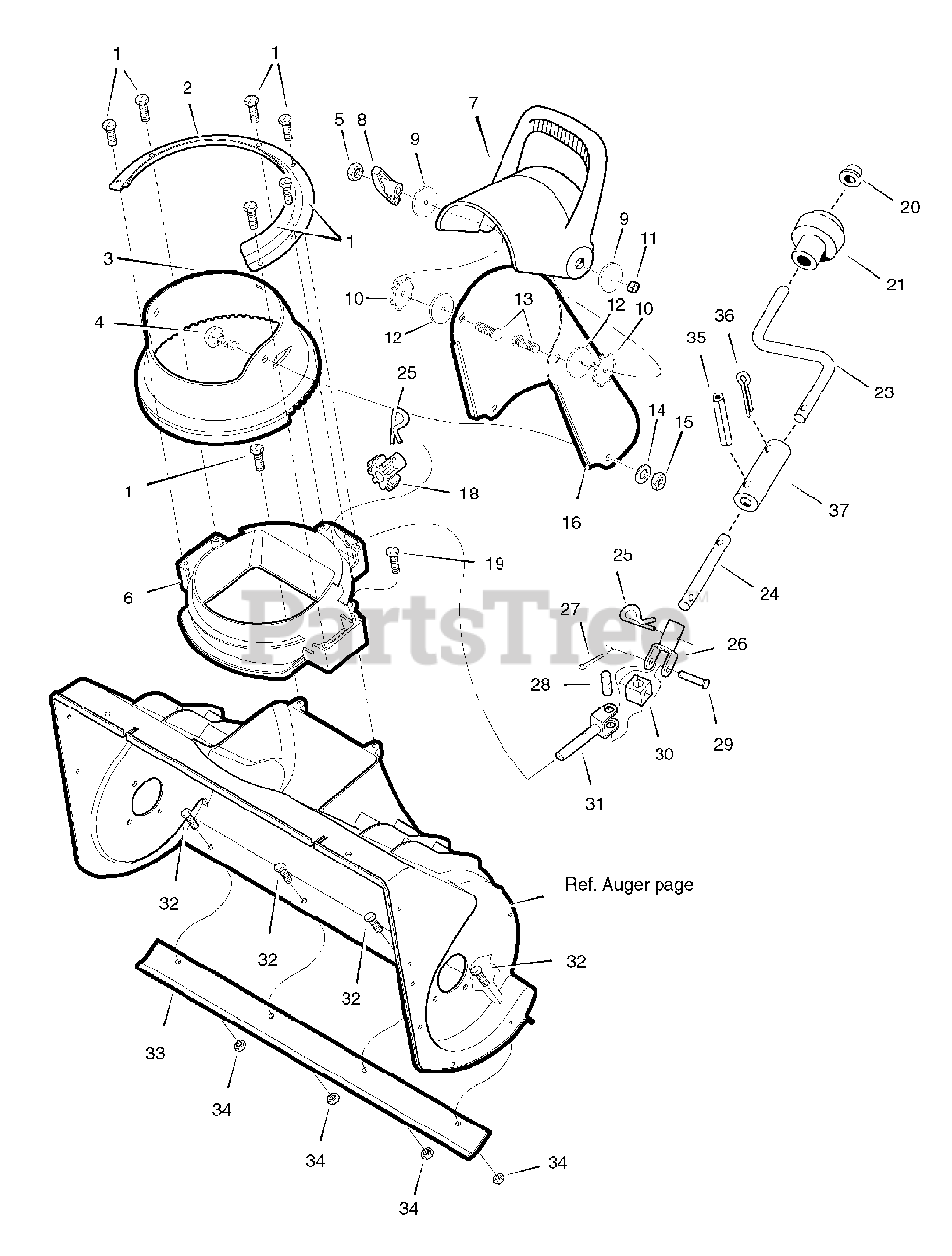

Chute System Group Parts Diagram

  • Title
1

Simplicity 313685MA

SCREW 1/4-14

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1502131MA

RETAINER, Chute Ring

$

$

Not available

3

Simplicity 1740060MA

RING, Chute

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 340720MA

BOLT, Carriage 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 71037MA

NUT 5/16-18 Reghex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1501848MA

NECK, Chute

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 1716631MA

CHUTE, 22" Upper

$

$

Not available

8

Simplicity 57171MA

T-KNOB, 3.00 Plastic
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 7

0

9

Simplicity 1920283MA

WASHER, Flat 1 - 1/2 O.D

$

$

Not available

10

Simplicity 1716642MA

LOCKWASHER, Shakeproof

$

$

Not available

11

Simplicity 71391MA

LOCKNUT, Hex 5/16-18

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1716624MA

WASHER, Rubber 1-1/2 O.D

$

$

Not available

13

Simplicity 1740384MA

BOLT, Upper Chute

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

15

Simplicity 71038MA

NUT, 5/16-18 Hex, Nylock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1716612MA

CHUTE, Lower

$

$

Not available

18

Simplicity 1501067MA

GEAR, 9-Tooth

$17.99

$

In Stock, only 2 left!

0

19

Simplicity 313685MA

SCREW, 1/4-14 x 3/4

$5.49

$

Usually ships in 2-12 days

0

20

$

$

Not available

21

Simplicity 1714084MA

KNOB, Crank

$

$

Not available

23

Simplicity 1733369MA

CRANK, Chute Rotation
(Superseded to 1733369SM)

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1720576MA

HANDLE, Chute Rotator Lower

$

$

Not available

25

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1501075YZMA

YOKE ASSEMBLY, Adapter

$10.99

$

In Stock, only 1 left!

0

27

Simplicity 579493MA

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

29

Simplicity 578309MA

PIN, Clevis

$5.49

$

In Stock, Qty 7

0

30

Simplicity 578063MA

HOUSING, Universal

$5.49

$

In Stock, only 3 left!

0

31

Simplicity 1501873MA

ROD, Lower Crank

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 302628MA

SCREW 1/4-20 x 3/4

$4.49

$

In Stock, Qty 7

0

33

Simplicity 1501863MA

BLADE, Scraper

$24.99

$

In Stock, only 1 left!

0

34

Simplicity 15X143MA

LOCKNUT, Hex 1/4-20

$4.99

$

In Stock, Qty 13

0

35

Simplicity 1740347MA

PIN, Spring 5/32 x 1.00

$3.49

$

Usually ships in 2-12 days

0

36

Simplicity 1740346MA

CLIP, Hairpin 3/32 x 1.625 Black

$2.99

$

Usually ships in 2-12 days

0

37

Simplicity 1720577MA

CHUTE HANDLES, Splice

$

$

Not available
