5022 EX (1695091) - Simplicity 22" Snow Thrower (2006) Auger and Housing Group Parts Diagram

22" Snow Thrower

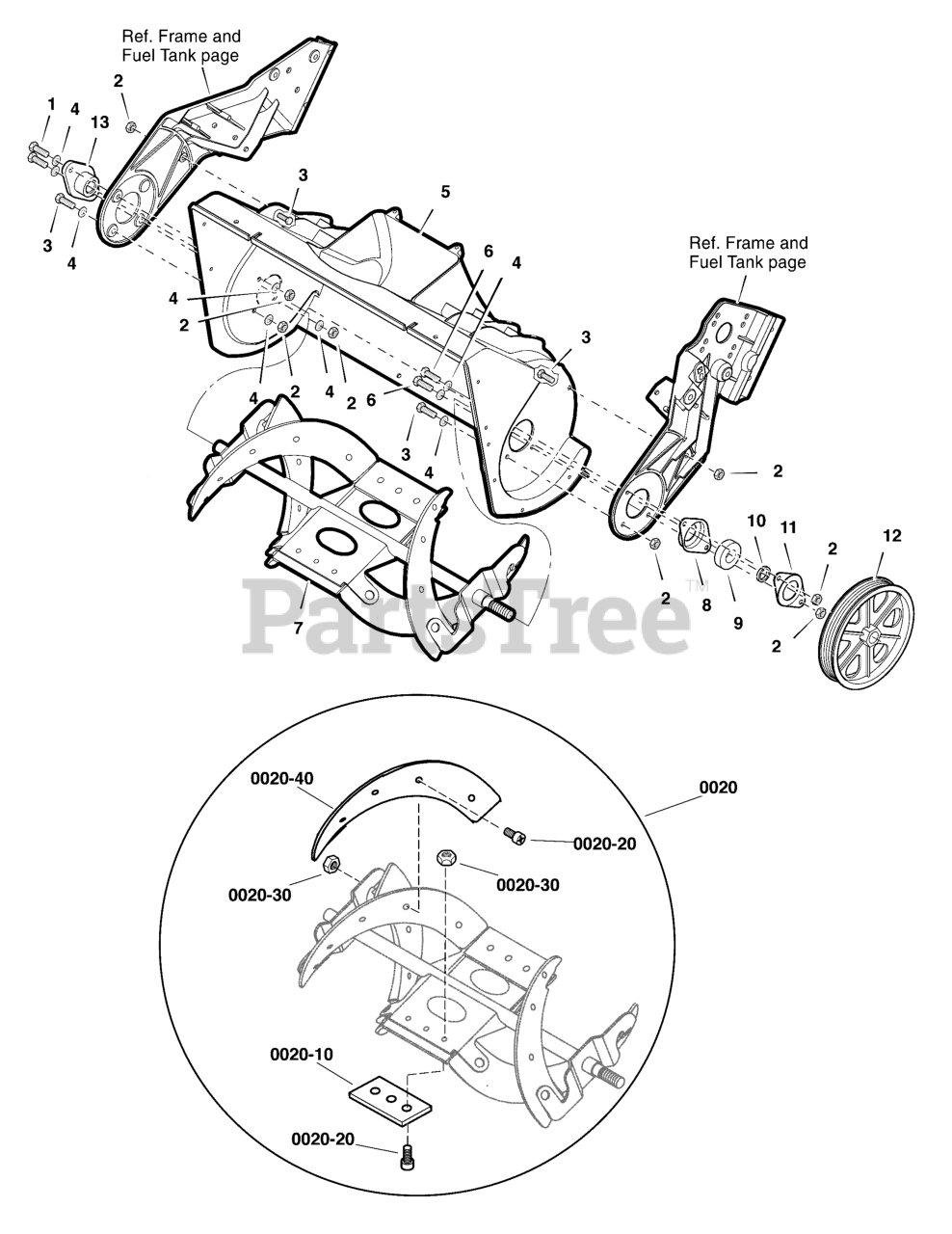

Auger and Housing Group Parts Diagram

  • Title

1

Simplicity 710263MA

SCREW, 1/4-20 x 1.00

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 73826MA

NUT, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 302628MA

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

4

Simplicity 71067MA

WASHER FLAT 9/32 x 5/8 x 1/16

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1740348MA

HOUSING ASSEMBLY, Auger
(Superseded to 1736375YP)

$494.99

$

Usually ships in 2-12 days

0

6

Simplicity 579052MA

SCREW, 1/4-20 x 5/8

$9.99

$

In Stock, only 1 left!

0

7

Simplicity 1740380MA

AUGER ASSEMBLY, 22"
(Superseded to 1501981MA)

$256.99

$

Usually ships in 2-12 days

0

8

Simplicity 580251MA

RETAINER, Bearing

$16.99

$

Usually ships in 2-12 days

0

9

Simplicity 43846MA

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 578101MA

SLEEVE, Spacer

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 334287MA

PLATE, Bearing Retainer

$7.49

$

In Stock, only 1 left!

0

12

Simplicity 333446MA

PULLEY, Auger Drive V6

$22.99

$

Usually ships in 2-12 days

0

13

Simplicity 577023MA

BEARING, Flange

$5.99

$

In Stock, only 3 left!

0

0020

Simplicity 1687312YP

KIT, Auger Flight

Note: (Includes Ref Nos 0020-10 through 0020-40)

$136.99

$

Usually ships in 2-12 days

0

0020-10

Simplicity 1734493SM

BLADE, Center

$7.99

$

Usually ships in 2-12 days

0

0020-20

Simplicity 1935945SM

SCREW, Truss Head Phillips, 1/4 - 20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

0020-30

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0020-40

Simplicity 1733232SM

BLADE, Auger

$15.99

$

Usually ships in 2-12 days

0
