5022 E (1695090) - Simplicity 22" Snow Thrower (2006) Handle Assembly Group Parts Diagram

22" Snow Thrower

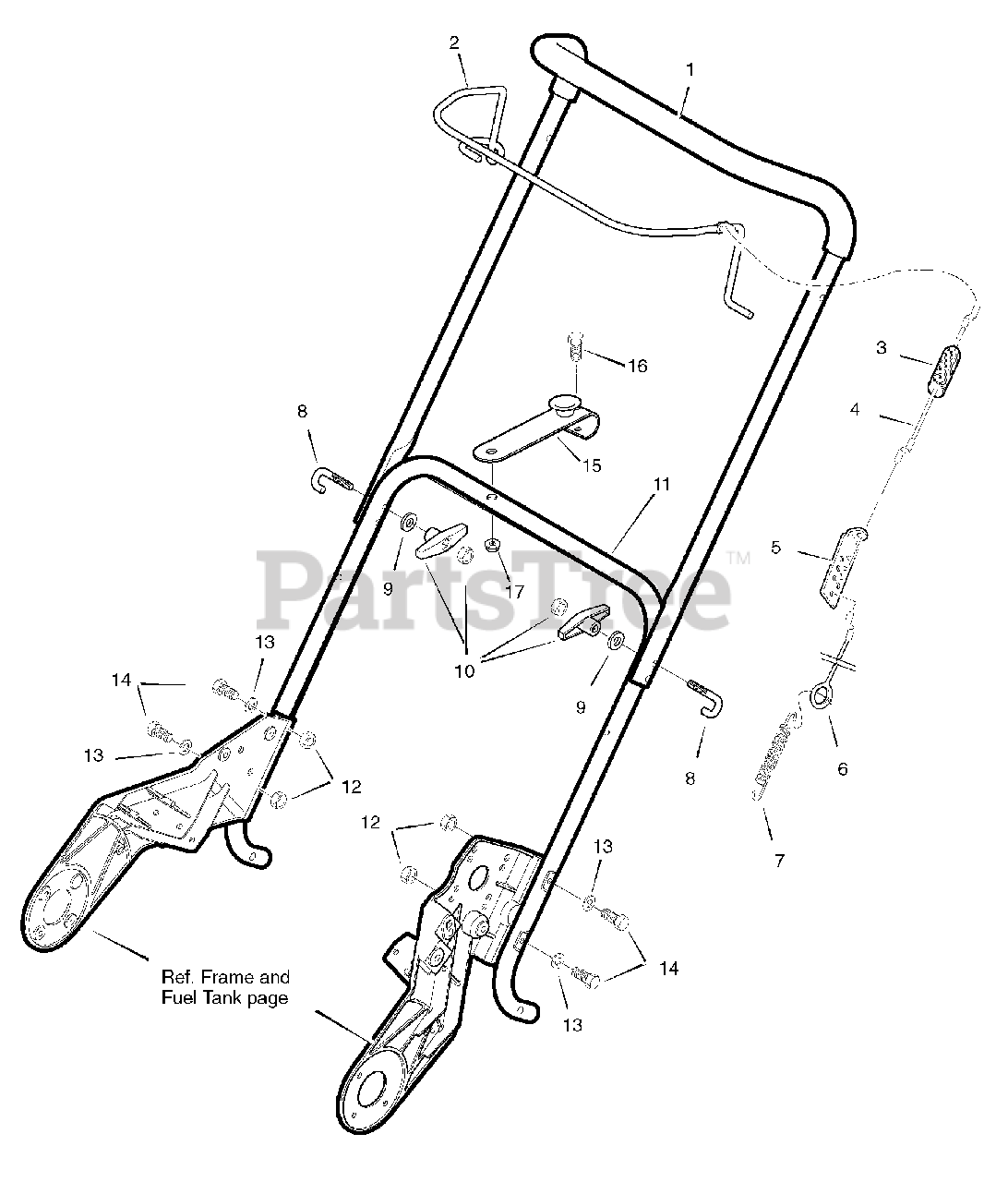

Handle Assembly Group Parts Diagram

  • Title

1

Simplicity 1502001MA

HANDLE & GRIP ASSEMBLY

$151.99

$

Usually ships in 2-12 days

0

2

Simplicity 1501861E701MA

CONTROL, Bail

$68.99

$

Usually ships in 2-12 days

0

3

Simplicity 308146MA

BOOT, Clutch Spring

$6.49

$

In Stock, only 2 left!

0

4

Simplicity 1502042MA

CABLE, Upper Control

$14.99

$

Usually ships in 2-12 days

0

5

Simplicity 313441MA

BRACKET, Control Adjust

$

$

Not available

6

Simplicity 313448MA

CABLE, Lower Control

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 313471MA

SPRING, Extension 3/4 O.D. x .069

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1501877MA

U-BOLT

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 311936MA

WASHER, Form 11/32 I.D. 1.0

$7.49

$

Usually ships in 2-12 days

0

10

Simplicity 57171MA

T-KNOB, 3.00 Plastic Black
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 7

0

11

Simplicity 1501860E701MA

HANDLE, Lower

$

$

Not available

12

Simplicity 73826MA

NUT 1/4-20 Hex Control Lock
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 71067MA

Washer, 9/32 x 5/8 x .065

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 313674MA

SCREW, 1/4-20 x 1.25

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1733377ASM

BRACKET, Chute Handle Assembly

$17.99

$

Usually ships in 2-12 days

0

16

Simplicity 1740344MA

BOLT, Hex Head 1/4-20 x 1.50

$

$

Not available

17

Simplicity 1740345E701MA

NUT, 1/4-20 Hex Head Nylock

$

$

Not available
