5022 E (1695090) - Murray 22" Snow Thrower (2006) Frame and Fuel Tank Group Parts Diagram

22" Snow Thrower

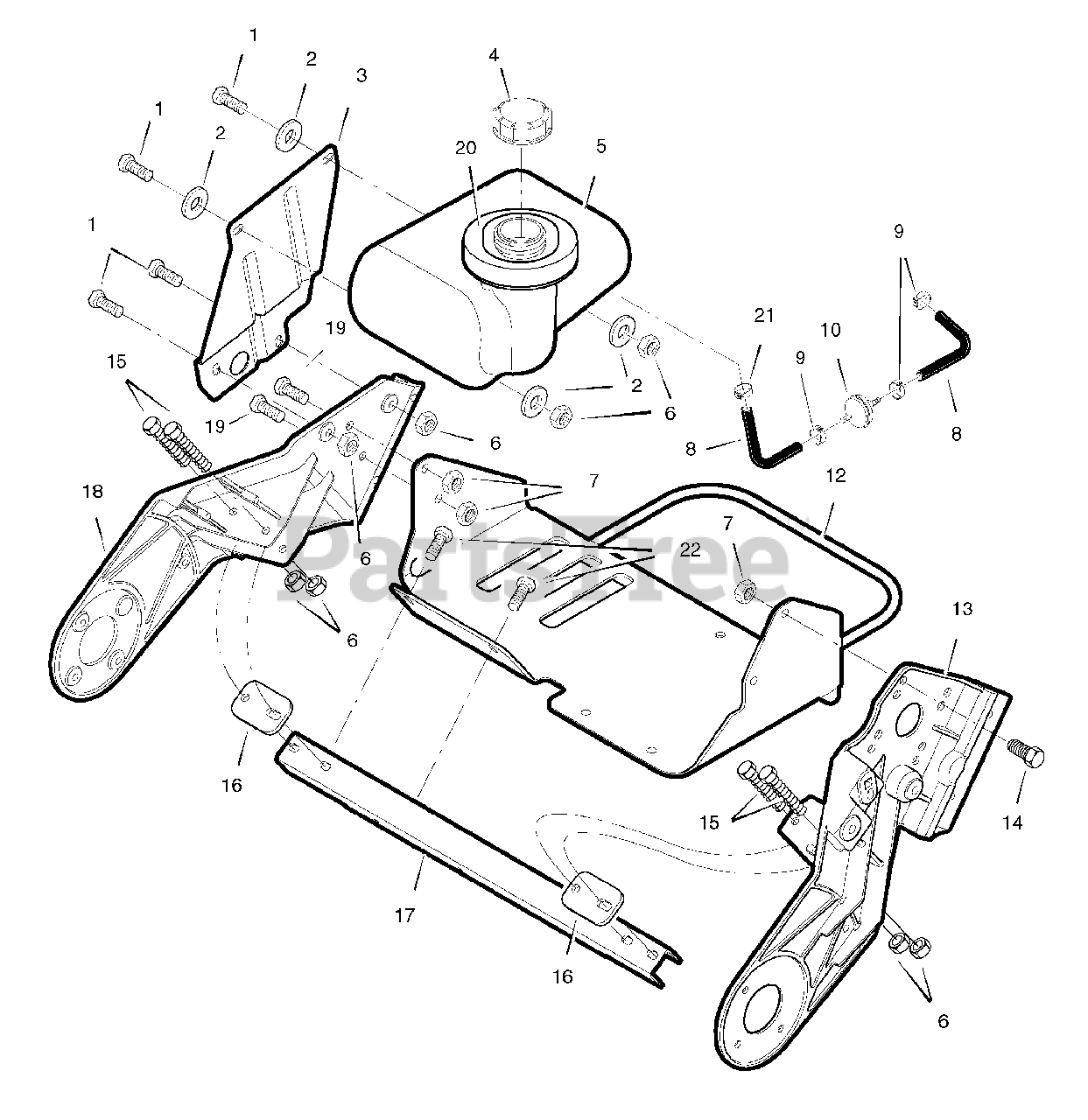

Frame and Fuel Tank Group Parts Diagram

  • Title

1

Murray 302628MA

SCREW 1/4-20 x .3/4

$4.49

$

In Stock, Qty 7

0

2

Murray 71067MA

WASHER FLAT 9/32 x 5/8 x .065

$4.49

$

In Stock, only 1 left!

0

3

Murray 1740031E701MA

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

4

Murray 1715917SM

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

5

Murray 1716634SM

TANK, Fuel
(Superseded to 1738435YP)

$237.99

$

Usually ships in 2-12 days

0

6

Murray 73826MA

NUT, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

7

Murray 71391MA

NUT, Hex 5/16-18

$4.49

$

Usually ships in 2-12 days

0

8

Murray 1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

9

Murray 323387MA

CLAMP, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

10

Murray 298090S

FILTER, Fuel Line

$

$

Not available

12

Murray 1501849E701MA

CRADLE ASSEMBLY, Engine

$222.99

$

Usually ships in 2-12 days

0

13

Murray 1501872E701MA

FRAME, L.H.

$

$

Not available

14

Murray 48901MA

SCREW, 5/16-18 x 1/16

$3.99

$

Usually ships in 2-12 days

0

15

Murray 180044MA

SCREW, 1/4-20 x 2.00

$3.99

$

Usually ships in 2-12 days

0

16

Murray 335351MA

PLATE, Mounting Support

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1501851MA

SUPPORT, Frame

$34.99

$

Usually ships in 2-12 days

0

18

Murray 1501871E701MA

FRAME, R.H.
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

19

Murray 180077MA

SCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

20

Murray 1740032MA

RING, Foam

$12.99

$

In Stock, only 1 left!

0

21

Murray 47345MA

CLAMP, Fuel Line, Screw Type

$9.49

$

Usually ships in 2-12 days

0

22

Murray 310169MA

SCREW, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
