5022 E (1695090) - Murray 22" Snow Thrower (2006) Chute System Group Parts Diagram

22" Snow Thrower

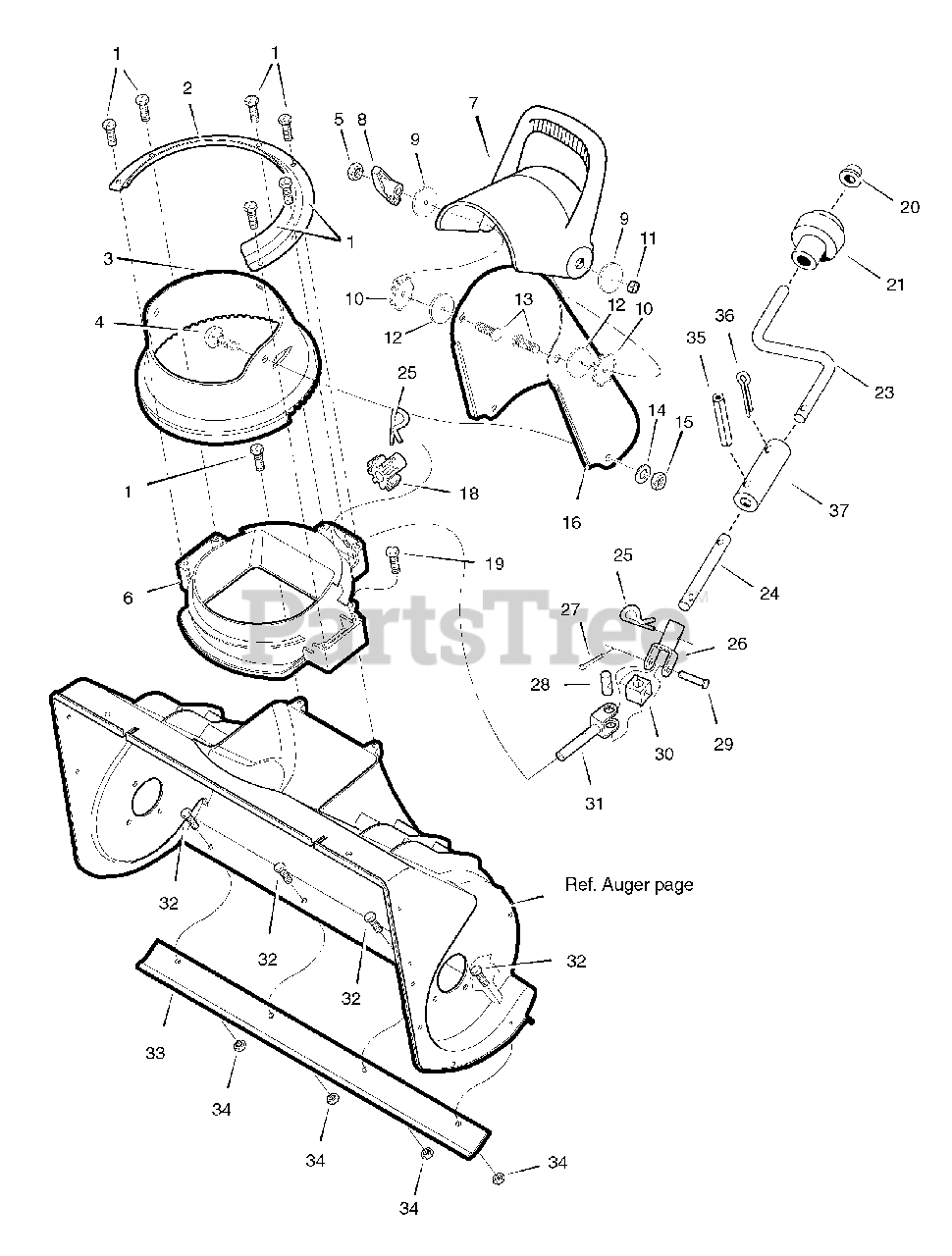

Chute System Group Parts Diagram

  • Title
1

Murray 313685MA

SCREW 1/4-14

$5.49

$

Usually ships in 2-12 days

0

2

Murray 1502131MA

RETAINER, Chute Ring

$

$

Not available

3

Murray 1740060MA

RING, Chute

$31.99

$

Usually ships in 2-12 days

0

4

Murray 340720MA

BOLT, Carriage 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

5

Murray 71037MA

NUT 5/16-18 Reghex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Murray 1501848MA

NECK, Chute

$37.99

$

Usually ships in 2-12 days

0

7

Murray 1716631SM

CHUTE, 22" Upper

$

$

Not available

8

Murray 57171MA

T-KNOB, 3.00 Plastic
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 5

0

9

Murray 1920283MA

WASHER, Flat 1 - 1/2 O.D

$

$

Not available

10

Murray 1716642SM

LOCKWASHER, Shakeproof

$4.99

$

In Stock, Qty 12

0

11

Murray 71391MA

LOCKNUT, Hex 5/16-18

$4.49

$

Usually ships in 2-12 days

0

12

Murray 1716624SM

WASHER, Rubber 1-1/2 O.D

$4.49

$

In Stock, Qty 6

0

13

Murray 1740384MA

BOLT, Upper Chute

$4.49

$

Usually ships in 2-12 days

0

14

Murray 71072MA

WASHER, Flat 13/32 x 13/16

$4.49

$

In Stock, only 4 left!

0

15

Murray 71038MA

NUT, 5/16-18 Hex, Nylock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Murray 1716612SM

CHUTE, Lower

$86.99

$

Usually ships in 2-12 days

0

18

Murray 1501067MA

GEAR, 9-Tooth

$17.99

$

Usually ships in 2-12 days

0

19

Murray 313685MA

SCREW, 1/4-14 x 3/4

$5.49

$

Usually ships in 2-12 days

0

20

Murray 711627MA

NUT, Push

$

$

Not available

21

Murray 1714084SM

KNOB, Crank

$12.99

$

In Stock, only 1 left!

0

23

Murray 1733369SM

CRANK, Chute Rotation

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1720576SM

HANDLE, Chute Rotator Lower

$21.99

$

Usually ships in 2-12 days

0

25

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

26

Murray 1501075YZMA

YOKE ASSEMBLY, Adapter

$10.99

$

Usually ships in 2-12 days

0

27

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 1 left!

0

28

Murray 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

29

Murray 578309MA

PIN, Clevis

$5.49

$

In Stock, Qty 6

0

30

Murray 578063MA

HOUSING, Universal

$5.49

$

In Stock, only 2 left!

0

31

Murray 1501873MA

ROD, Lower Crank

$6.99

$

Usually ships in 2-12 days

0

32

Murray 302628MA

SCREW 1/4-20 x 3/4

$4.49

$

In Stock, Qty 7

0

33

Murray 1501863MA

BLADE, Scraper

$24.99

$

In Stock, only 4 left!

0

34

Murray 15X143MA

LOCKNUT, Hex 1/4-20

$4.99

$

In Stock, Qty 13

0

35

Murray 1740347MA

PIN, Spring 5/32 x 1.00

$3.49

$

Usually ships in 2-12 days

0

36

Murray 1740346MA

CLIP, Hairpin 3/32 x 1.625 Black

$2.99

$

Usually ships in 2-12 days

0

37

Murray 1720577SM

CHUTE HANDLES, Splice

$17.99

$

Usually ships in 2-12 days

0
