5021 - Troy-Bilt 25" Reel Mower DROP OUT REAR AXLE Parts Diagram

25" Reel Mower

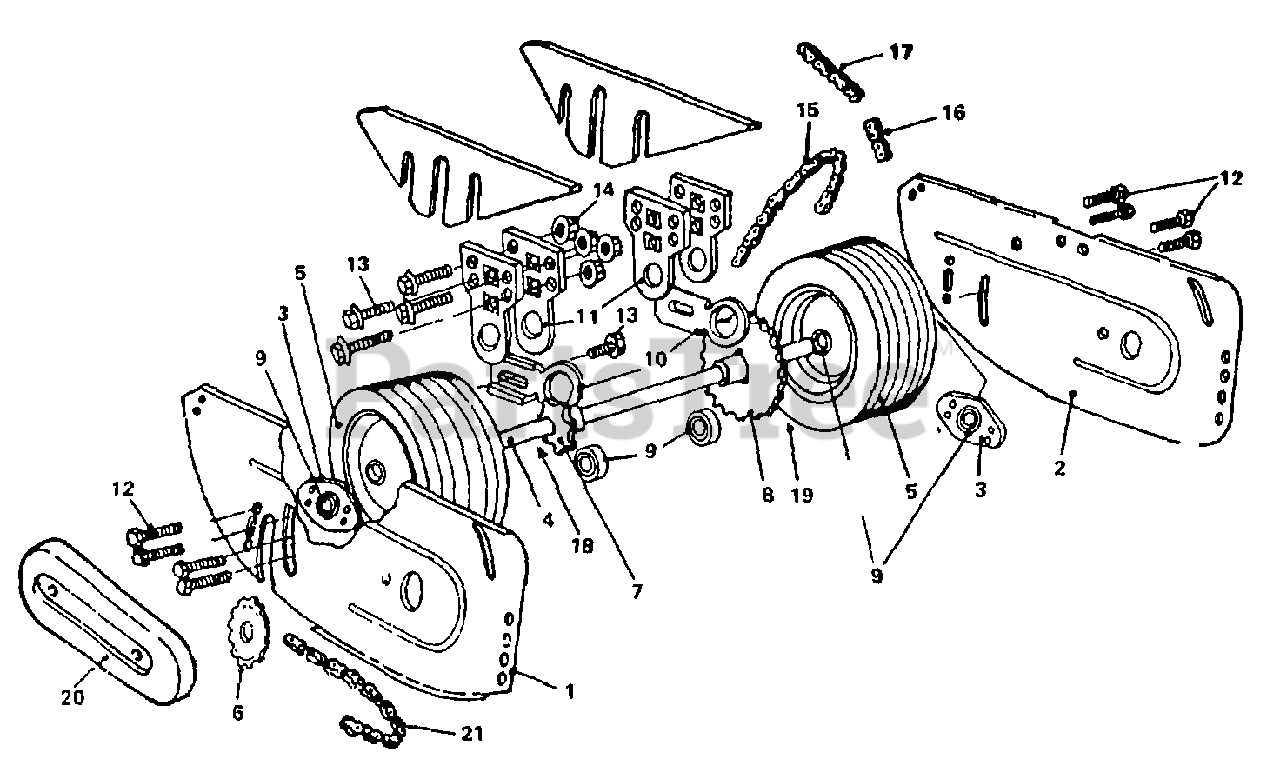

DROP OUT REAR AXLE Parts Diagram

  • Title
1

Troy-Bilt R5001

SIDEPLATE (RIGHT)

$

$

Currently unavailable

2

Troy-Bilt R5002

SIDEPLATE (LEFT)

$

$

Currently unavailable

3

Troy-Bilt R5003

SIDEPLATE BEARING RETAINER

$

$

Currently unavailable

4

Troy-Bilt R5004

REAR AXLE (20")

$

$

Currently unavailable

4

Troy-Bilt R5004-A

REAR AXLE (25")

$

$

Currently unavailable

5

Troy-Bilt R5005

REAR WHEELS (20") W/BEARINGS - EA.

$

$

Currently unavailable

5

Troy-Bilt R5005-A

REAR WHEELS (25") W/BEARINGS - EA.

$

$

Currently unavailable

6

Troy-Bilt R5006

SPROCKET (17 TEETH)

$

$

Currently unavailable

7

Troy-Bilt R5007

SPROCKET (8 TEETH)

$

$

Currently unavailable

8

Troy-Bilt R5008

SPROCKET (30 TEETH)

$

$

Currently unavailable

9

Troy-Bilt R1108

SEALED BEARING (8 REQ.)

$

$

Currently unavailable

10

Troy-Bilt R5010

ROLLER BRACKET SUPPORTS

$

$

Currently unavailable

11

Troy-Bilt R5011

AXLE HANGERS

$

$

Currently unavailable

12

Troy-Bilt R1033

5/16-18x1/2 BOLT

$

$

Currently unavailable

13

Troy-Bilt R1074

5/16-24x7/8 BOLT

$

$

Currently unavailable

14

Troy-Bilt R1075

5/16-24 NUT

$

$

Currently unavailable

15

Troy-Bilt R1056

ROLLER DRIVE CHAIN - 46 PITCH

$

$

Currently unavailable

16

Troy-Bilt R5016

2-LINK #41 CHAIN W/MASTER LINK

$

$

Currently unavailable

17

Troy-Bilt R5017

4-LINK #41 CHAIN W/MASTER LINK

$

$

Currently unavailable

18

Troy-Bilt R5018

SPACER (20") - RIGHT

$

$

Currently unavailable

18

Troy-Bilt R5018-A

SPACER (25") - RIGHT

$

$

Currently unavailable

19

Troy-Bilt R5019

SPACER (20") - LEFT

$

$

Currently unavailable

19

Troy-Bilt R5019-A

SPACER (25") - LEFT

$

$

Currently unavailable

20

Troy-Bilt R1094

CHAIN GUARD

$

$

Currently unavailable

21

Troy-Bilt R1092

SIDEPLATE CHAIN

$

$

Currently unavailable
