5021 R (6210530X37NA) - Husqvarna 21" Snow Blower (2007) Engine & Frame Assembly Parts Diagram

21" Snow Blower

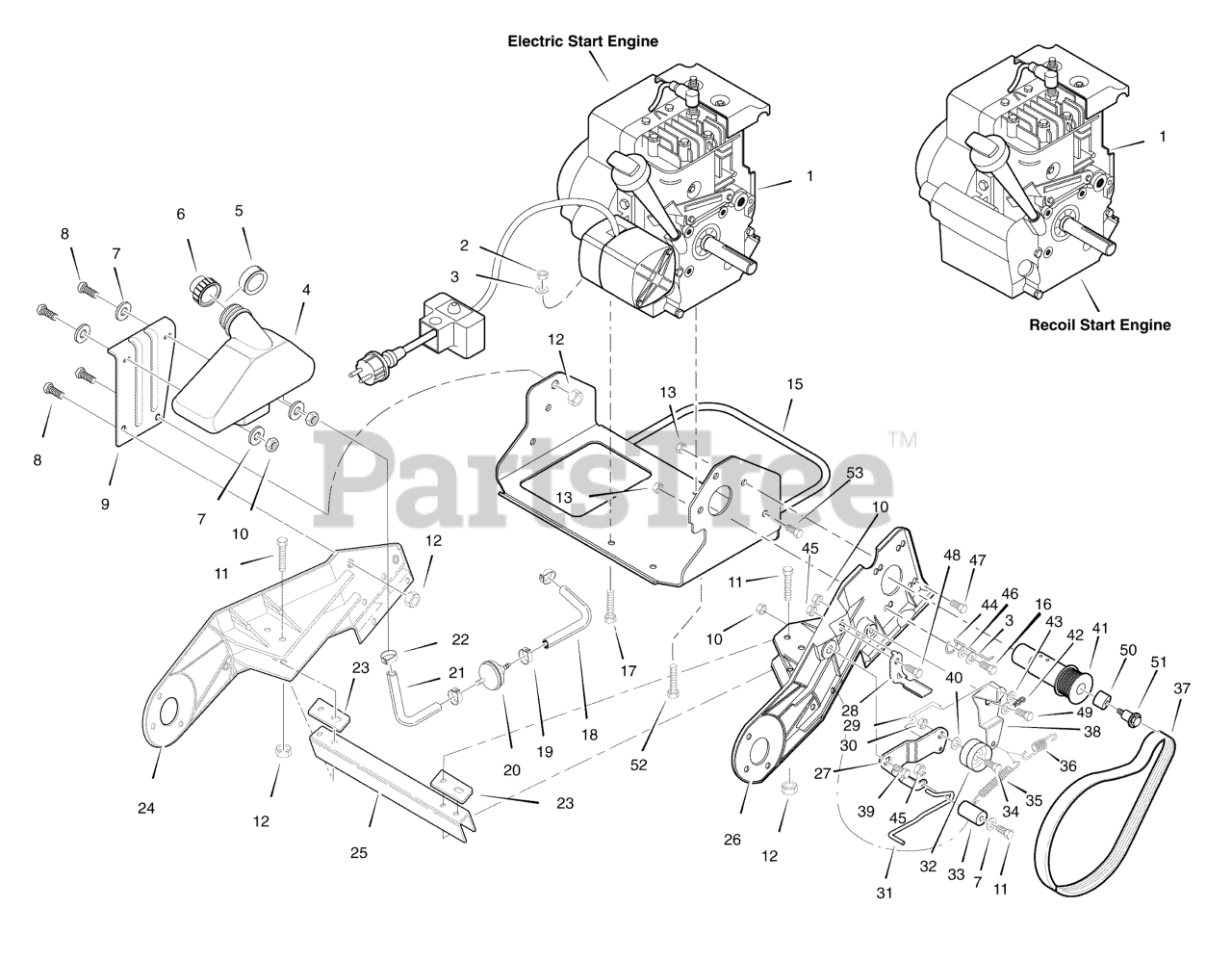

Engine & Frame Assembly Parts Diagram

  • Title

1

ENGINE

Note: (09A413-0202-E1 FOR MODEL NO. 6210540X37NA-ELECTRIC STARTER)

$

$

Not available

1

ENGINE

Note: (09A412-0267-E1 FOR MODEL NO. 6210530X37NA-RECOIL STARTER)

$

$

Not available

2

Murray 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Murray 71060MA

WASHER, SPLIT LOCK .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Murray 333739MA

TANK, FUEL 1.5 QT

$120.99

$

Usually ships in 2-12 days

0

5

Murray 762224MA

RING, FOAM FUEL TANK

$5.99

$

Usually ships in 2-12 days

0

6

Murray 1501726MA

FUEL CAP
(Superseded to 692046)

$5.49

$

In Stock, Qty 10

0

7

Murray 71067MA

WASHER, FLAT .281 X .63. X .065

$4.49

$

In Stock, only 1 left!

0

8

Murray 302628MA

SCREW, 1/4-20 X 0.75

$4.49

$

In Stock, Qty 7

0

9

Murray 333749E701MA

BRACKET, FUEL TANK

$14.99

$

Usually ships in 2-12 days

0

10

Murray 271163MA

NUT, 8-32 HEX KEPS

$3.99

$

Usually ships in 2-12 days

0

11

Murray 180044MA

SCREW, 1/4-20 X 2.00

$3.99

$

Usually ships in 2-12 days

0

12

Murray 71034MA

NUT, 1/4-20 HEX
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Murray 71391MA

NUT, 5/16-18 HEX CONTROL LOCK

$4.49

$

In Stock, only 1 left!

0

15

Murray 1501744E701MA

CRADLE, WELDMENT

$165.99

$

Usually ships in 2-12 days

0

16

Murray 180077MA

BOLT, 5/16-18 X 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

17

Murray 001X81MA

BOLT, HEX .31-18 X 1.62

$3.49

$

In Stock, only 2 left!

0

18

Murray 1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

19

Murray 323387MA

CLAMP, HOSE

$4.49

$

Usually ships in 2-12 days

0

20

Murray 298090S

FILTER- FUEL

$

$

Not available

21

Murray 1502028MA

HOSE, FUEL 12 INCHES

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

22

Murray 47345MA

CLAMP, SCREW TYPE

$9.49

$

Usually ships in 2-12 days

0

23

Murray 335351MA

PLATE, SUPPORT

$3.99

$

Usually ships in 2-12 days

0

24

Murray 1501871E701MA

FRAME, RIGHT HAND
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

25

Murray 333987MA

CHANNEL, FRAME SUPPORT

$23.99

$

Usually ships in 2-12 days

0

26

Murray 1501872E701MA

FRAME, LEFT HAND

$

$

Not available

27

Murray 320077MA

ARM, IDLER BLACK

$9.99

$

Usually ships in 2-12 days

0

28

Murray 333970MA

BRAKE PAD

$5.49

$

Usually ships in 2-12 days

0

29

Murray 313436MA

ROD, CLUTCH LINKAGE

$5.49

$

Usually ships in 2-12 days

0

30

Murray 590MA

NUT, 3/8-16 JAM CONTROL LOCK
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

31

Murray 1501009MA

WIRE, BRAKE

$9.99

$

Usually ships in 2-12 days

0

32

Murray 48924MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

33

Murray 1501010MA

PINCH ROLLER

$6.49

$

Usually ships in 2-12 days

0

34

Murray 302637MA

SCREW, 3/8-16 X 1.50

$3.99

$

Usually ships in 2-12 days

0

35

Murray 313473MA

SPRING, EXTENSION .38 O.D. X .039 X 2.50

$6.49

$

In Stock, only 1 left!

0

36

Murray 313471MA

SPRING, EXTENSION .75 O.D. X .069 X 2.00

$4.99

$

In Stock, only 1 left!

0

37

Murray 333721MA

BELT

$

$

Not available

38

Murray 313444MA

ARM, IDLER PIVOT

$

$

Not available

39

Murray 333594MA

BOLT, SHOULDER .500 X .177

$20.99

$

In Stock, only 1 left!

0

40

Murray 301188MA

WASHER, FLAT .378 X .75 X .080

$2.99

$

Usually ships in 2-12 days

0

41

Murray 1501908MA

PULLEY, ENGINE

$28.99

$

Usually ships in 2-12 days

0

42

Murray 121223MA

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

43

Murray 414106MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

44

Murray 334079MA

GUIDE, BELT

$7.99

$

Usually ships in 2-12 days

0

45

Murray 73826MA

NUT, 1/4-20 HEX CONTROL LOCK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

46

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

47

Murray 48901MA

SCREW 5/16-18 X 0.63 WAHHC

$3.99

$

Usually ships in 2-12 days

0

48

Murray 579052MA

SCREW, 1/4-20 X 0.63

$9.99

$

In Stock, only 1 left!

0

49

Murray 311633MA

SCREW, 8-32 X 3.00

$3.99

$

Usually ships in 2-12 days

0

50

Murray 1740037MA

SPACER, DRIVE PULLEY

$7.99

$

Usually ships in 2-12 days

0

51

Murray 1501907MA

BOLT, ENGINE PULLEY, 1/4-28 X 1.28

$9.99

$

Usually ships in 2-12 days

0

52

Murray 1X216MA

BOLT, 5/16-18 X 0.865

$3.99

$

Usually ships in 2-12 days

0

53

Murray 310169MA

SCREW, .25-20 X .062 WASHER HEX HEAD TAPTITE
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0
