5021 R (6210530X37NA) - Husqvarna 21" Snow Blower (2007) Auger & Control Assembly Parts Diagram

21" Snow Blower

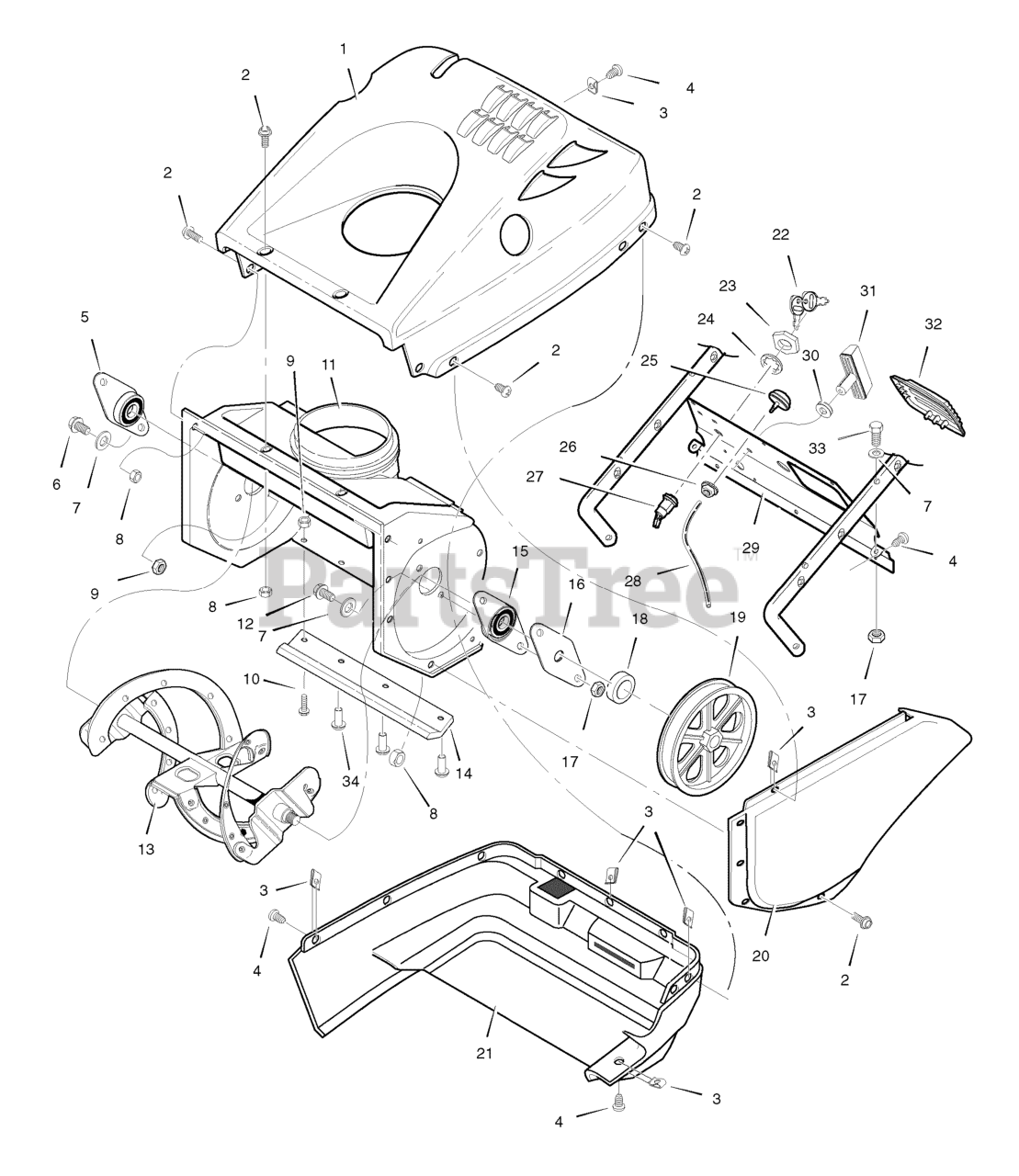

Auger & Control Assembly Parts Diagram

  • Title
1

Murray 1741505MA

COVER, TOP

$239.99

$

Usually ships in 2-12 days

0

2

Murray 12342MA

SCREW, #10-24 X 0.50

$3.99

$

Usually ships in 2-12 days

0

3

Murray 578109MA

NUT, 1/4-10 SPEED J-TYPE

$6.49

$

In Stock, Qty 8

0

4

Murray 313685MA

SCREW, 1/4-14 X 0.75

$5.49

$

Usually ships in 2-12 days

0

5

Murray 577023MA

BEARING, FLANGE

$5.99

$

In Stock, only 3 left!

0

6

Murray 710263MA

SCREW, 1/4-20 X 1.00

$3.99

$

Usually ships in 2-12 days

0

7

Murray 71067MA

WASHER, FLAT, .281 X .63 X .065

$4.49

$

In Stock, only 1 left!

0

8

Murray 312300MA

NUT, #10-24 HEX CONTROL LOCK
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 15X143MA

NUT, 1/4-20 HEX CONTROL LOCK

$4.99

$

In Stock, Qty 13

0

10

Murray 302628MA

SCREW, 1/4-20 X 0.75

$4.49

$

In Stock, Qty 7

0

11

Murray 340091MA

AUGER HOUSING ASSEMBLY

$137.99

$

In Stock, only 1 left!

0

12

Murray 579052MA

SCREW, 1/4-20 X 0.63

$9.99

$

In Stock, only 1 left!

0

13

Murray 327072MA

AUGER ASSEMBLY, COMPLETE

$185.99

$

In Stock, only 1 left!

0

14

Murray 55323MA

BLADE, SCRAPER

$35.99

$

In Stock, only 1 left!

0

15

Murray 583459MA

PLATE & BEARING ASSY

$27.99

$

Usually ships in 2-12 days

0

16

Murray 334287MA

PLATE, RETAINER BEARING

$7.49

$

In Stock, only 1 left!

0

17

Murray 73826MA

NUT, 1/4-20 HEX CONTROL LOCK
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

18

Murray 578101MA

SPACER, SLEEVE

$4.99

$

Usually ships in 2-12 days

0

19

$22.99

$

Usually ships in 2-12 days

0

20

Murray 340089MA

COVER, BELT

$58.99

$

Usually ships in 2-12 days

0

21

Murray 1501705MA

COVER, BOTTOM

$131.99

$

Usually ships in 2-12 days

0

22

Murray 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

23

Murray 300193MA

NUT, 5/8-32

$5.49

$

Usually ships in 2-12 days

0

24

Murray 313683MA

WASHER, .640 X 1.1 X .05

$4.49

$

Usually ships in 2-12 days

0

25

Murray 394281S

PRIMER, CARBURETOR

$16.99

$

Usually ships in 2-12 days

0

26

Murray 271172MA

NUT, 1/-20 HEX KEPS

$4.49

$

Usually ships in 2-12 days

0

27

Murray 56992MA

SWITCH, IGNITION 45 DEGREE

$14.99

$

Usually ships in 2-12 days

0

28

Murray 335507MA

HOSE, PRIMER 9.5"

$7.99

$

Usually ships in 2-12 days

0

29

Murray 1501706MA

PANEL, CONTROL

$83.99

$

Usually ships in 2-12 days

0

30

Murray 57587MA

GROMMET & WASHER, ROPE

$3.99

$

Usually ships in 2-12 days

0

31

Murray 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0

32

Murray 1501878MA

PANEL, ACCESS

$

$

Not available

33

Murray 313674MA

SCREW, 1/4-20 X 1.25

$3.99

$

Usually ships in 2-12 days

0

34

Murray 577707MA

RIVET, OFFSET, .25 X .61

$3.99

$

Usually ships in 2-12 days

0
