5021 R (531309638) - Husqvarna 21" Snow Blower (2007-07) Handle Assembly Parts Diagram

21" Snow Blower

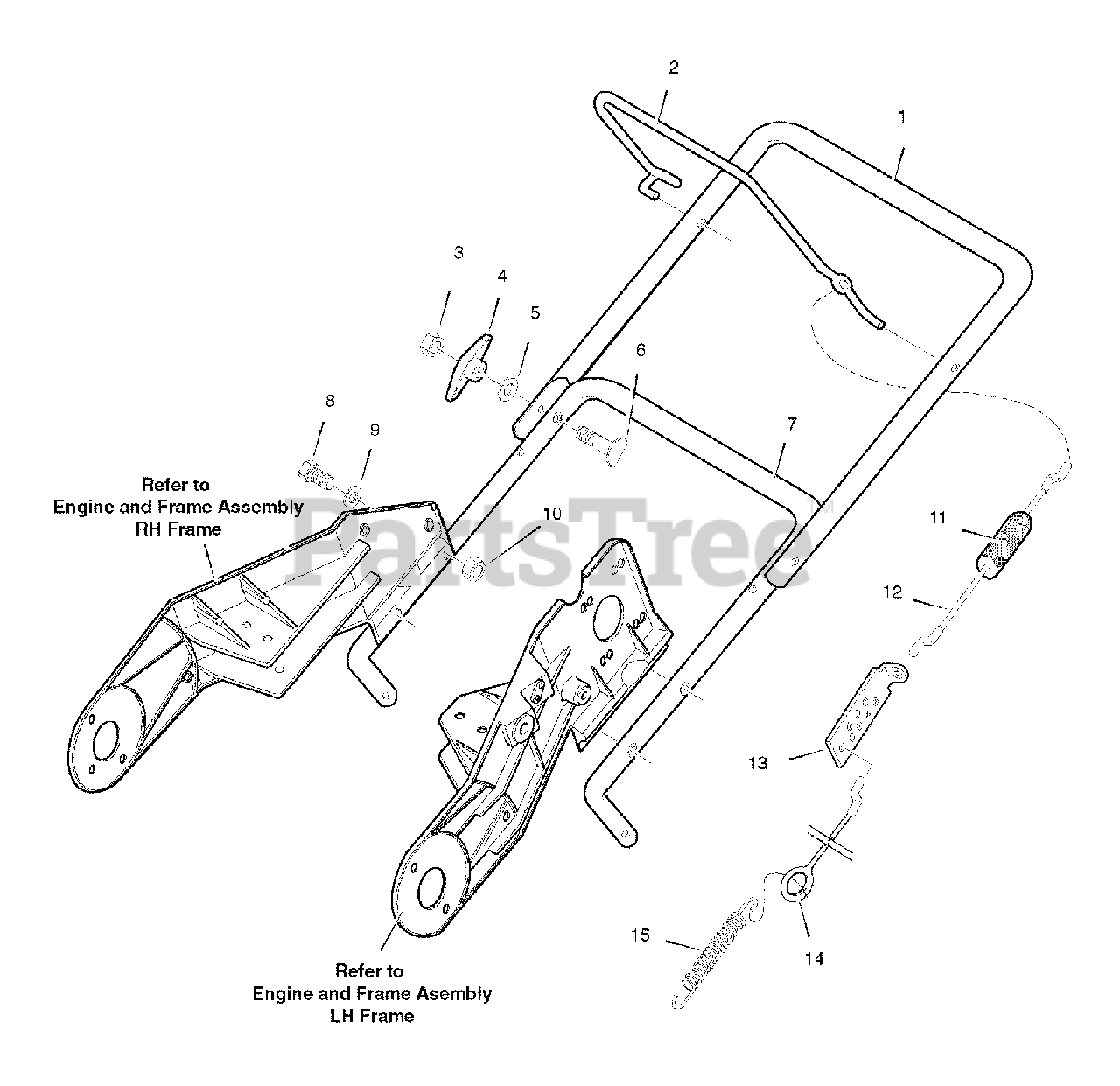

Handle Assembly Parts Diagram

  • Title
1

Husqvarna 601505196

HANDLE, UPPER

$87.99

$

Usually ships in 3-10 days

0

2

Husqvarna 601505197

BAIL, CONTROL

$

$

Not available

3

Husqvarna 601505129

NUT, 5/16-18 HEX

$

$

Not available

4

Husqvarna 601400069

KNOB, WING

$14.99

$

In Stock, only 1 left!

0

5

Husqvarna 601002413

WASHER, FORM .344 I.D.

$

$

Not available

6

Husqvarna 601002150

BOLT, 5/16-18 X 2.00

$

$

Not available

7

Husqvarna 601505199

HANDLE, LOWER

$

$

Not available

8

Husqvarna 601505169

SCREW, 1/4-20 X 1.25

$

$

Not available

9

Husqvarna 601400080

WASHER, FLAT .281 X .63 X .065

$

$

Not available

10

Husqvarna 601400086

NUT, .25-20 HEX CONTROL LOCK

$7.99

$

In Stock, only 1 left!

0

11

Husqvarna 601001395

BOOT, CLUTCH SPRING

$

$

Not available

12

Husqvarna 601001392

CABLE, UPPER CONTROL

$

$

Not available

13

Husqvarna 601001393

BRACKET, CABLE ADJUST

$

$

Not available

14

Husqvarna 601001394

CABLE, LOWER CONTROL

$

$

Not available

15

Husqvarna 601001396

SPRING, EXTENSION .75 O.D. X .069 X 2.00

$

$

Not available
