5021 R (531309638) - Husqvarna 21" Snow Blower (2007-07) Auger and Control Assembly Parts Diagram

21" Snow Blower

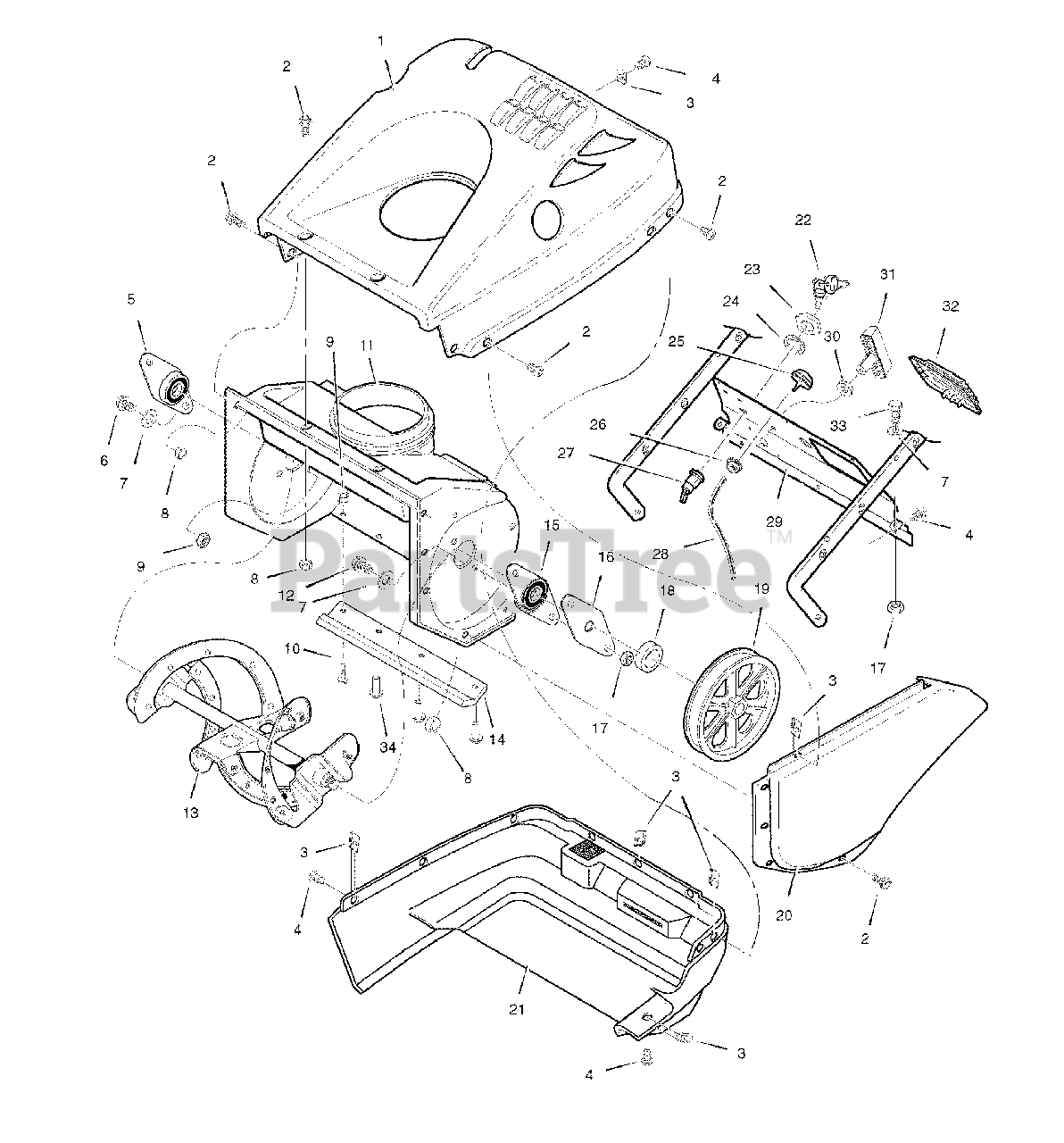

Auger and Control Assembly Parts Diagram

  • Title

1

Husqvarna 601505147

COVER, TOP

$

$

Not available

2

Husqvarna 601400002

SCREW, #10-24 X 0.50

$

$

Not available

3

Husqvarna 601505148

NUT, 1/4-10 SPEED J-TYPE

$

$

Not available

4

Husqvarna 601505149

SCREW, 1/4-14 X 0.75

$

$

Not available

5

Husqvarna 601002153

BEARING, FLANGE

$

$

Not available

6

Husqvarna 601505152

SCREW, 1/4-20 X 1.00

$

$

Not available

7

Husqvarna 601400080

WASHER, FLAT, .281 X .63 X .065

$

$

Not available

8

Husqvarna 601505153

NUT, #10-24 HEX CONTROL LOCK

$

$

Not available

9

Husqvarna 601505154

NUT, 1/4-20 HEX CONTROL LOCK

$

$

Not available

10

Husqvarna 601505133

SCREW, 1/4-20 X 0.75

$

$

Not available

11

Husqvarna 601505156

AUGER HOUSING ASSEMBLY

$250.99

$

Usually ships in 3-10 days

0

12

Husqvarna 601400073

SCREW, 1/4-20 X 0.63

$

$

Not available

13

Husqvarna 601505157

AUGER ASSEMBLY, COMPLETE
(Superseded to 601001798)

$

$

Not available

14

Husqvarna 601505158

BLADE, SCRAPER

$79.99

$

Usually ships in 3-10 days

0

15

Husqvarna 601400074

PLATE & BEARING ASSY

$

$

Not available

16

Husqvarna 601001381

PLATE, RETAINER BEARING

$

$

Not available

17

Husqvarna 601400086

NUT, 1/4-20 HEX CONTROL LOCK

$7.99

$

In Stock, only 1 left!

0

18

Husqvarna 601002087

SPACER, SLEEVE

$

$

Not available

19

Husqvarna 601002095

PULLEY

$

$

Not available

20

Husqvarna 601505159

COVER, BELT

$

$

Not available

21

Husqvarna 601505160

COVER, BOTTOM

$

$

Not available

22

Husqvarna 601400076

KEY SET

$28.99

$

Usually ships in 3-10 days

0

23

Husqvarna 601000111

NUT, 5/8-32

$

$

Not available

24

Husqvarna 601400044

WASHER, .640 X 1.1 X .05

$

$

Not available

25

Husqvarna 601505189

PRIMER, CARBURETOR

$

$

Not available

26

Husqvarna 601000102

NUT, 1/-20 HEX KEPS

$

$

Not available

27

Husqvarna 601001358

SWITCH, IGNITION 45 DEGREE

$

$

Not available

28

Husqvarna 601505165

HOSE, PRIMER 9.5"

$

$

Not available

29

Husqvarna 601505166

PANEL, CONTROL

$

$

Not available

30

Husqvarna 601400070

GROMMET & WASHER, ROPE

$

$

Not available

31

Husqvarna 601505140

GRIP, STARTER ROPE

$

$

Not available

32

Husqvarna 601505168

PANEL, ACCESS

$

$

Not available

33

Husqvarna 601505169

SCREW, 1/4-20 X 1.25

$

$

Not available

34

Husqvarna 601001378

RIVET, OFFSET, .25 X .61

$

$

Not available
