5021 E (6210540X37NA) - Husqvarna 21" Snow Blower (2007) Electric Starter Parts Diagram

21" Snow Blower

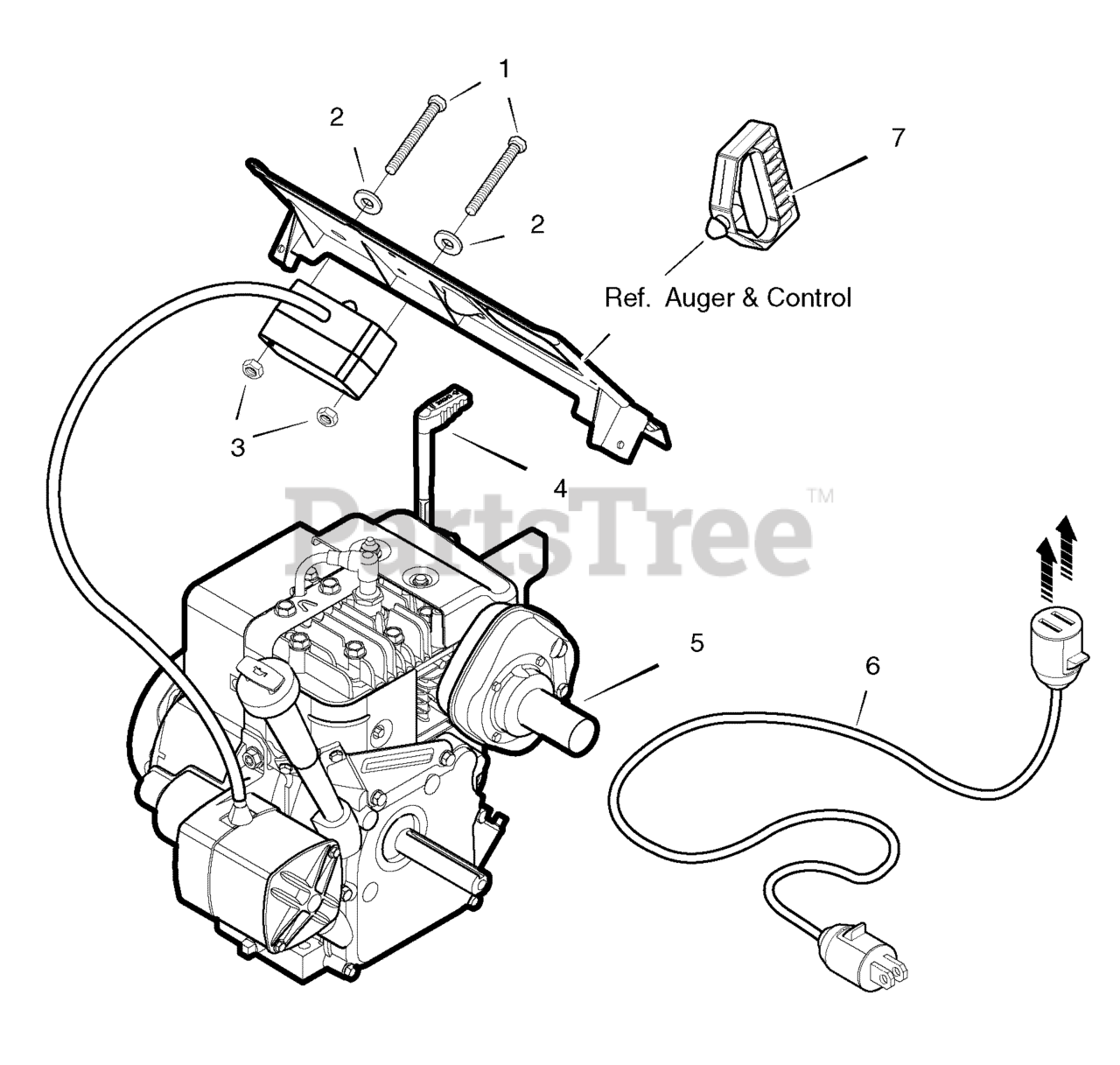

Electric Starter Parts Diagram

  • Title
1

Murray 311633MA

SCREW, # 8 - 32 x 3

$3.99

$

Usually ships in 2-12 days

0

2

$3.49

$

Usually ships in 2-12 days

0

3

Murray 271163MA

NUT, Keps

$3.99

$

Usually ships in 2-12 days

0

4

Murray 791534

LEVER, Choke *
(Superseded to 790553)

$19.99

$

In Stock, only 1 left!

0

5-1

Murray 699565

Muffler *

$53.99

$

Usually ships in 2-12 days

0

5-2

Murray 691880

GASKET, Muffler *

$5.49

$

In Stock, Qty 5

0

5-3

Murray 1502004MA

Bolt, Muffler *
(Superseded to 691665)

$7.99

$

In Stock, only 4 left!

0

5-4

Murray 71060MA

WASHER, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5-5

Murray 71037MA

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Murray 001X81MA

BOLT, Hex, 5/16 - 18

$3.49

$

In Stock, only 2 left!

0

6

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

7

Murray 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0
