50204 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Junior II Rear-Tine Tiller

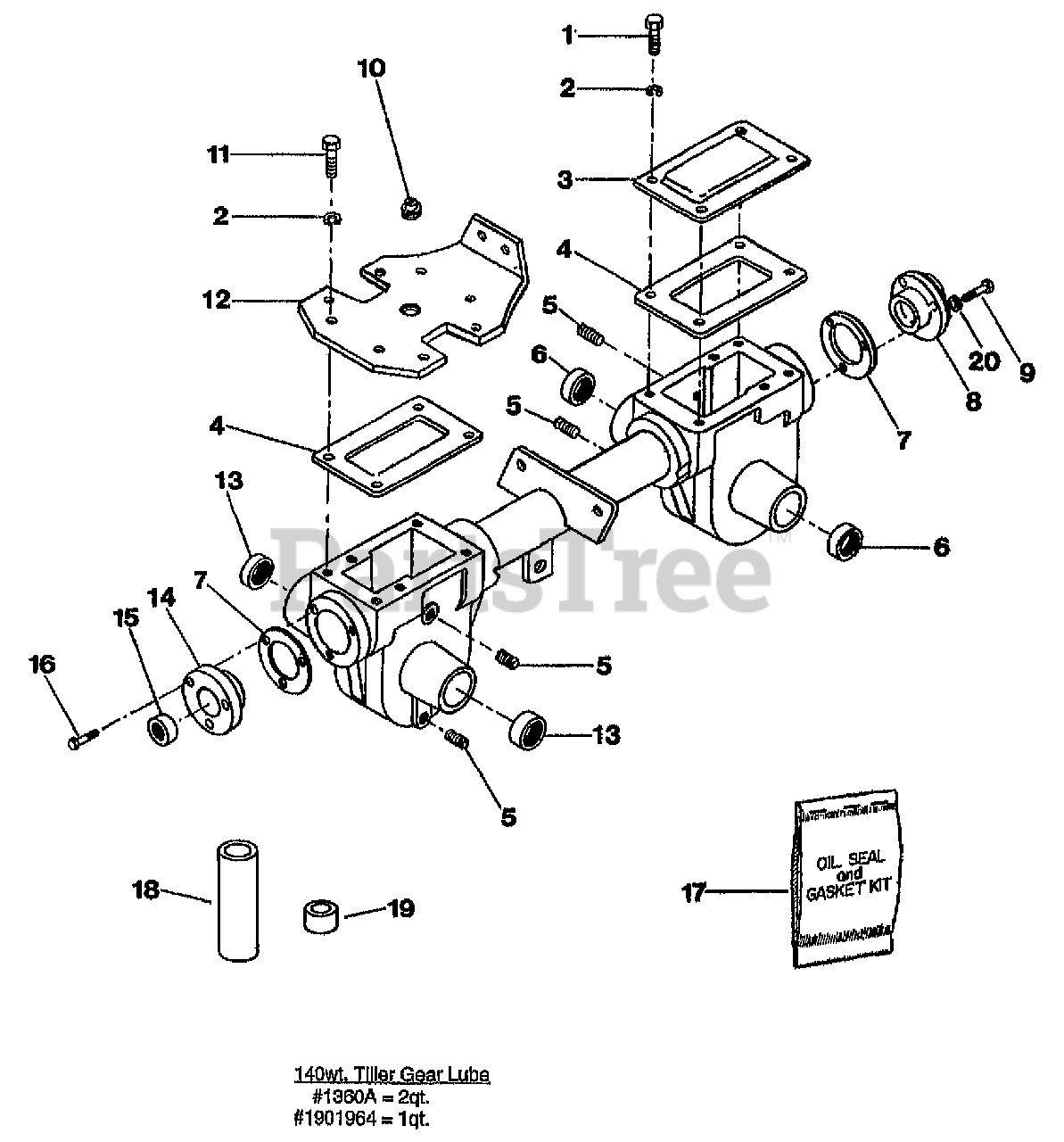

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title

Troy-Bilt 1953

TRANS-REPLACE JR 2 (Complete w/ all gears, shafts, seals, etc.)

$

$

Currently unavailable

1

Troy-Bilt 9550

SCR-HH 5/16-18X.5 GD5 YEL (For Tiller Housing Cover)

$

$

Currently unavailable

2

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

3

Troy-Bilt 50074

CVR-TRANS REAR PNT (Tiller Housing)
(Superseded to 1916109001)

$

$

Not available

4

Troy-Bilt 50032

GASKET-GEAR HSG (Transmission & Tiller Housing Cover)
(Superseded to 921-04229)

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT (Oil level & Drain)
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 9613

SEAL-OIL TRIPLE LIP (Tiller Housing)

$

$

Currently unavailable

7

Troy-Bilt 1124-2

GASKET-BRG COVER (Front & Rear)
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

8

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

9

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875 (For Rear Bearing Cap)

$

$

Currently unavailable

10

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP (For Transmission Cover)

$

$

Currently unavailable

12

Troy-Bilt 50138

COVER-TRANS MACH

$

$

Currently unavailable

13

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 2424

COVER-FRONT
(Superseded to 718-04007)

$18.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

16

Troy-Bilt 9579

SCR-HFLK 1/4-20X.75 G5 ZP (For Front Bearing Cap)

$

$

Currently unavailable

17

Troy-Bilt 1898

SEAL & GASKET SET-JR (Inc. 2 #7, 2 #4, 2 #6, 1 #15)

$

$

Currently unavailable

18

Troy-Bilt 4921-1

DRIVER-PLASTIC

$

$

Currently unavailable

19

Troy-Bilt 4921-2

SEAL-DRIVER PILOT (Used with #18)

$

$

Currently unavailable

20

Troy-Bilt 9945

WASHER-.36X.25X.03 NYLON

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
