5020 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1971) MODEL 7080 21" SPECIAL WITH GRASSCATCHER MODEL 7020 21" SPECIAL MODEL 5020 19" SPECIAL Parts Diagram

Walk-Behind Mower

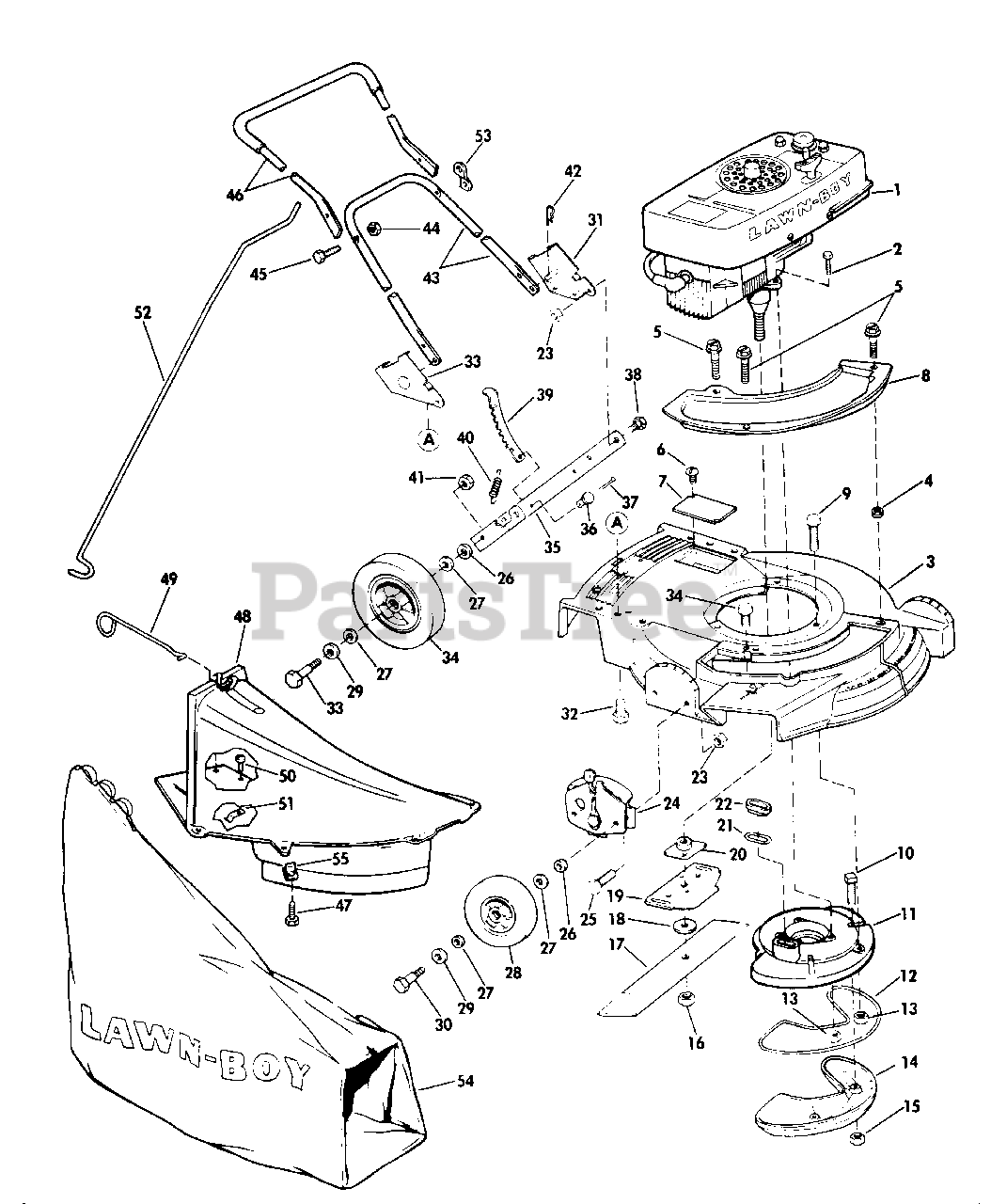

MODEL 7080 21" SPECIAL WITH GRASSCATCHER MODEL 7020 21" SPECIAL MODEL 5020 19" SPECIAL Parts Diagram

  • Title

1

Lawn-Boy 679417

Engine-D-432

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

2

Lawn-Boy 604039

Screw-Crankcase to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 679172

Housing-19" (Not Shown)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 19" Models only

$

$

Not available

3

Lawn-Boy 679054

Housing & Cover Plate-21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$

$

Not available

4

Lawn-Boy 604604

Grommet (Also Included in 679172 19" Housing)
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.49

$

In Stock, Qty 13

0

5

Lawn-Boy 606452

Screw (Also for 19" Models)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

6

Lawn-Boy 605808

Drivescrew (21" Models Only)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$

$

Not available

7

Lawn-Boy 605801

Cover (21" Models Only)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$

$

Not available

8

Lawn-Boy 606820

Cover-Chute (19" & 21" Models)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

9

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

10

Lawn-Boy 604036

Screw-Muffler to Muffler Plate
(Superseded to 607847)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

11

Lawn-Boy 604026

Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

12

Lawn-Boy 604516

Gasket-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

13

Lawn-Boy 602830

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

14

Lawn-Boy 604024

Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

15

Lawn-Boy 602315

Nut-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 603409

Blade-l9"
(Superseded to 603409-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 19" Models only

$

$

Not available

18

Lawn-Boy 605058

Washer (21" Models Only)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$5.99

$

In Stock, Qty 12

0

19

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

20

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$51.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$11.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 16

0

23

Lawn-Boy 602830

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

24

Lawn-Boy 678462

Height Adj. Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

25

Lawn-Boy 605101

Screw-Height Adj. Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

26

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 605255

Felt Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 678636

Wheel & Tire-6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$28.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 605256

Washer-Wheel Bolt Head

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 603441

Bolt-Shoulder, Wheel Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$7.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 679441

Bracket-Handle-Left

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

32

Lawn-Boy 607188

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$3.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 679443

Bracket-Handle-Right
(Superseded to 679721)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

33

Lawn-Boy 602680

Bolt-Rear Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

34

Lawn-Boy 678637

Wheel & Tire-8"
(Superseded to 131-4520)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$37.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 605795

Bracket-21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 21" Models only

$

$

Not available

35

Lawn-Boy 605805

Bracket-19"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. 19" Models only

$

$

Not available

36

Lawn-Boy 605799

Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

37

Lawn-Boy 603036

Cotter Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

38

Lawn-Boy 605797

Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$24.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 605798

Lever-Height Adj.-Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

40

Lawn-Boy 605802

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$7.99

$

In Stock, Qty 7

0

41

Lawn-Boy 603773

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 605803

Hairpin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

43

Lawn-Boy 606154

Handle-Bottom
(Superseded to 611113)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

44

Lawn-Boy 603447

Nut-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

45

Lawn-Boy 602480

Screw-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

46

Lawn-Boy 607186

Handle-Top
(Superseded to 608094)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

47

Lawn-Boy 606450

Screw-Chute Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$19.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 679289

Chute & Skirt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Currently unavailable

49

Lawn-Boy 678723

Wheel Guard Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

50

Lawn-Boy 604986

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

51

Lawn-Boy 605664

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

52

Lawn-Boy 679147

Rod & Clip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

53

Lawn-Boy 606511

Clip-Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

54

Lawn-Boy 679321

Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

55

Lawn-Boy 604227

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. NOTE: The following parts are standard equipment on Model 7020 Accessory Grass Catcher Kit 679513 can be purchased from your Lawn-Boy dealer for Models 7080 & 5020.

$

$

Not available

76

Lawn-Boy 677523

Axle & Torque Lug Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available
