5020 (2097220) - Allis-Chalmers Compact Tractor, Diesel Steering Group (3486I65) Parts Diagram

Compact Tractor, Diesel

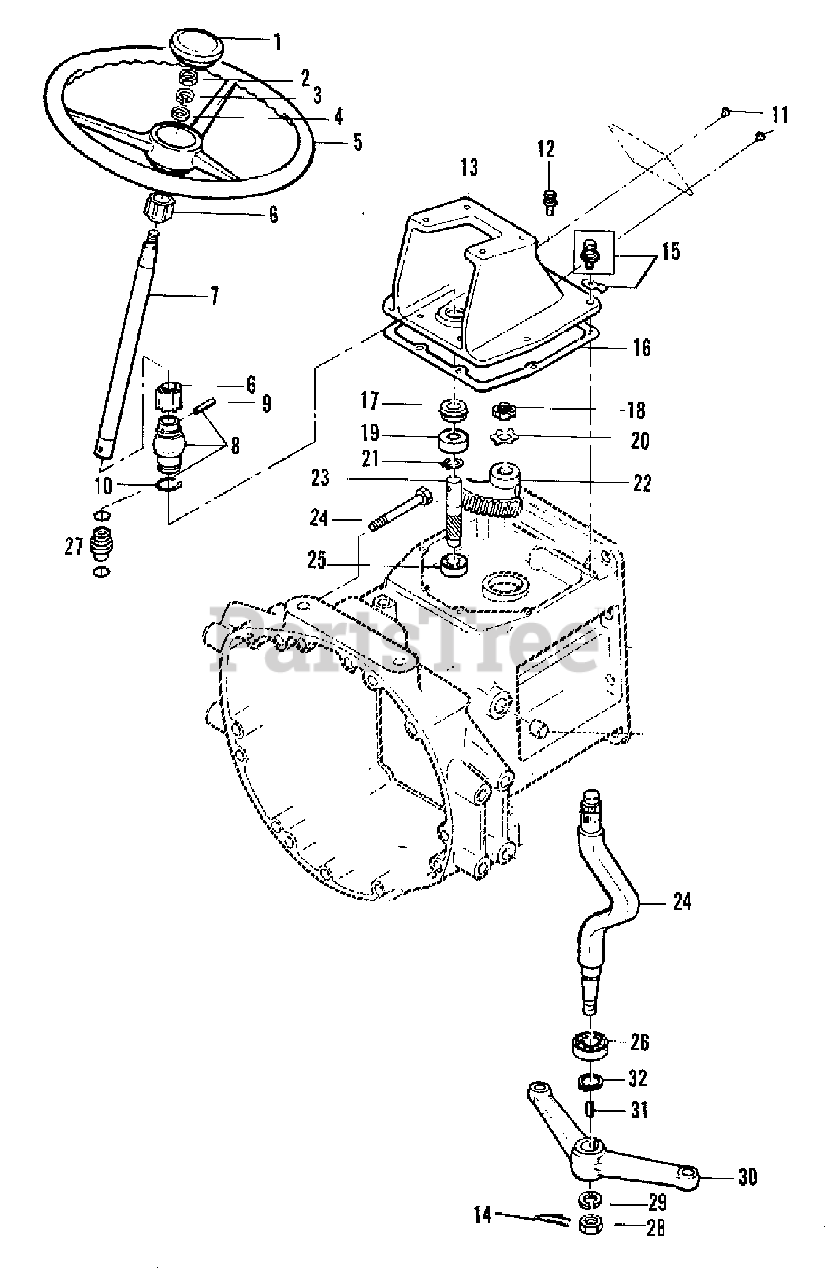

Steering Group (3486I65) Parts Diagram

  • Title
1

Simplicity 2098074

CAP, steering wheel

$

$

Not available

2

$

$

Not available

3

Simplicity 934042

LOCKWASHER, M12

$

$

Not available

$

$

Not available

5

Simplicity 2098075

WHEEL, steering

$

$

Not available

6

Simplicity 2098076

BUSHING, steering post

$

$

Not available

7

Simplicity 2098077

SHAFT, steering

$

$

Not available

8

Simplicity 2098079

UNIVERSAL JOINT ASSEMBLY (Incl. Items 8, 9 & 10)

$

$

Not available

$

$

Not available

$

$

Not available

11

Simplicity 2098081

RIVET, drive

$

$

Not available

12

$

$

Not available

13

Simplicity 2098082

BOX, joint

$

$

Not available

14

Simplicity 920117

PIN, cotter

$

$

Not available

$

$

Not available

16

$

$

Not available

17

Simplicity 2098085

SEAL, oil

$

$

Not available

$

$

Not available

19

$

$

Not available

20

$

$

Not available

21

Simplicity 934007

RING, M20 snap

$

$

Not available

22

Simplicity 2098089

GEAR, steeing

$

$

Not available

23

Simplicity 2098090

PINION, steering

$

$

Not available

$

$

Not available

25

$

$

Not available

26

$

$

Not available

27

Simplicity 2098349

SEAL, w/two rings

$

$

Not available

28

$

$

Not available

29

Simplicity 934043

LOCKWASHER, M16

$

$

Not available

30

Simplicity 2098098

ARM, pitman

$

$

Not available

$

$

Not available

32

Simplicity 934008

RING, M25, snap

$

$

Not available
