502 s - Shindaiwa Chainsaw Ignition Parts Diagram

Chainsaw

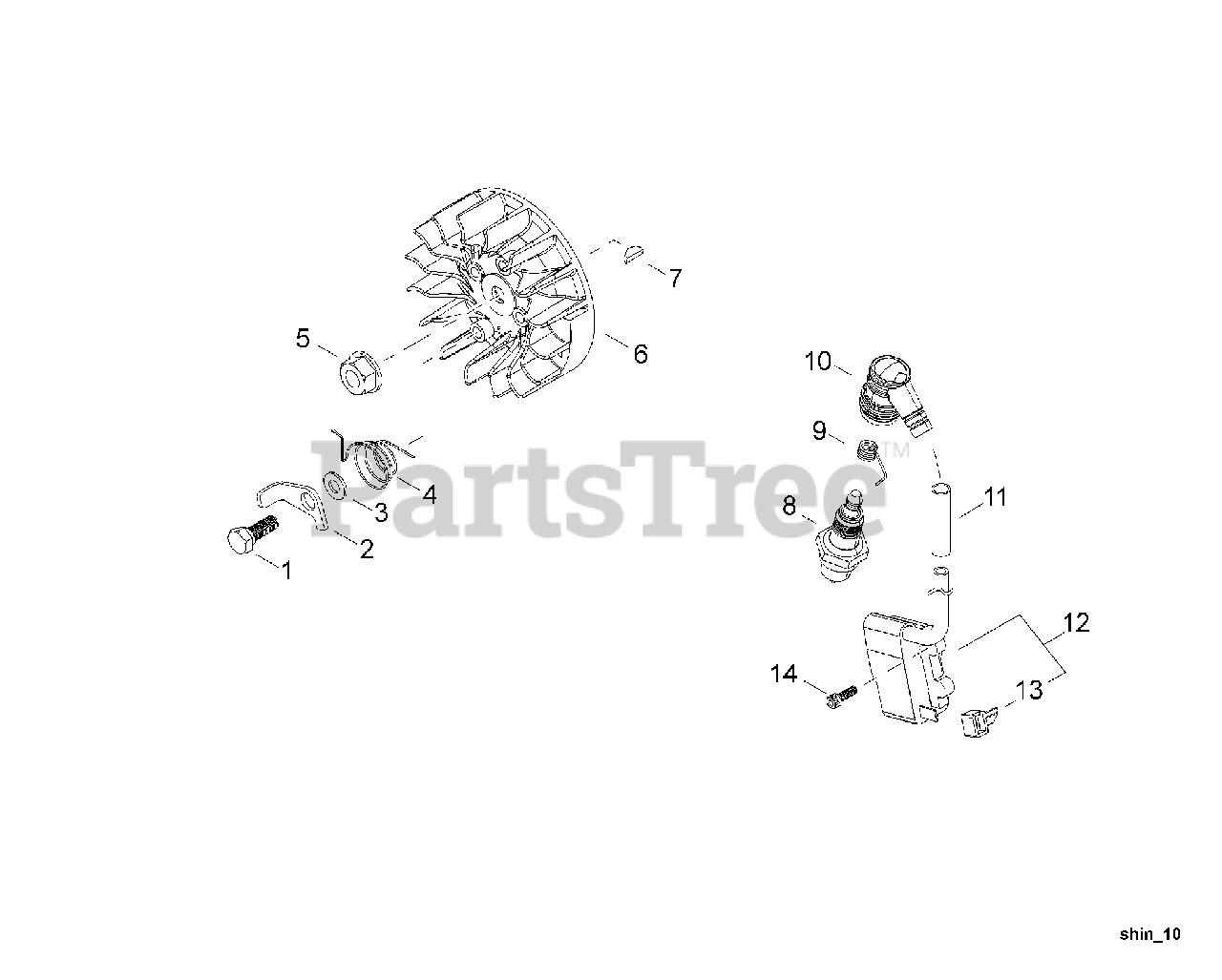

Ignition Parts Diagram

  • Title

1

Echo 22182-71440

BOLT
(Superseded to V204000620)

$1.99

$

Usually ships in 2-4 days

0

2

Echo 22182-71412

PAWL, STARTER
(Superseded to A514000220)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 22182-71430

WASHER
(Superseded to V304000270)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 22182-71421

SPRING, RETURN
(Superseded to V452000870)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 22169-71460

NUT - 8
(Superseded to V265000220)

$0.99

$

In Stock, only 2 left!

0

6

Echo 39311-71110

FLYWHEEL
(Superseded to A409000900)

$179.99

$

Usually ships in 2-4 days

0

7

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

8

Echo 1300003506

SPARK PLUG -- RCJ-6Y
(Superseded to 15901731730)

$4.99

$

In Stock, Qty 20+

0

9

Echo 22154-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000040)

$0.99

$

In Stock, Qty 7

0

10

Echo 38010-71330

CAP, SPARK PLUG
(Superseded to A427000160)

$6.49

$

Usually ships in 2-4 days

0

11

Echo 39311-71310

INSULATOR

$1.99

$

Usually ships in 2-4 days

0

12

Echo 39311-71360

IGNITION COIL ASSY
(Superseded to A411001040)

Note: Includes ITEM 13

$129.99

$

Usually ships in 2-4 days

0

13

Echo 39311-71320

COVER, TERMINAL
(Superseded to Discontinued)

$

$

Not available

14

Echo 11060-04202

SCREW - 4X20
(Superseded to V202000540)

$0.99

$

Usually ships in 2-4 days

0
