502 s - Shindaiwa Chainsaw Crankcase C Parts Diagram

Chainsaw

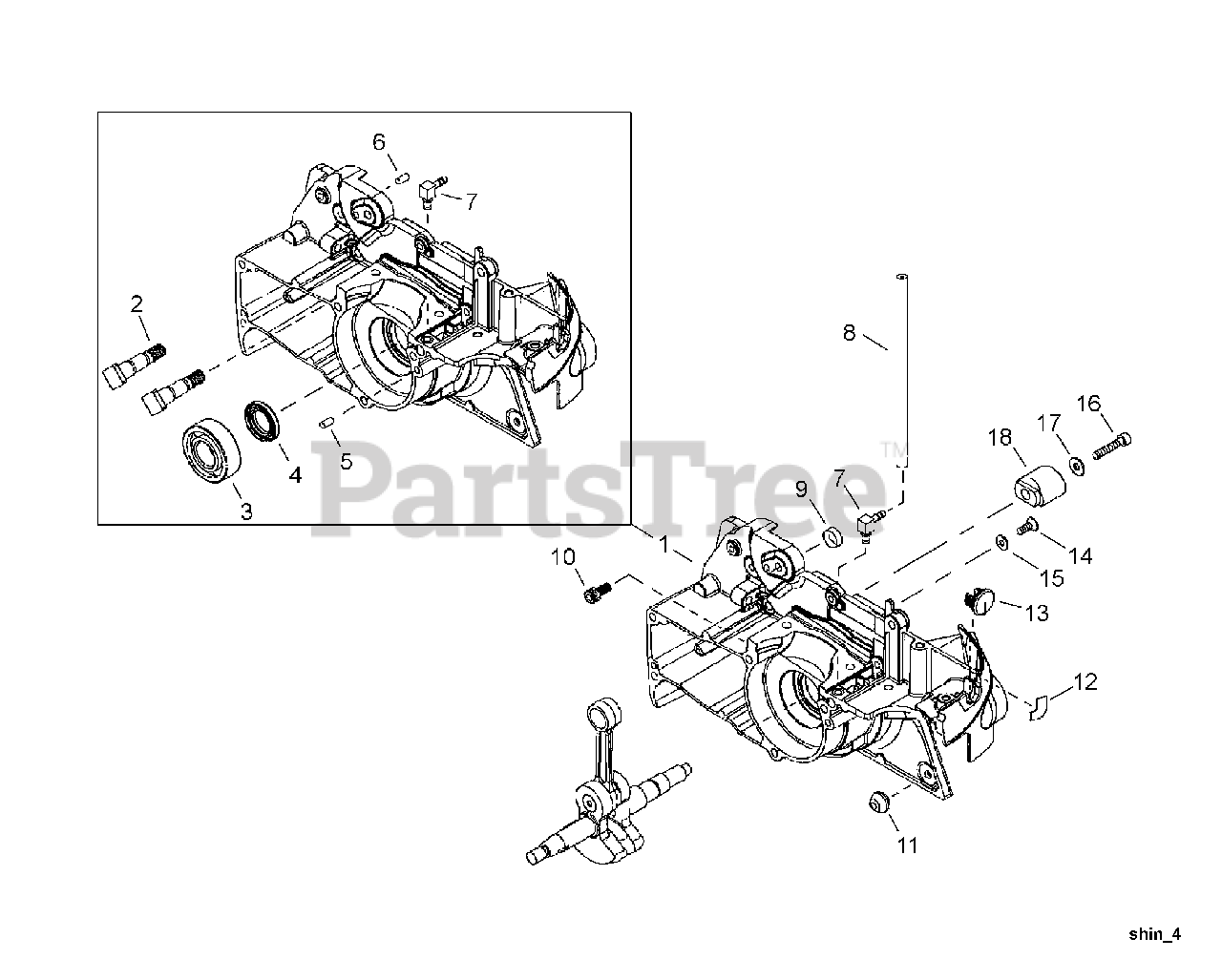

Crankcase C Parts Diagram

  • Title

1

Echo 69033-21020

CRANKCASE ASSY - RIGHT
(Superseded to P021029900)

$146.99

$

Usually ships in 2-4 days

0

2

Echo 22160-21520

STUD, GUIDE BAR
(Superseded to V225000150)

$2.99

$

In Stock, only 2 left!

0

3

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

4

Echo 12310-12003

SEAL, OIL

$

$

Currently unavailable

5

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

6

Echo 12492-40110

PIN - LOCATING
(Superseded to V629000000)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 39010-11020

PULSE JOINT
(Superseded to 43723914730)

$7.99

$

Usually ships in 2-4 days

0

8

Echo 39010-11050

PULSE TUBE
(Superseded to V471002800)

$8.99

$

Usually ships in 2-4 days

0

9

Echo 39311-21360

RING
(Superseded to V355000460)

$0.99

$

In Stock, only 1 left!

0

10

Echo 11060-05124

SCREW - 5X12
(Superseded to V203002030)

$

$

Not available

11

Echo 22182-21621

SUPPORT C
(Superseded to V420002770)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 39054-83310

GROMMET

$

$

Not available

13

Echo 39054-21320

PLUG
(Superseded to V141000100)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 01201-04080

SCREW - 4X8
(Superseded to 90021204008)

$0.99

$

In Stock, Qty 8

0

15

Echo 01613-04080

WASHER - 4
(Superseded to 90060300004)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 22155-12190

BOLT - 5X25
(Superseded to V203001460)

$1.99

$

In Stock, only 3 left!

0

17

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 22160-52511

CATCHER, CHAIN
(Superseded to C310000080)

$2.49

$

In Stock, only 2 left!

0
