502 s - Shindaiwa Chainsaw Carburetor -- WT-767 Parts Diagram

Chainsaw

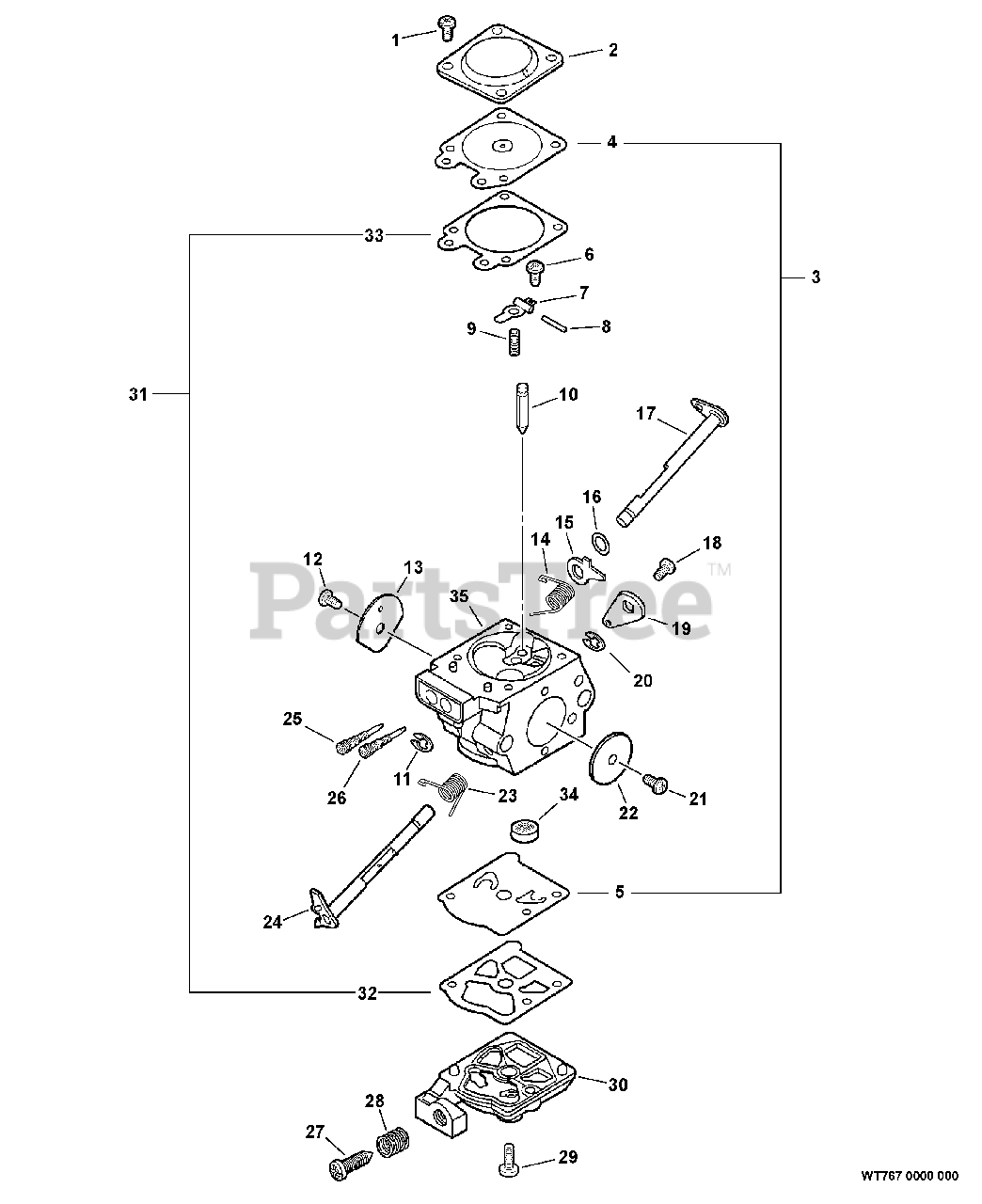

Carburetor -- WT-767 Parts Diagram

  • Title

Echo A021003100

CARBURETOR WT-767

$74.99

$

Usually ships in 2-4 days

0

1

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

Usually ships in 2-4 days

0

2

Echo 22100-81280

COVER, DIAPHRAGM
(Superseded to 12314203930)

$3.99

$

In Stock, only 1 left!

0

3

Echo 39067-98340

DIAPHRAGM KIT
(Superseded to P050010420)

Note: INCLUDES ITEMS 4-5

$12.99

$

Usually ships in 2-4 days

0

4

Echo 37145-81320

DIAPHRAGM, METERING
(Superseded to P003001850)

$7.99

$

In Stock, only 1 left!

0

5

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$5.99

$

In Stock, only 2 left!

0

6

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$1.49

$

In Stock, only 1 left!

0

7

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

8

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

9

Echo 72342-81270

SPRING, METERING LEVER
(Superseded to 12312203660)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

11

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, only 2 left!

0

12

Echo 20803-81150

SCREW
(Superseded to 12311438830)

$1.49

$

In Stock, Qty 13

0

13

Echo 22156-81710

VALVE, CHOKE
(Superseded to 12313237330)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 39067-81390

ROD, CHOKE
(Superseded to P003001470)

$3.49

$

Usually ships in 2-4 days

0

15

Echo 39067-81410

LEVER, FAST IDLE
(Superseded to P003001510)

$

$

Not available

16

Echo 20036-81185

WASHER
(Superseded to 12314926030)

$0.99

$

In Stock, only 1 left!

0

17

Echo 22180-81740

SHAFT, CHOKE
(Superseded to P003003190)

$24.99

$

Usually ships in 2-4 days

0

18

Echo 20803-81150

SCREW
(Superseded to 12311438830)

$1.49

$

In Stock, Qty 13

0

19

Echo 22180-81380

LEVER, THROTTLE
(Superseded to P003003180)

$7.99

$

Usually ships in 2-4 days

0

20

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, only 2 left!

0

21

Echo 20803-81150

SCREW
(Superseded to 12311438830)

$1.49

$

In Stock, Qty 13

0

22

Echo 22197-81340

VALVE, THROTTLE
(Superseded to P003003240)

$2.99

$

Usually ships in 2-4 days

0

23

Echo 72320-81420

SPRING, THROTTLE RETURN
(Superseded to 12311337530)

$2.99

$

Usually ships in 2-4 days

0

24

Echo 69018-81310

SHAFT, THROTTLE
(Superseded to P003000480)

$5.49

$

Usually ships in 2-4 days

0

25

Echo 69024-81330

NEEDLE - HIGH SPEED

$15.99

$

Usually ships in 2-4 days

0

26

Echo 69024-81320

NEEDLE - LOW SPEED

$19.99

$

Usually ships in 2-4 days

0

27

Echo 72320-81410

SCREW, IDLE ADJUST
(Superseded to P003003650)

$6.49

$

Usually ships in 2-4 days

0

28

Echo 22156-81420

SPRING
(Superseded to 12313304260)

$6.49

$

In Stock, Qty 15

0

29

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

$0.99

$

In Stock, only 1 left!

0

30

Echo 39010-81320

PUMP COVER ASSY
(Superseded to P003003360)

$14.99

$

Usually ships in 2-4 days

0

31

Echo 22128-81920

GASKET KIT
(Superseded to V109000200)

Note: INCLUDES ITEMS 32-33

$9.49

$

Usually ships in 2-4 days

0

32

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$2.49

$

In Stock, Qty 9

0

33

Echo 22100-81290

GASKET, METERING
(Superseded to 12314003930)

$1.99

$

In Stock, Qty 5

0

34

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

35

------------------

BODY, CARBURETOR

$

$

Not available
