502 H - Husqvarna Automower Robotic Lawn Mower (2021-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

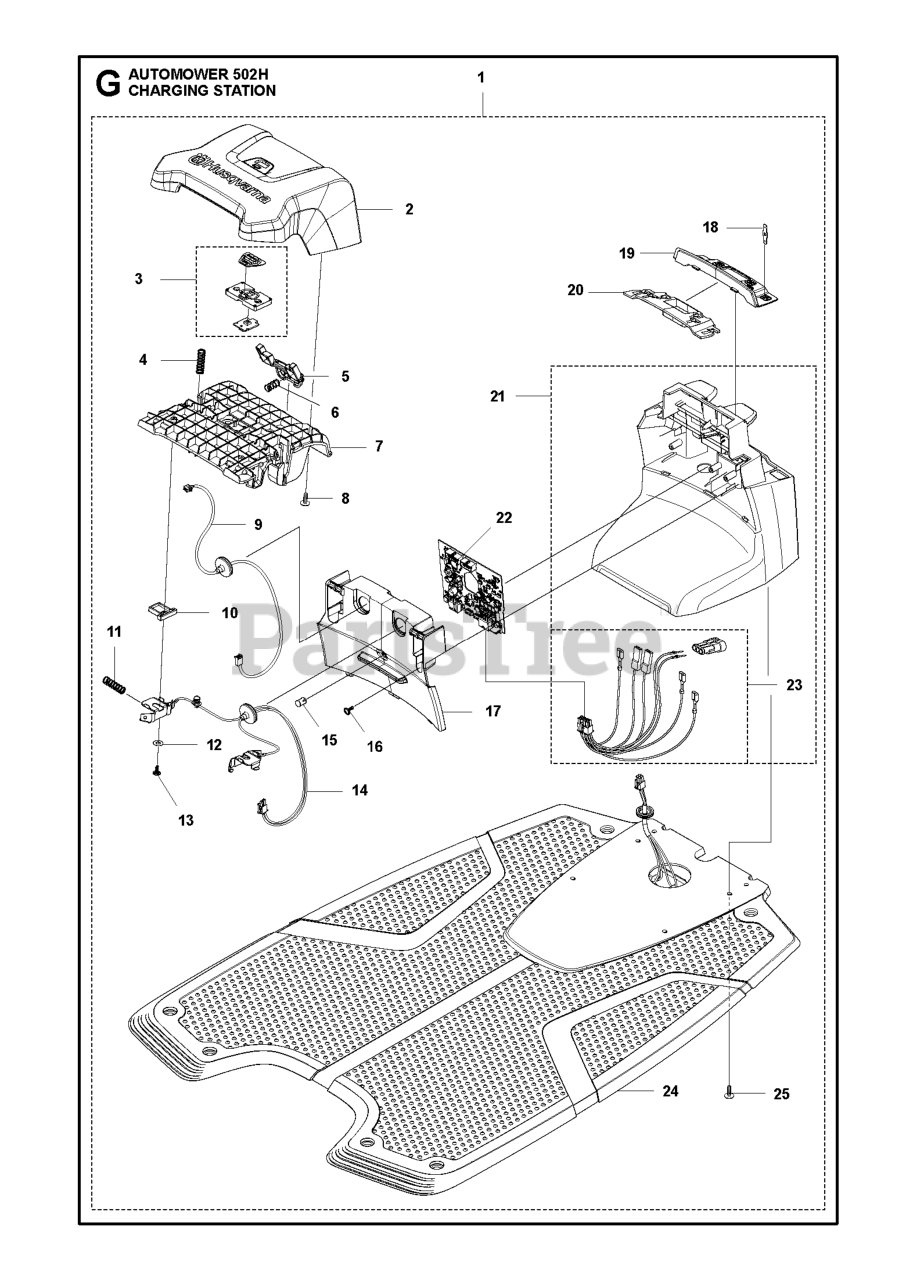

CHARGING STATION Parts Diagram

  • Title

22

Husqvarna 596328001

PRINTED CIRCUIT ASSY P2 CHARGI

Note: PCBA Charging Station

$

$

Not available

25

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

19

Husqvarna 579459802

PANEL CHARGING STATION 330, TW

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 588478901

CABLE KIT GENERATOR BOARD

Note: Wiring CS

$

$

Not available

15

Husqvarna 590217201

LENS DIODE

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 580511401

SPRING SPRING CAP

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596496701

HOUSING ASSY CHARGING STATION

$136.99

$

Usually ships in 3-10 days

0

14

Husqvarna 585539502

CABLE ASSY CHARGING CONTACTS

Note: Loom Charging Contact

$54.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596537501

CHARGING STATION UNIVER HI-CUT

Note: Universal High-Cut

$455.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

$9.49

$

In Stock, only 4 left!

0

20

Husqvarna 579459901

HOLDER CHARGING STATION

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579708301

LOOM HOME BUTTON

Note: Home Button Wiring

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580511401

SPRING SPRING CAP

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579448204

CAP CHARGING STATION WITHOUT H

Note: With Park Button

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501065901

BUTTON KIT HOME

Note: Home Button Kit

$42.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579458004

FRAME CHARGING STATION

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574487001

SPRING STOP BUTTON

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 579459703

LID CHARGING STATION 330, TWO

Note: 2 holes

$20.99

$

Usually ships in 3-10 days

0

24

Husqvarna 590094001

BASE ASSY CHARGING STATION

Note: Charging Plate

$148.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button-Release

$5.99

$

Usually ships in 3-10 days

0
