5018 - Troy-Bilt Trailblazer II Sicklebar Mower (SN: P100985 -P101640) Cutter Bar Parts Diagram

Trailblazer II Sicklebar Mower

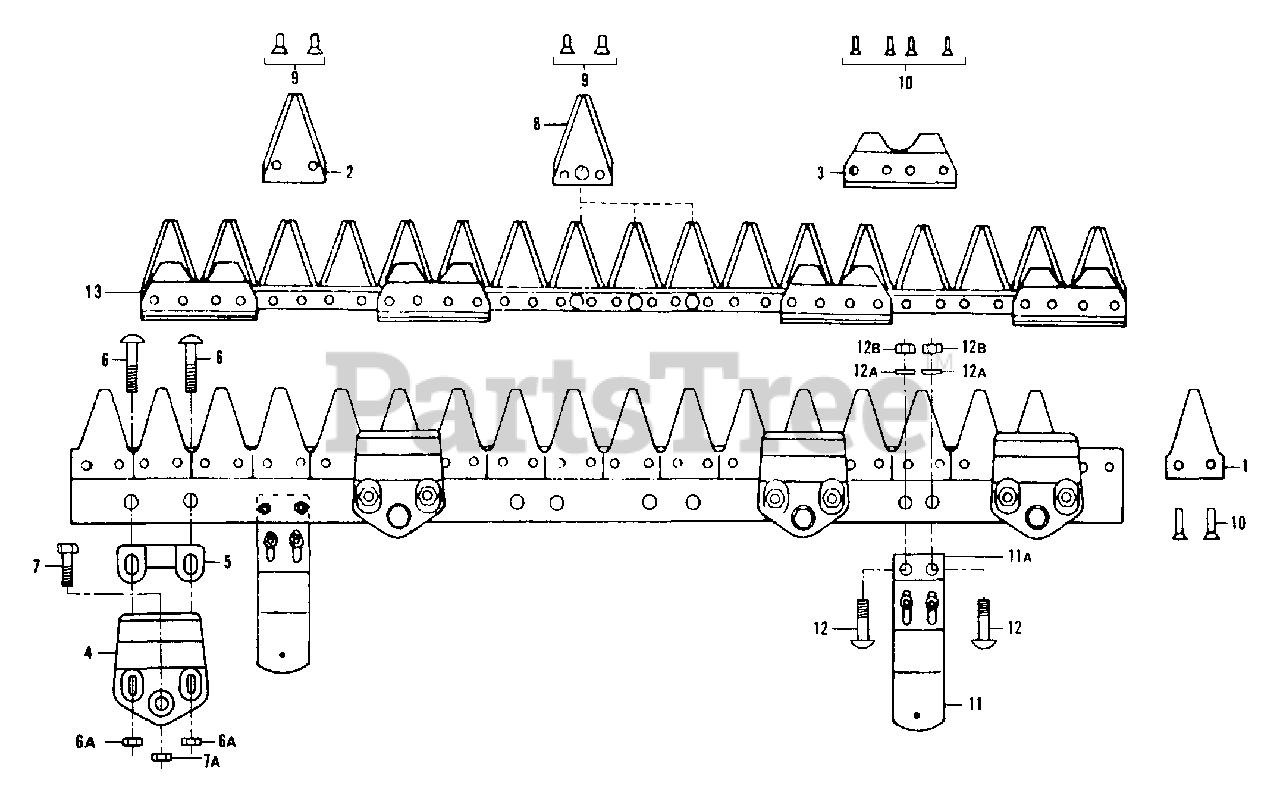

Cutter Bar Parts Diagram

  • Title
1

MTD GW-P406655

Blade Section

$

$

Not available

2

MTD GW-P406657

Blade Section-2 Holes

$

$

Not available

3

$

$

Not available

4

Troy-Bilt GW-P406654

Blade Guide

$63.99

$

In Stock, Qty 6

0

$

$

Not available

6

MTD GW-P406676

Bolt M8 x 40

$

$

Not available

6A

Troy-Bilt GW-P406904

Nut
(Superseded to 712-3077)

$

$

Not available

7

Troy-Bilt GW-P406674

Bolt HHM8 x 30

$

$

Currently unavailable

7A

Nylon Nut

$

$

Not available

8

MTD GW-P406658

Blade Section-3 Holes

$

$

Not available

9

Troy-Bilt GW-P404962

Rivets CS90 5.3 x 14
(Superseded to GW-P404962099)

$3.49

$

In Stock, only 1 left!

0

10

MTD GW-P404964

Rivets CS90 5.3 x 16

$

$

Not available

11

Troy-Bilt GW-P406935

Height Adjuster (Rear Half)

$

$

Currently unavailable

11A

Troy-Bilt GW-P406934

Height Adjuster (Forward Half)

$

$

Currently unavailable

12

MTD GW-P406905

Bolt M8 x 25

$

$

Not available

12A

Troy-Bilt GW-P406745

Washer
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

12B

$

$

Not available

13

Troy-Bilt GW-P406663

Complete Cutter Blade Assembly

$

$

Currently unavailable
