5018 - Troy-Bilt Trailblazer I Sicklebar Mower (SN: P100000 - P100984) Cutter Bar Parts Diagram

Trailblazer I Sicklebar Mower

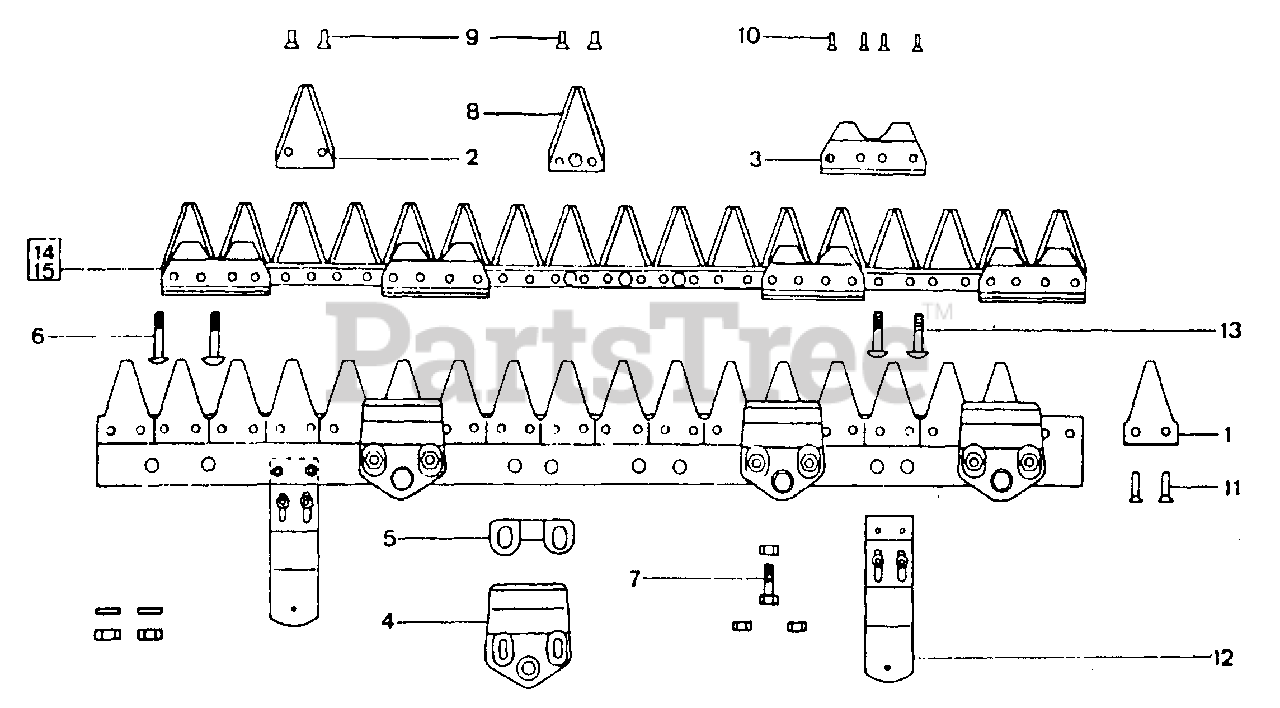

Cutter Bar Parts Diagram

  • Title
1

MTD GW-P406655

Blade Section

$

$

Not available

2

MTD GW-P406657

Blade Section - 2 Holes

$

$

Not available

3

$

$

Not available

4

Troy-Bilt GW-P406654

Blade Guide

$63.99

$

In Stock, Qty 6

0

$

$

Not available

6

MTD GW-P406676

Bolt M8 x 40 & Nut

$

$

Not available

7

Troy-Bilt GW-P406674

Bolt HM8 x 30 & Nylstop Nut

$

$

Currently unavailable

8

MTD GW-P406658

Blade Sections - 3 Holes

$

$

Not available

9

Troy-Bilt GW-P404962

Rivets CS90 5.3 x 14
(Superseded to GW-P404962099)

$3.49

$

In Stock, only 1 left!

0

10

MTD GW-P404964

Rivets CS90 5.3 x 16

$

$

Not available

12

Troy-Bilt GW-P406673

Height Adjusters

$

$

Currently unavailable

13

MTD GW-P406331

Bolt M8 x 25 & Washer

$

$

Not available

15

Troy-Bilt GW-P406663

Complete Cutter Blade Assembly

$

$

Currently unavailable
