50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) TINE ASSEMBLY Parts Diagram

Junior II Rear-Tine Tiller

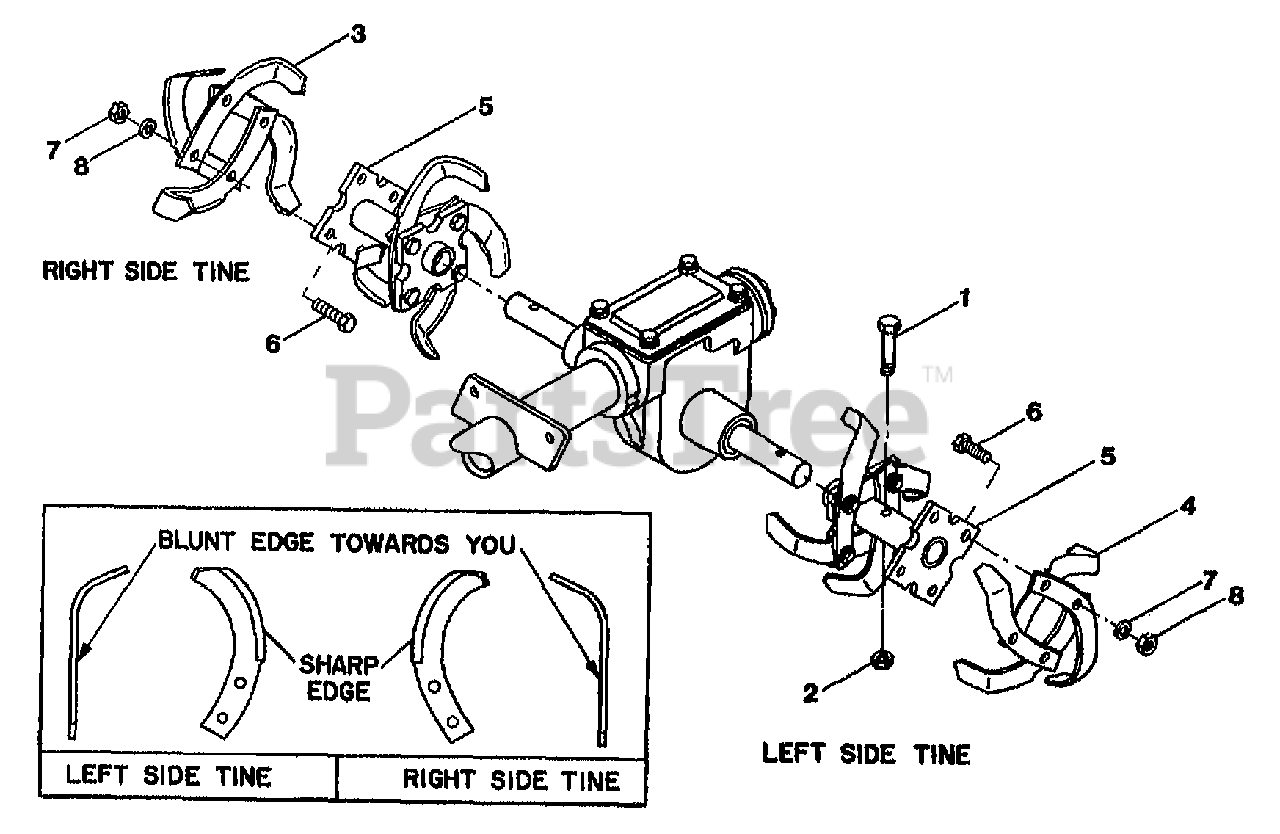

TINE ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1900

KIT-TINE&HOLDER, Complete, both sides

Note: (Inc. 1-8 assembled)

$

$

Currently unavailable

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY
(Superseded to GW-1901)

Note: (Inc. 3, 4, 6, 7, 8.)

$

$

Not available

1

MTD 9555

BOLT-HH 3/8-16X1.75 G8 ZP

$

$

Not available

2

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

3

Troy-Bilt 50049-01

TINE-BOLO RIGHT
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 50049-02

TINE-BOLO LEFT
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

5

MTD 50046

TINE HOLDER-WELD

$

$

Not available

6

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

7

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

8

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable
