50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) HANDLE BARS, SHIFT & THROTTLE Parts Diagram

Junior II Rear-Tine Tiller

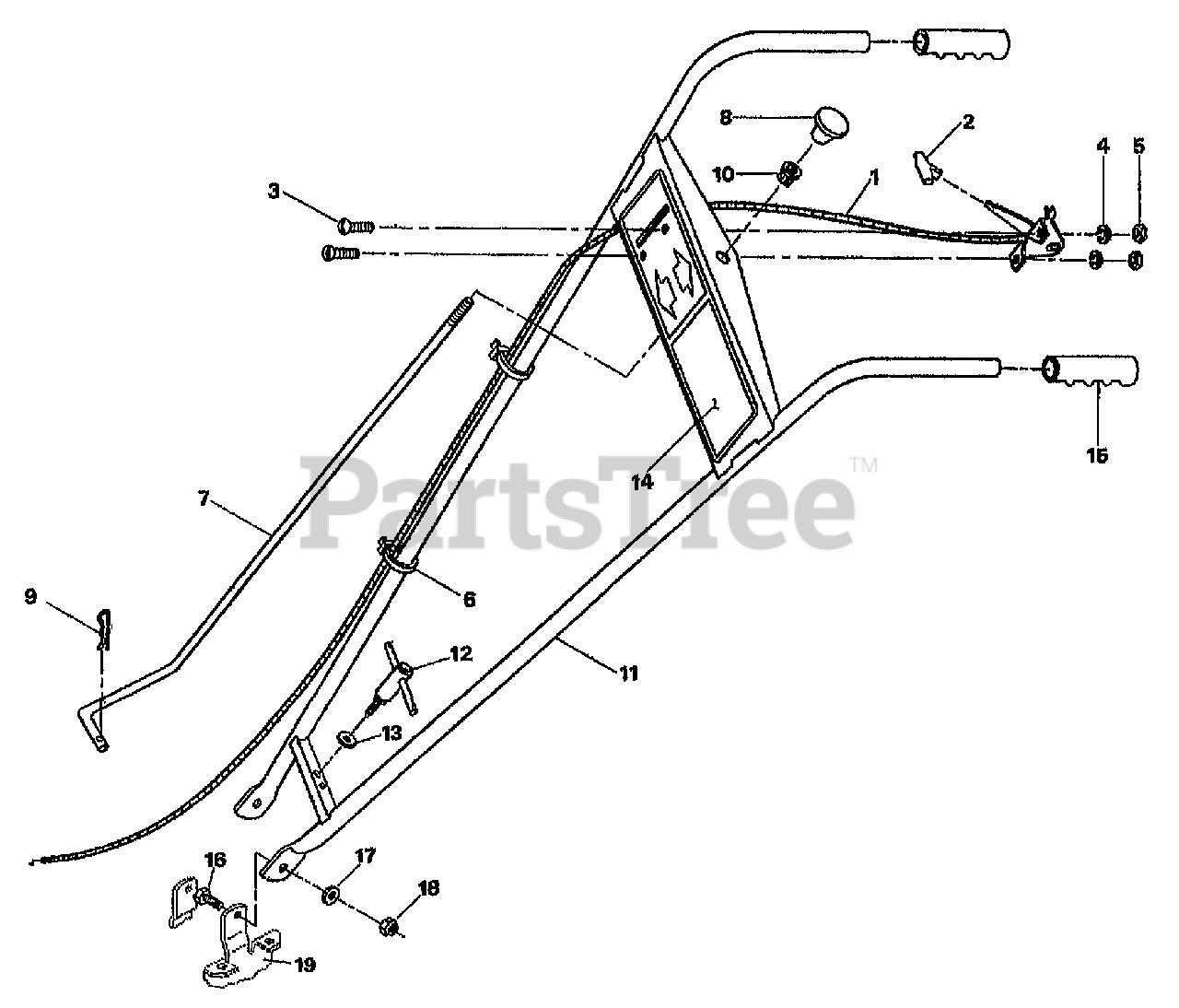

HANDLE BARS, SHIFT & THROTTLE Parts Diagram

  • Title
1

MTD 50118

CABLE-THROTTLE & KNOB (Inc. 2)

$

$

Not available

2

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

4

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

5

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

6

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

Troy-Bilt 50170

ASSM-DR CONTROL ROD (Inc. #7 & 8)

$

$

Currently unavailable

7

Troy-Bilt 50154

ASSM-DR CONTROL ROD

$

$

Currently unavailable

8

Troy-Bilt 9208

KNOB-DRIVE CNTRL ROD

$

$

Currently unavailable

9

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

10

Troy-Bilt 9211

GROMMET-PLASTIC

$

$

Currently unavailable

11

Troy-Bilt 50181

ASSM-HANDLEBAR (Inc. 12-14 & 2 #15)

$

$

Currently unavailable

12

Troy-Bilt 50062

ASSM-CLAMP

$

$

Currently unavailable

13

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

13

Troy-Bilt 50061

WASHER-TAB 3/8" (Used on S/N M0008204- M0030389 Only)

$

$

Currently unavailable

14

Troy-Bilt 50194

DECAL-CONTROL PANEL (Operating Instructions)

$

$

Currently unavailable

15

Troy-Bilt 9471

GRIPS-HANDLEBAR

$

$

Currently unavailable

16

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

17

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

18

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 50136

ENGINE with HANDLEBAR MOUNTING BRACKET

$

$

Currently unavailable
