50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) DRIVE & WHEEL SHAFT ASSEMBLIES Parts Diagram

Junior II Rear-Tine Tiller

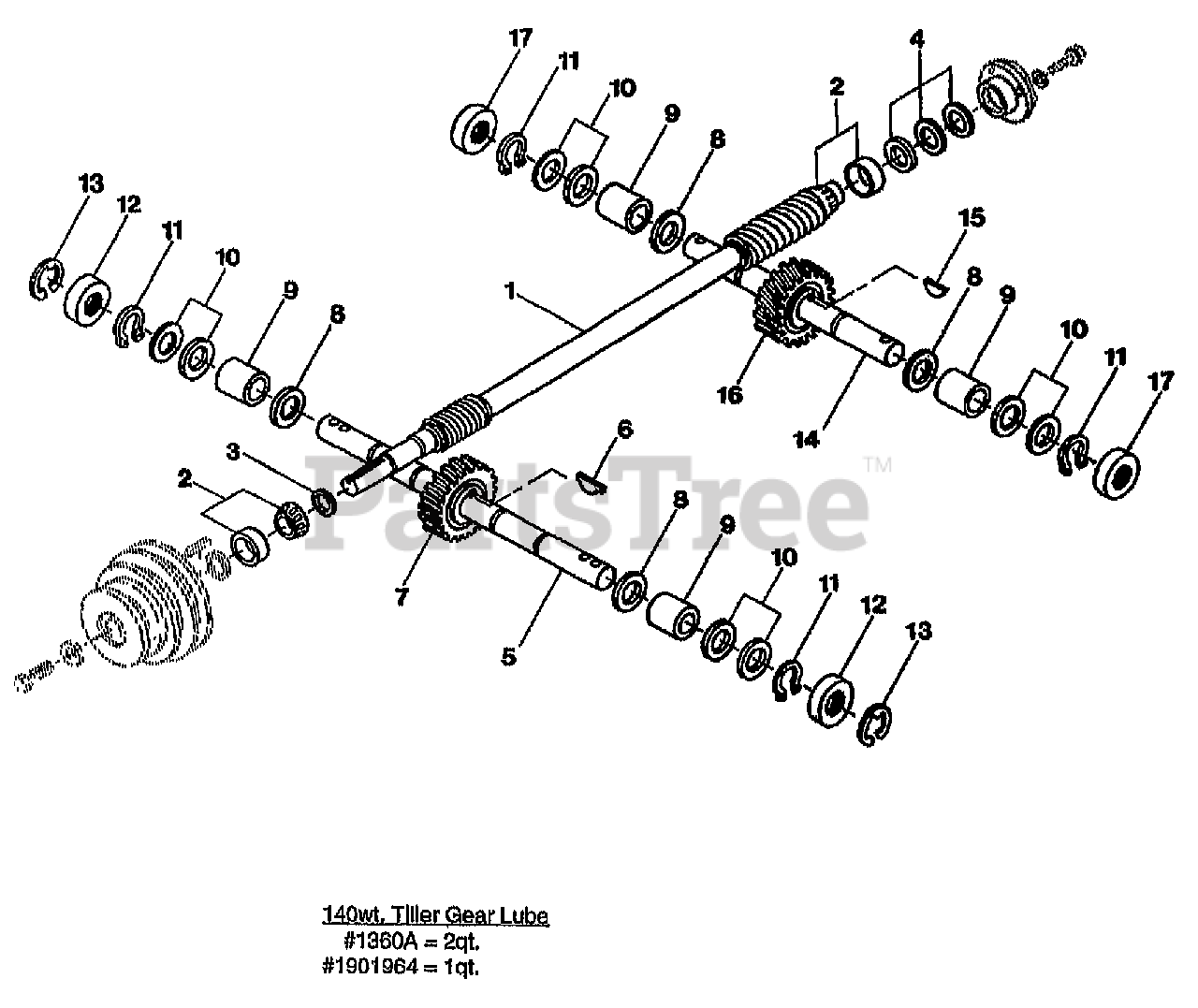

DRIVE & WHEEL SHAFT ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt 50165

DRIVESHAFT W/BRG-IW (With Rear Bearing Cone pressed on.)

$

$

Currently unavailable

2

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

3

Troy-Bilt 50043

WASHER-#1.25X.75X.06 (Drive Shaft)
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 1325C

SHIM SET-DRIVESHAFT-HORSE
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 50105

WHEELSHAFT-W/KEY

$

$

Currently unavailable

6

Troy-Bilt 9305

KEY-HI PRO .25X1.062
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 50041

GEAR-WORM 61 TEETH MACH (Wheel Shaft)

$

$

Currently unavailable

8

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 6

0

10

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

10

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 9512

RING-RETAINING 5133-989 (External)
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 50104

TILLERSHAFT-W/KEY

$

$

Currently unavailable

15

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

16

MTD 50042

GEAR-WORM BRONZE MACH

$

$

Not available

8

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 6

0

10

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

10

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 9613

SEAL-OIL TRIPLE LIP

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
