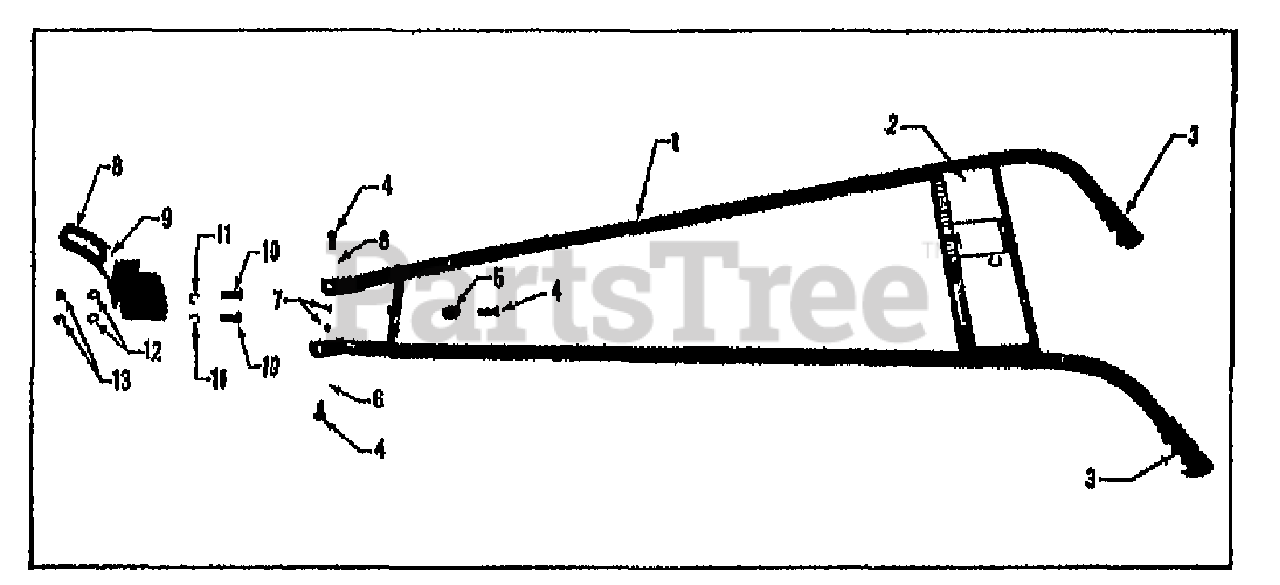

5017 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) HANDLE BAR Parts Diagram

Front-Tine Mini-Tiller

HANDLE BAR Parts Diagram

  • Title

1

Troy-Bilt 60112

ASSM-HANDLEBAR CULT (INCL. 60151 & 9471)

$

$

Currently unavailable

2

Troy-Bilt 60151

DECAL-CONTROL PANEL

$

$

Currently unavailable

3

Troy-Bilt 9471

GRIPS-HANDLEBAR

$

$

Currently unavailable

4

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP (HANDLEBAR HEIGHT ADJ. ALSO MOUNTS HANDLEBAR TO CHASSIS)
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 9941

WASHER-#1.75X.625X.120

$

$

Currently unavailable

6

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

7

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 60113

PLATE-H/B ADJ W/DECAL #60075

$

$

Currently unavailable

9

Troy-Bilt 60075

DECAL-HANDLEBAR ADJUST

$

$

Currently unavailable

10

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP (ATTACHES HANDLE- BAR HEIGHT ADJ. PLATE TO CHASSIS)
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

12

MTD 9948

WASHER-.734X.375X.065 ZP
(Superseded to 690-239-0001)

$

$

Not available

13

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
